ASUS ROG MAXIMUS Z790 DARK HERO Intel Z790 LGA 1700 Raptor Lake Refresh DDR5 ATX Desktop Motherboard
ASUS ROG MAXIMUS Z790 DARK HERO Intel Z790 LGA 1700 Raptor Lake Refresh DDR5 ATX Desktop Motherboard
Regular price
R 19,749.00
Regular price
Sale price
R 19,749.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | ROG Series |
| Model | ROG MAXIMUS Z790 DARK HERO |
| CPU Support | Supports Intel 12th, 13th, 14th Gen Processors |
| Chipset | Intel Z790 Chipset |
| Memory Support | |
| Intel Z790 Chipset | 4x DIMM slots, max. 192GB, DDR5-8000 (OC)/7800 (OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz Non-ECC, Un-buffered Memory |
| Dual channel memory architecture | |
| Supports Intel Extreme Memory Profile (XMP) memory module | |
| ASUS Enhanced Memory Profile II (AEMP II) | |
| Video | |
| HDMI | 1x HDMI 2.1 port, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDMI 2.1 version, HDCP 2.3, and HDR |
| Thunderbolt | 2x Thunderbolt 4 ports supporting DisplayPort 1.4, supporting a maximum resolution of UHD 4K 3840x2160 @ 60Hz, Support for HDCP 2.3, and HDR |
| Integrated graphics required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 2x PCIe 5.0 x16 Physical, x16 Electrical Slots |
| Intel Z790 Chipset | 1x PCIe 4.0 x4 Physical, x4 Electrical Slot |
| Storage | |
| CPU Direct | M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode.) |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode.) | |
| Intel Z790 Chipset | M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
| M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode) | |
| 4x SATA 6Gb/s ports | |
| Intel Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10. | |
| NOTE: M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled. | |
| Networking | |
| LAN | Intel 2.5 Gigabit LAN 10/100/1000/2500Mbps |
| WiFi | WiFi 7 2x2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.4 (Windows 10 supports up to Bluetooth 5.2) |
| Audio | |
| Codec | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| Impedance sense for front and rear headphone outputs | |
| Internal audio Amplifier for headphone and speakers | |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in) | |
| Supports up to 32-Bit/192 kHz playback (not supported for 7.1 surround) | |
| Audio Features | SupremeFX Shielding Technology |
| ESS ES9218 QUAD DAC | |
| Gold-plated audio jacks | |
| Rear optical S/PDIF out port | |
| Premium audio capacitors | |
| NOTE: The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. | |

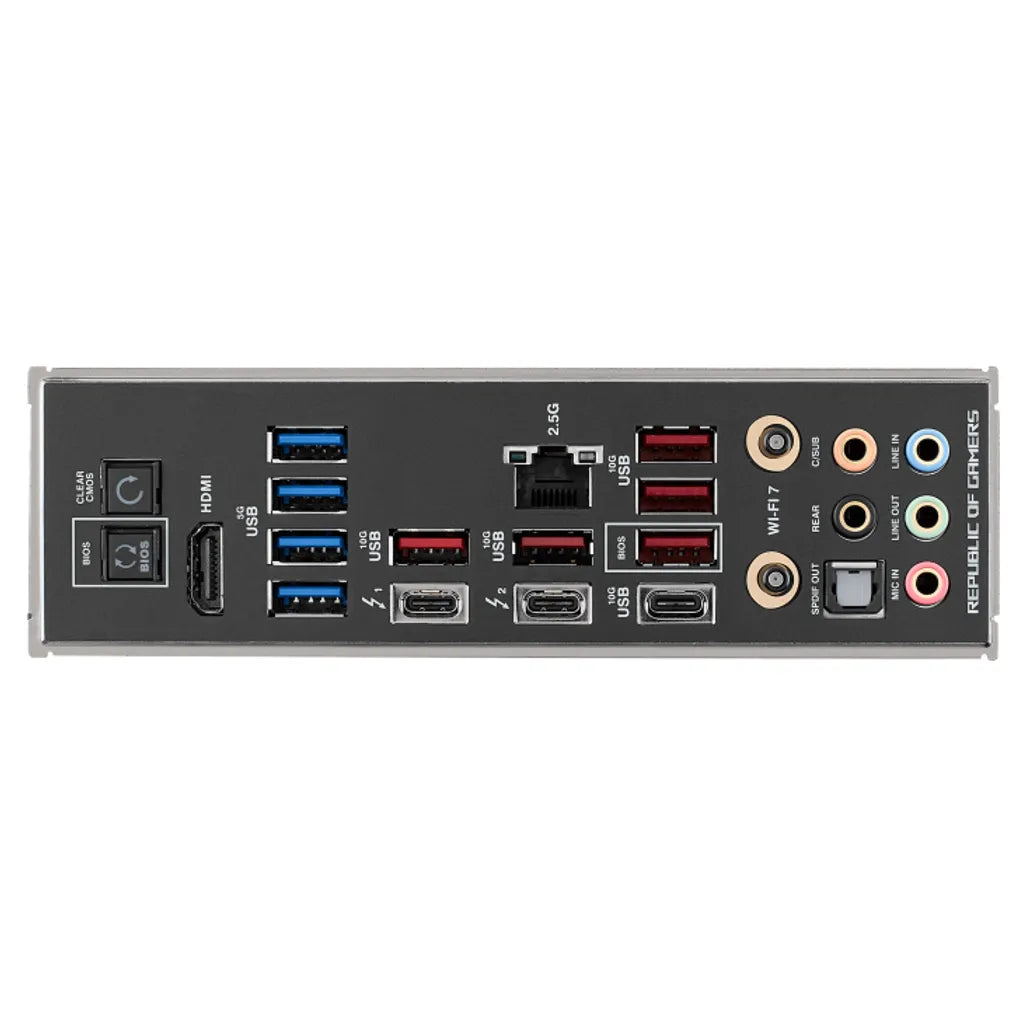

| Connectivity | |
| Ports | 2x Thunderbolt 4 USB Type-C Ports |
| 1x USB 10Gbps Type-C Port | |
| 5x USB 10Gb/s Type-A Ports | |
| 4x USB 5Gb/s Type-A Ports | |
| 1x HDMI 2.1 Port | |
| 2x SMA Wireless Connectors | |
| 5x 3.5mm Audio Jacks Support Surround Sound | |
| 1x S/PDIF Optical Out | |
| 1x Intel 2.5 Gigabit Ethernet RJ-45 LAN Port< | |
| 1x BIOS FlashBack button | |
| 1x Clear CMOS button | |
| General | |
| Internal Connectors | 1x 4-pin CPU Fan header |
| 1x 4-pin CPU OPT Fan header | |
| 1x 4-pin AIO Pump header | |
| 4x 4-pin Chassis Fan headers | |
| 1x W_PUMP header | |
| 1x 2-pin Water In header | |
| 1x 2-pin Water Out header | |
| 1x 3-pin Water Flow header | |
| 1x 24-pin main power connector | |
| 2x 8-pin 12V power connector | |
| 1x 8-pin PCIe power connector | |
| 5x M.2 slots (Key M) | |
| 4x SATA 6Gb/s ports | |
| 1x USB 20Gbps connector (supports USB Type-C) | |
| 2x USB 5Gbps headers support 4 additional USB 5Gbps ports | |
| 2x USB 2.0 headers support 4 additional USB 2.0 ports | |
| 3x Addressable Gen 2 headers | |
| 1x AURA RGB header | |
| 1x FlexKey button | |
| 1x Front panel audio header (F_AUDIO) | |
| 1x Start button | |
| 1x ReTry button | |
| 1x 10-1 pin system panel header | |
| 1x Thermal sensor header | |
| 1x CPU over voltage jumper | |
| 1x Alternative PCIe mode switch | |
| Buttons | BIOS Flashback button, Clear CMOS button |
| LEDs | ASUS Q-CODE 7-Segment POST Code Display |
| BIOS | 256Mbit Flash ROM |
| Use of licensed AMI UEFI BIOS | |
| Remote Management | WOL by PME, PXE |
| Form Factor | ATX Form Factor, 305 x 244 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Boxed Accessories | 1x ARGB RGB extension cable |
| 4x SATA 6Gb/s cables | |
| 1x Thermal pad for M.2 | |
| 1x DDR5 fan holder | |
| 1x ASUS WiFi Q-Antenna | |
| 3x M.2 backplate Q-Latch packages | |
| 3x M.2 backplate Rubber Packages | |
| 1x Q-connector | |
| 1x ROG stickers | |
| 1x ROG key chain | |
| 1x M.2 rubber package | |
| 1x ROG VIP card | |
| 1x USB drive with utilities and drivers | |
| 1x Quick start guide | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
