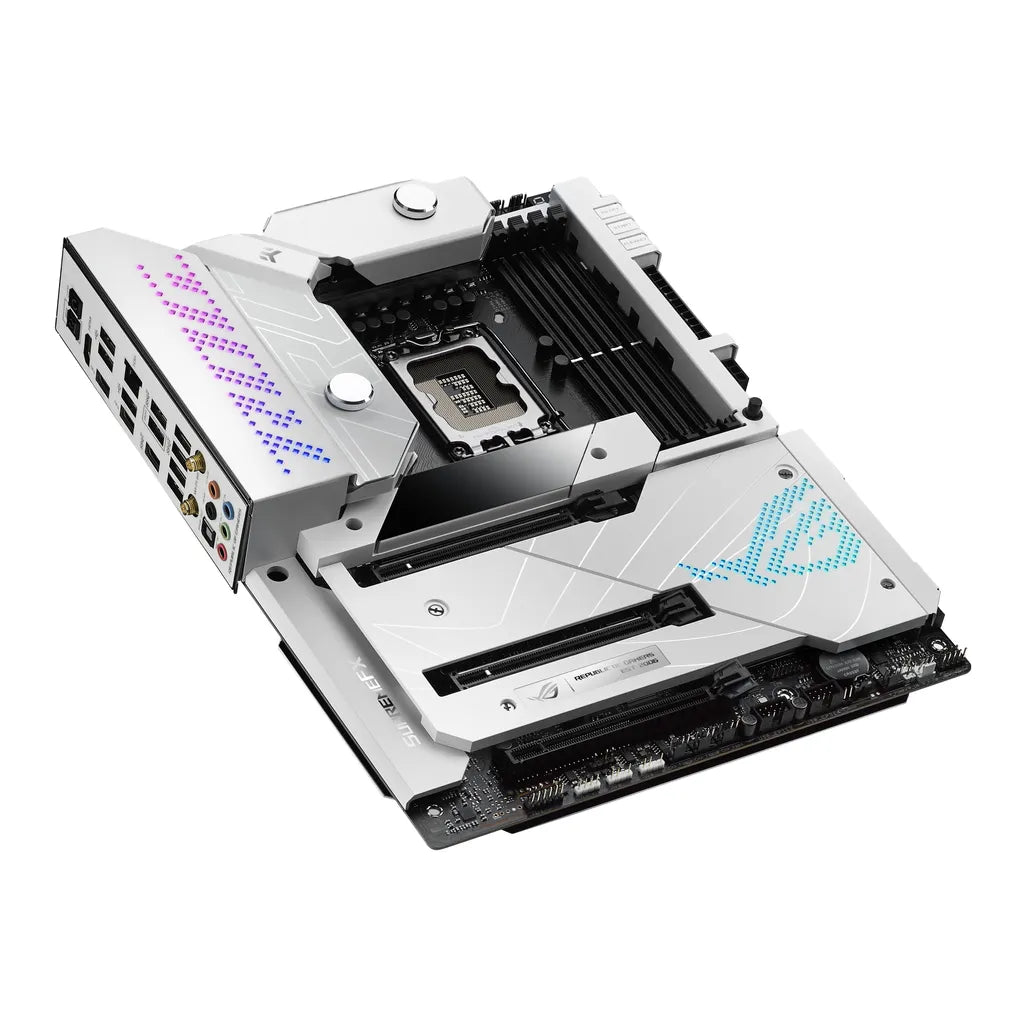

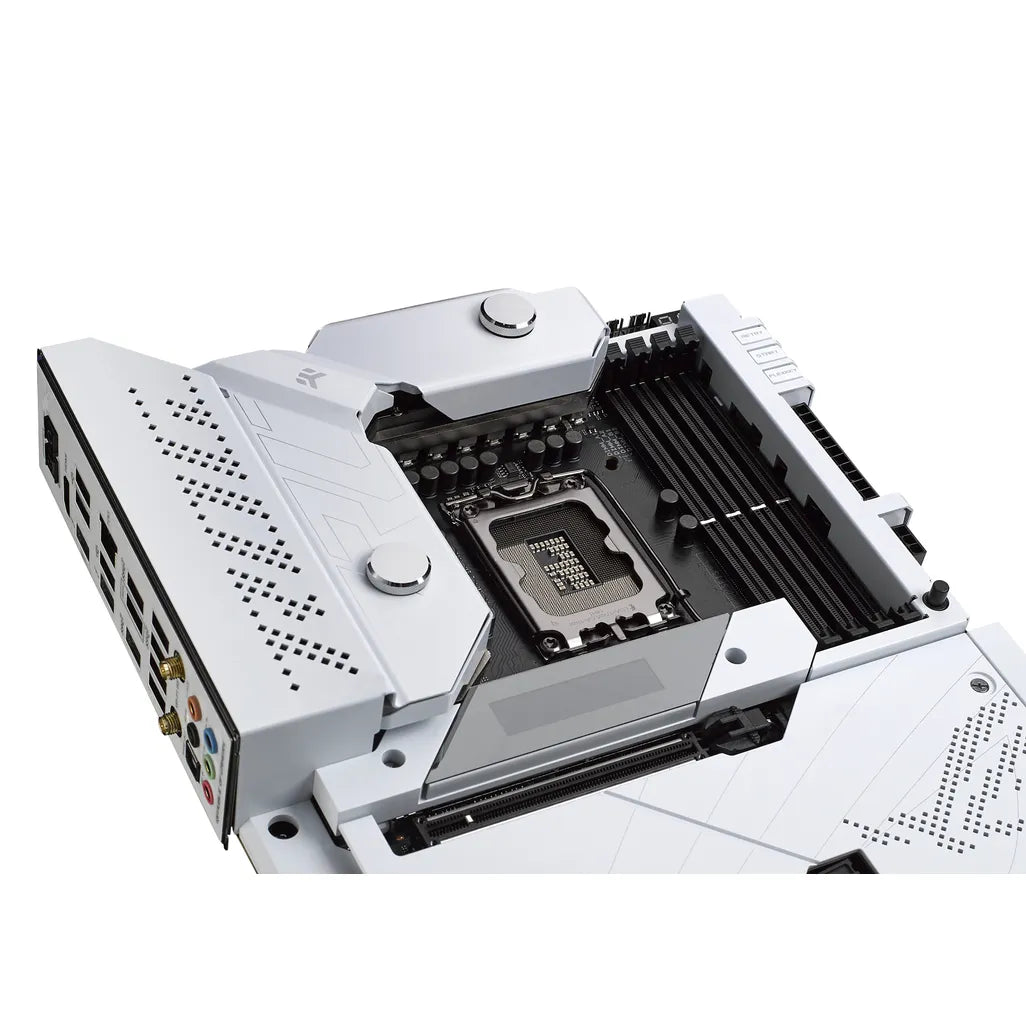

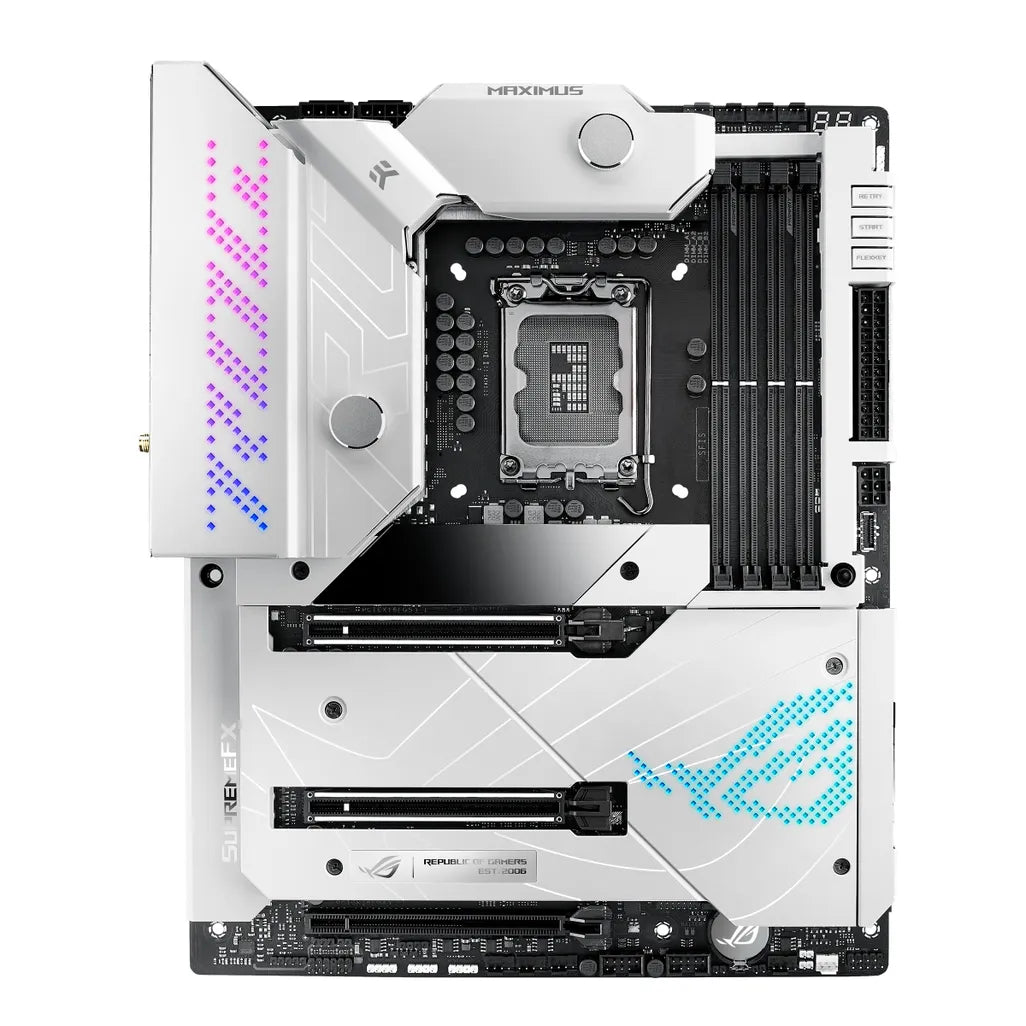

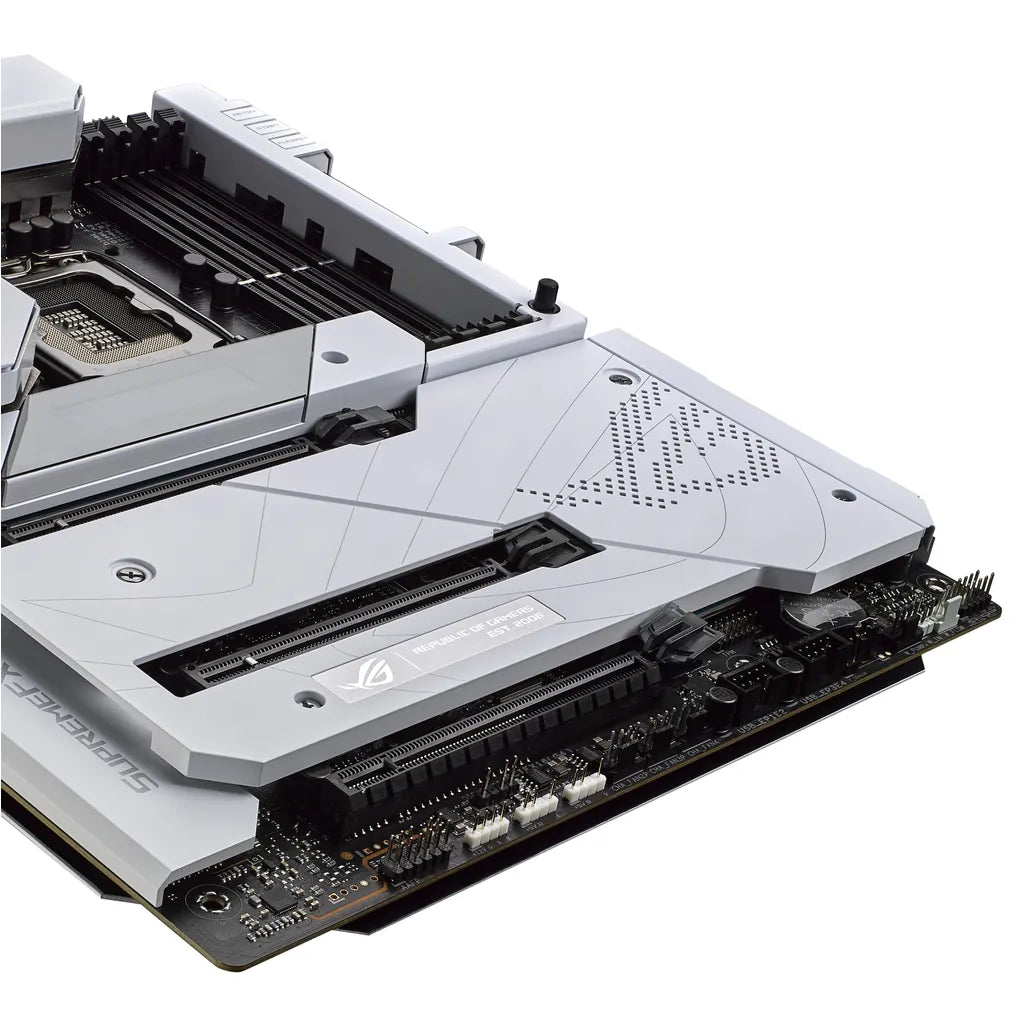

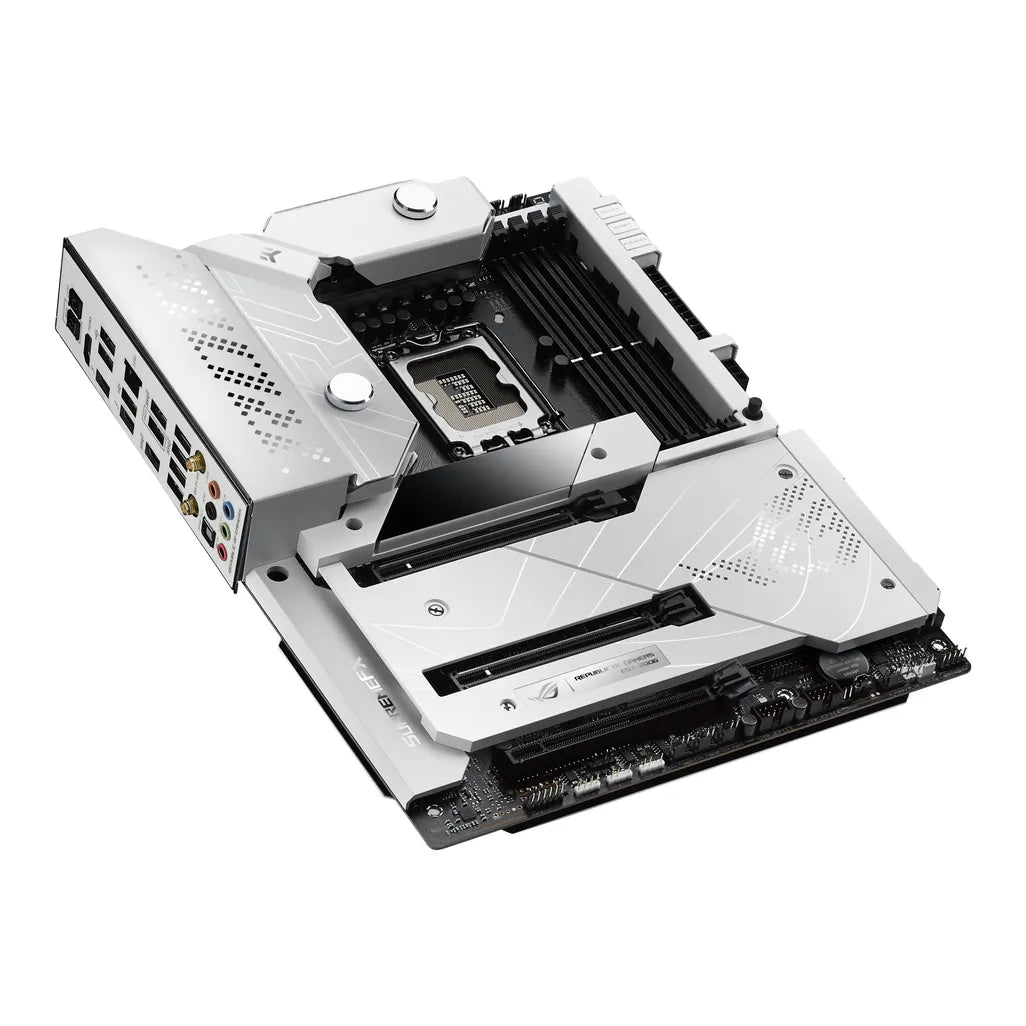

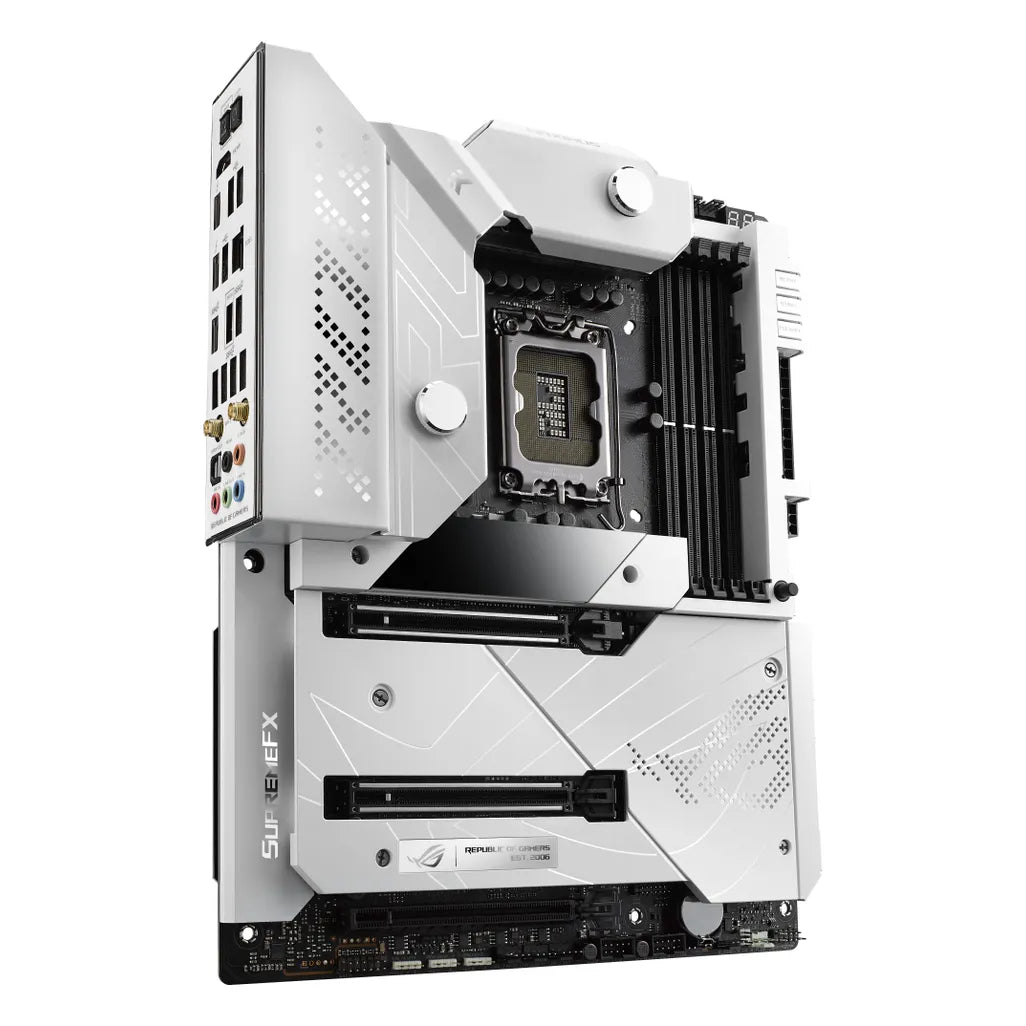

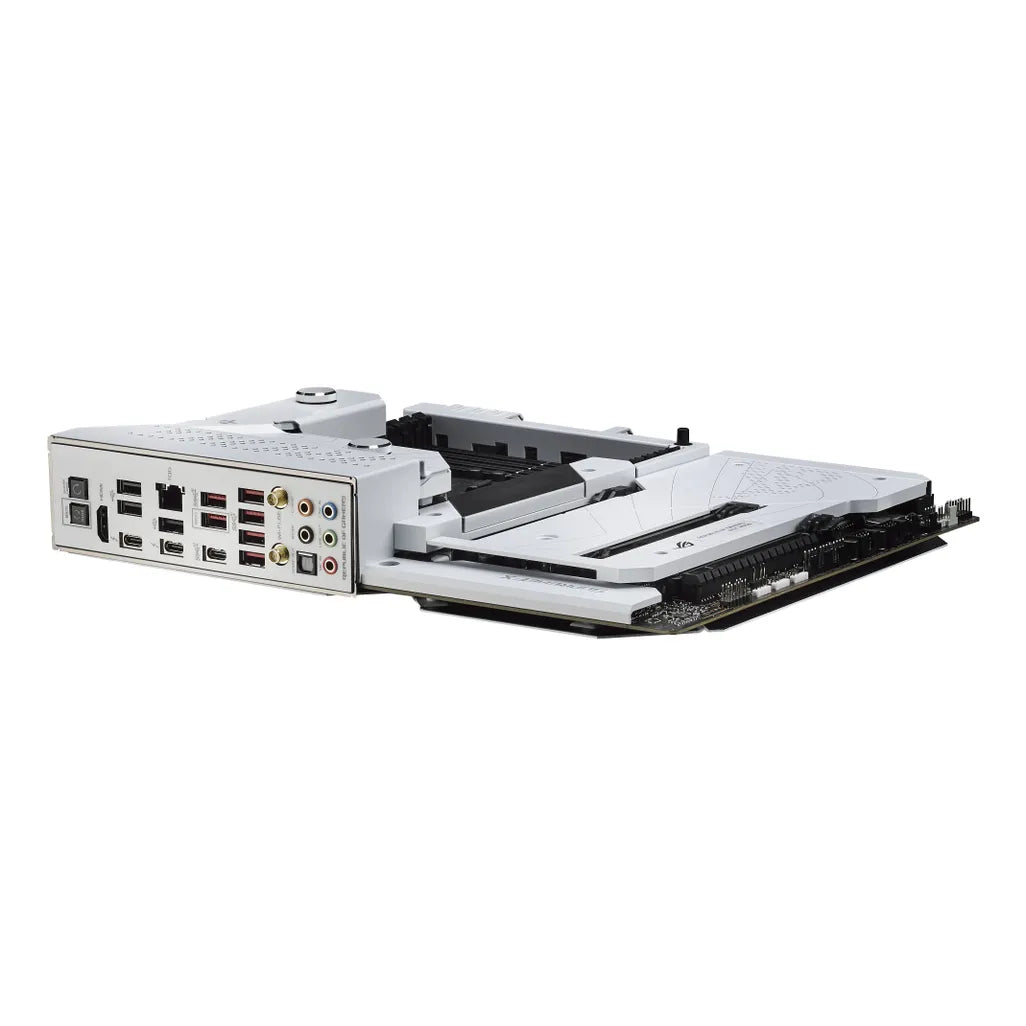

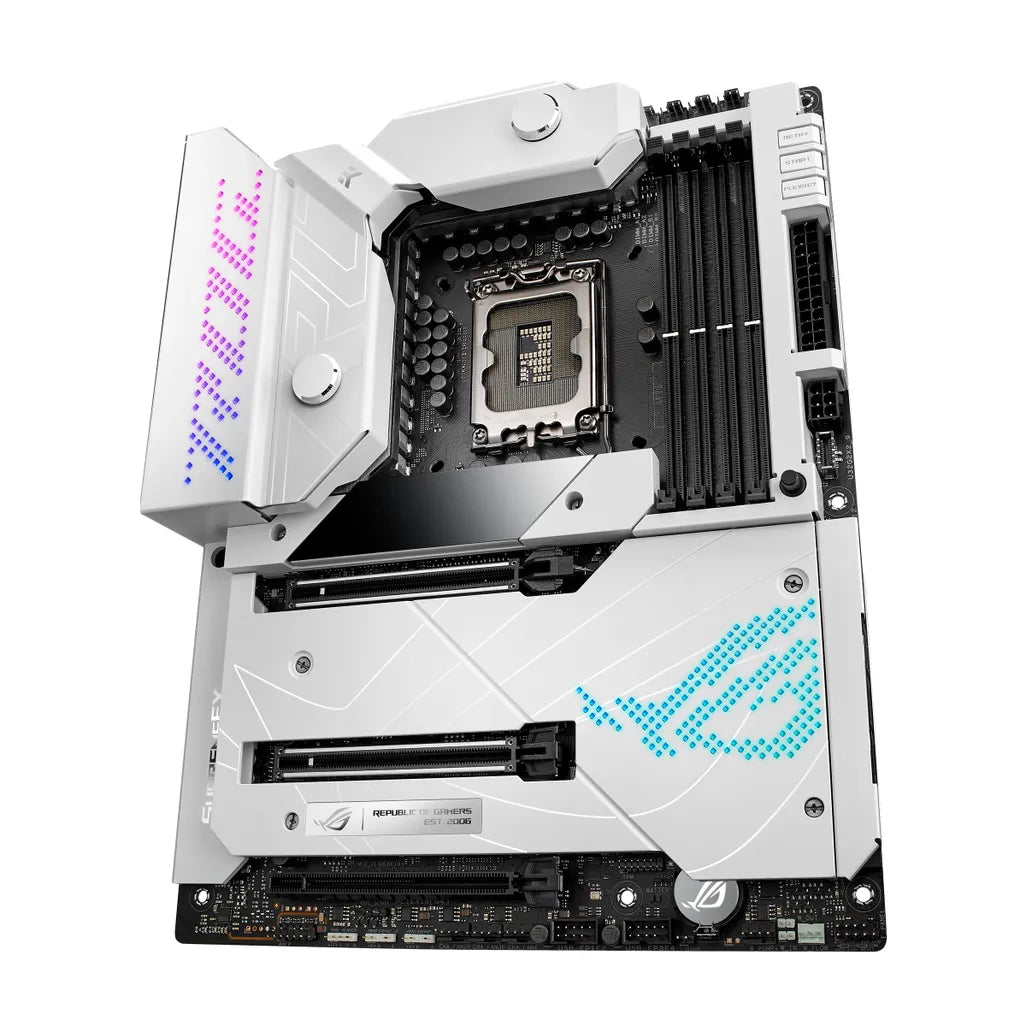

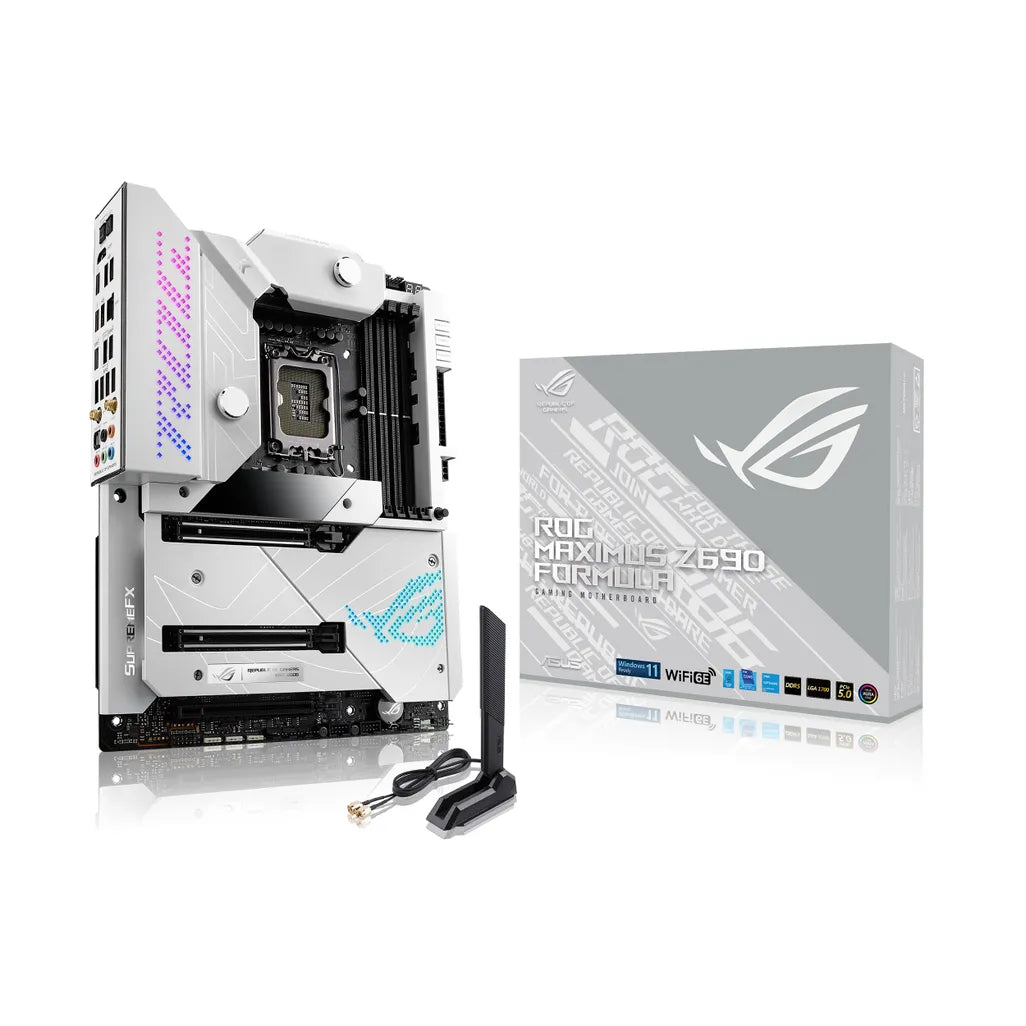

ASUS ROG MAXIMUS Z690 FORMULA with Wi-Fi, Intel Z690 Chipset, LGA1700, DDR5, ATX Desktop Motherboard
ASUS ROG MAXIMUS Z690 FORMULA with Wi-Fi, Intel Z690 Chipset, LGA1700, DDR5, ATX Desktop Motherboard
Regular price
R 15,399.00
Regular price
Sale price
R 15,399.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | ROG MAXIMUS Z690 Formula |
| Model | 90MB18G0-M0EAY0 |
| CPU | Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors |
| Intel Socket LGA1700 for 12th Gen Intel Core, Pentium Gold and Celeron Processors | |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
| Chipset | Z690 |
| Memory | 4 x DIMM, Max. 128GB, DDR5 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800MHz Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| ** Supported memory types, data rate (speed), and number of DRAM modules may vary depending on the CPU and memory configuration, for more information refer to www.asus.com for the memory support list | |
| Graphics | x HDMI port** |
| 2 x Intel Thunderbolt 4 ports (USB Type-C) support DisplayPort 1.4 and Thunderbolt video outputs*** | |
| * Graphics specifications may vary between CPU types. | |
| ** Support 4K@60Hz as specified in HDMI 2.1. | |
| *** VGA resolution support depends on processors' or graphic cards' resolution | |
| Expansion Slots | Intel 12th Gen Processors* |
| 2 x PCIe 5.0 x16 slot(s) (supports x16 or x8/x8 mode(s))** | |
| Intel Z690 Chipset*** | |
| 1 x PCIe 4.0 x16 slot (supports x4 or x4/x4 mode)*** | |
| * Please check PCIe bifurcation table in manual Chapter 1 | |
| ** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, PCIEX16(G5)_2 will run x8 only and if ROG Hyper M.2 card is installed on PCIEX16(G5)_2, PCIEX16(G5)_1 will run x8 only. | |
| *** Supports Intel Optane Memory H Series on PCH-attached PCIe slot | |
| Storage | Supports 5 x M.2 slots and 6 x SATA 6Gb/s ports |
| Intel 12th Gen Processors | |
| M.2_1 slot (Key M), type 2242/2260/2280/22110 | |
| - Intel 12th Gen processors support PCIe 4.0 x4 mode. | |
| Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110*** | |
| - Intel 12th Gen processors support PCIe 5.0 x4 mode | |
| Intel Z690 Chipset** | |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode) | |
| M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes) | |
| Hyper M.2_1 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)*** | |
| Hyper M.2_2 slot (Key M) via ROG Hyper M.2 card, type 2242/2260/2280/22110 (suppports PCIe 4.0 x4 mode)**** | |
| 6 x SATA 6Gb/s ports***** | |
| * Intel Rapid Storage Technology supports NVMe RAID 0/1/5, SATA RAID 0/1/5/10. | |
| ** Intel Rapid Storage Technology supports Intel Optane Memory H Series on PCH attached M.2 slots. | |
| *** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1, Hyper M.2_1 slot can support PCIe 4.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G5)_2, Hyper M.2_1 slot can support PCIe 5.0 x4 mode. When ROG Hyper M.2 card is installed on PCIEX16(G4)_3, Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode. | |
| **** When ROG Hyper M.2 card is installed on PCIEX16(G5)_1 or PCIEX16(G5)_2, Hyper M.2_2 slot will be disabled. When ROG Hyper M.2 card is installed on PCIEX16(G4)_3, Hyper M.2_1 and Hyper M.2_2 slots can support PCIe 4.0 x4 mode. | |
| ***** SATA6G_E12 cannot support RAID 0/1/5/10 | |
| Ethernet | 1 x Marvell 10Gb Ethernet |
| ASUS LANGuard | |
| Wireless and Bluetooth | Intel Wi-Fi 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz frequency band* | |
| Bluetooth v5.2 | |
| * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later | |
| USB | Rear USB:Total 12 ports |
| 2 x Thunderbolt 4 port(s) (2 x USB Type-C) | |
| 7 x USB 3.2 Gen 2 ports (6 x Type-A 1 x USB Type-C) | |
| 3 x USB 2.0 ports (3 x Type-A) | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) | |
| 2 x USB 3.2 Gen 1 headers supports additional 4 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers supports additional 4 USB 2.0 ports | |
| Audio | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| - Impedance sense for front and rear headphone outputs | |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
| - Supports up to 32-Bit/384 kHz playback | |
| Audio Features | |
| - SupremeFX Shielding Technology | |
| - ESS SABRE9018Q2C DAC/AMP | |
| - Gold-plated audio jacks | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |

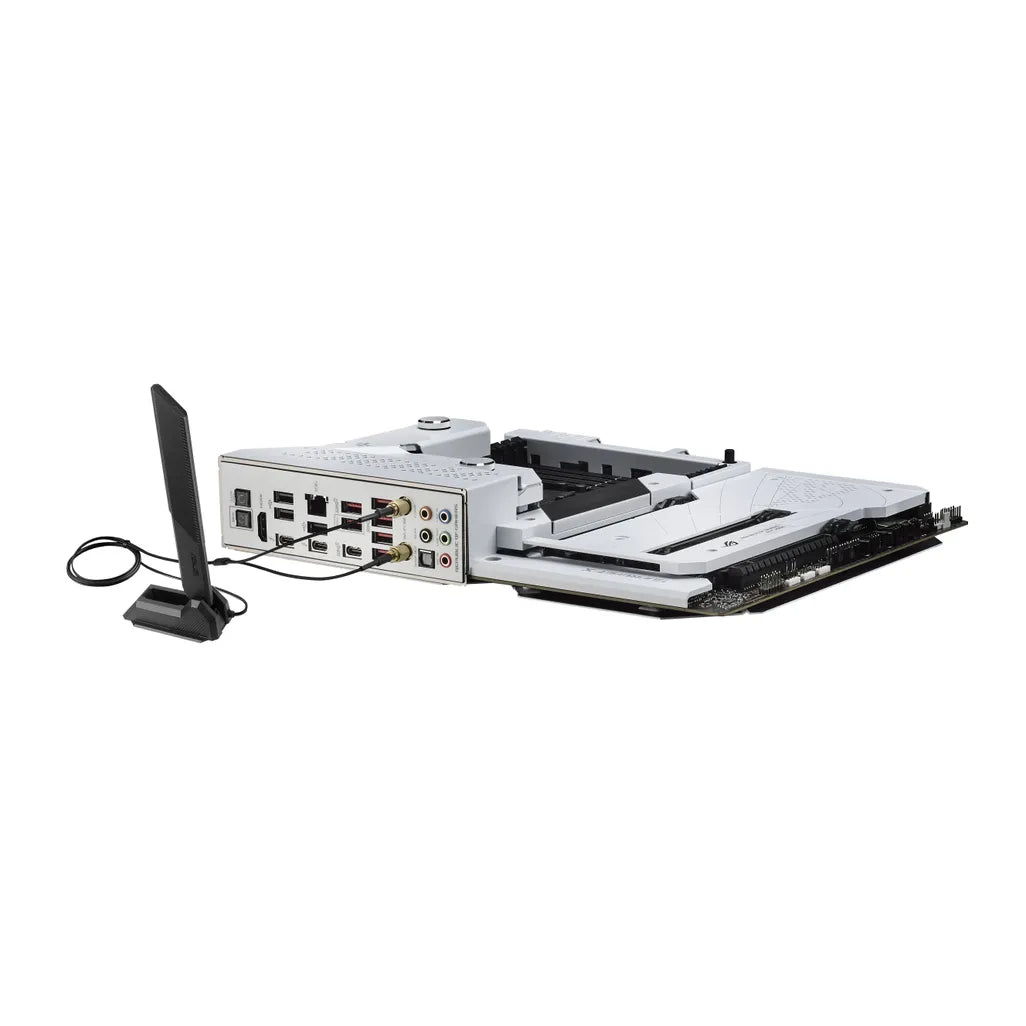

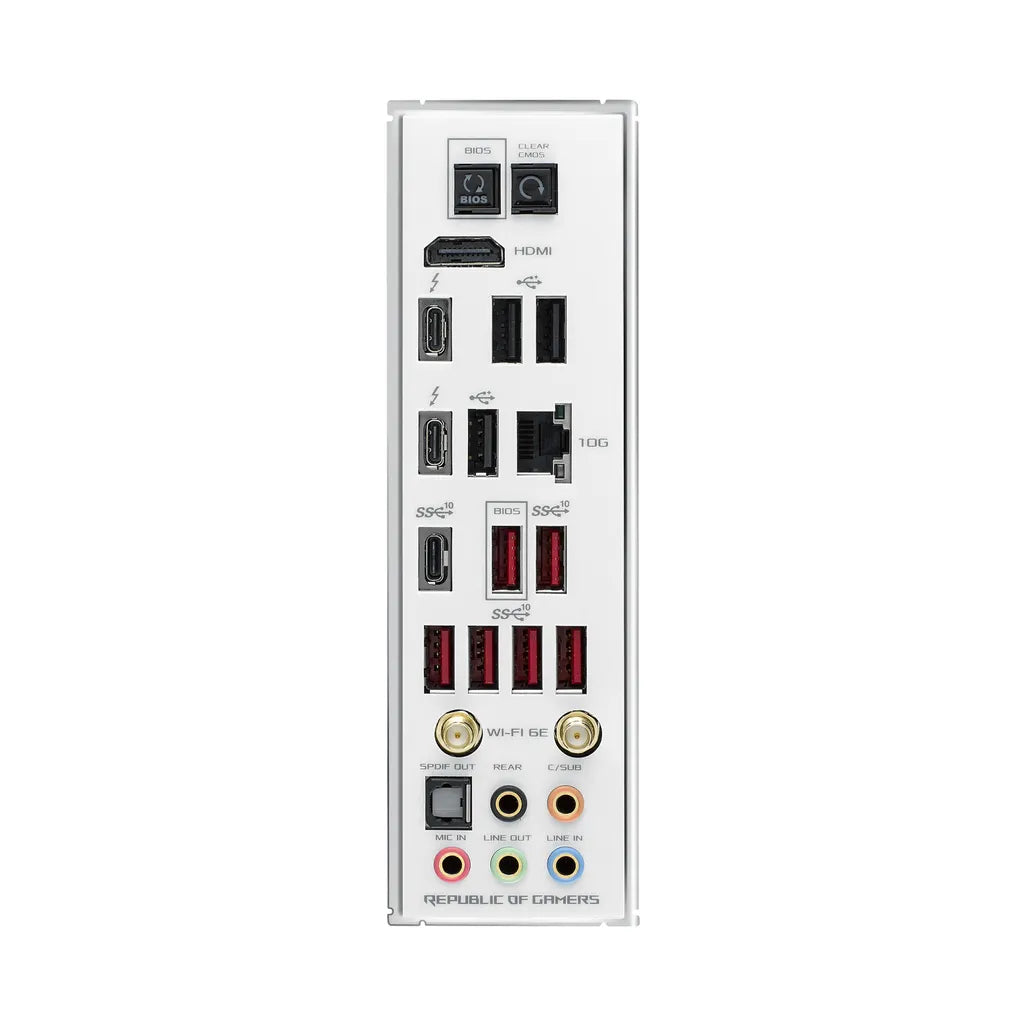

| Back Panel I/O Ports | 2 x Thunderbolt 4 USB Type-C ports |
| 7 x USB 3.2 Gen 2 ports 6 x Type-A 1 x USB Type-C | |
| 3 x USB 2.0 ports 3 x Type-A | |
| 1 x HDMI port | |
| 1 x Wi-Fi Module | |
| 1 x Marvell AQtion 10Gb Ethernet port | |
| 5 x Gold-plated audio jacks | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack button | |
| 1 x Clear CMOS button | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan headers | |
| 1 x 4-pin CPU OPT Fan headers | |
| 1 x 4-pin AIO Pump headers | |
| 4 x 4-pin Chassis Fan headers | |
| 1 x W_PUMP headers | |
| 1 x 2-pin Water In header | |
| 1 x 2-pin Water Out header | |
| 1 x 3-pin Water Flow header | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin 12V Power connector | |
| 1 x 6-pin PCIe Graphics Card connector | |
| Storage related | |
| 3 x M.2 slots (Key M) | |
| 6 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2x2 connector supports USB Type-C | |
| 2 x USB 3.2 Gen 1 headers supports additional 4 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers supports additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3 x Addressable Gen 2 headers | |
| 1 x AURA RGB headers | |
| 1 x FlexKey button | |
| 1 x 12-1 pin Front Panel Audio header AAFP | |
| 1 x ReTry button | |
| 1 x SPI TPM header 14-1pin | |
| 1 x Start button | |
| 1 x 10-1 pin System Panel header | |
| 1 x Thermal Sensor header | |
| Special Features | Extreme OC Kit |
| - FlexKey button | |
| - ReTry button | |
| - Start button | |
| Extreme Engine Digi | |
| - 10K Black Metallic Capacitors | |
| - MicroFine Alloy Choke | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - PCIe Slot Q-Release | |
| - Q-Code | |
| - Q-Connector | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - CrossChill EK III | |
| - M.2 heatsink backplate | |
| - M.2 heatsinks | |

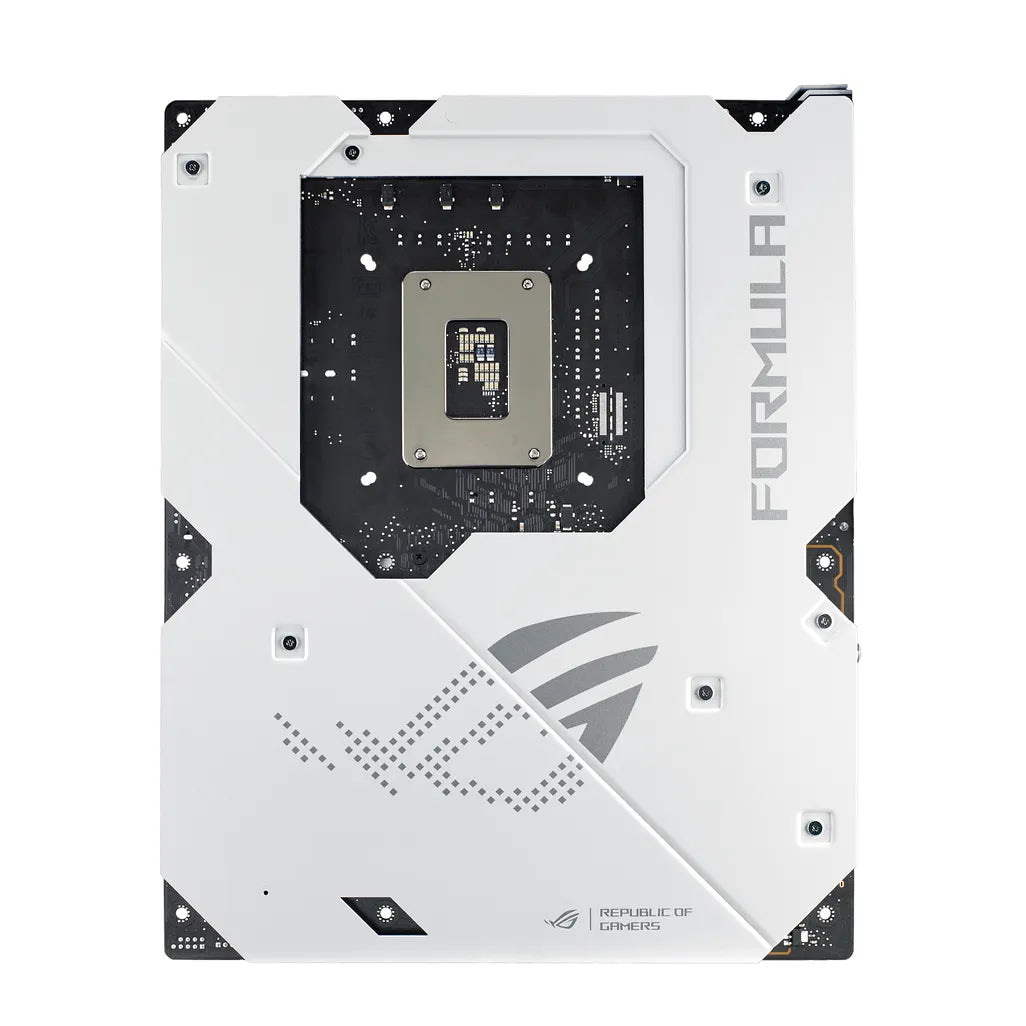

| - Steel backplate | |
| ASUS EZ DIY | |
| - BIOS FlashBack button | |
| - Clear CMOS button | |
| - CPU Socket lever protector | |
| - ProCool II | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| AURA Sync | |
| - AURA RGB header(s) | |
| - Addressable Gen 2 header(s) | |
| OLED 2" | |
| Front Panel USB 3.2 Gen 2x2 with Quick Charge 4 Support | |
| - Support: up to 60W charging* | |
| - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A | |
| - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS | |
| * To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W | |
| ASUS HYDRANODE | |
| - 1 x 12-1 pin Front Panel Audio header (AAFP) | |
| - 3 x Chassis fan support* (CHA_FAN1P,CHA_FAN2P,CHA_FAN3P) | |
| * Visit ASUS Website for the latest compatibility list | |
| Software Features | ROG Exclusive Software |
| - GameFirst VI | |
| - ROG CPU-Z | |
| - Sonic Studio III Sonic Studio Virtual Mixer Sonic Suite Companion | |
| - Sonic Radar III | |
| - DTS Sound Unbound | |
| - BullGuard Internet Security (1-year full version) | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - AIDA64 Extreme (1 year full version) | |
| - AURA Creator | |
| - AURA Sync | |
| - Fan Xpert 4 | |
| - Two-Way AI Noise Cancelation | |
| AI Suite 3 | |
| - Easy Optimization with AI Overclocking | |
| TPU | |
| EPU | |
| DIGI Power Control | |
| Turbo app | |
| MyAsus | |
| WinRAR | |
| WEFI BIOS | |
| AI Overclocking Guide | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| MemTest86 | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 1 x ARGB RGB extension cable | |
| 1 x RGB extension cable | |
| 2 x ROG weave SATA 6G cables | |
| 4 x SATA 6Gb/s cables | |
| ROG Hyper M.2 Card | |
| 1 x ROG Hyper M.2 Card | |
| 2 x M.2 screw package for ROG Hyper M.2 Card | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x M.2 Rubber Package(s) | |
| 1 x Q-connector | |
| 1 x M.2 Q-Latch package(s) | |
| 2 x M.2 Q-Latch packages for M.2 backplate | |
| 1 x ROG key chain | |
| 1 x ROG stickers | |
| 1 x ROG thank you card | |
| 1 x ROG Graphic card holder | |
| Installation Media | |
| 1 x USB drive with utilities and drivers | |
| Documentation | |
| 1 x User guide | |
| Form Factor | ATX |
| 305 x 244 mm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
