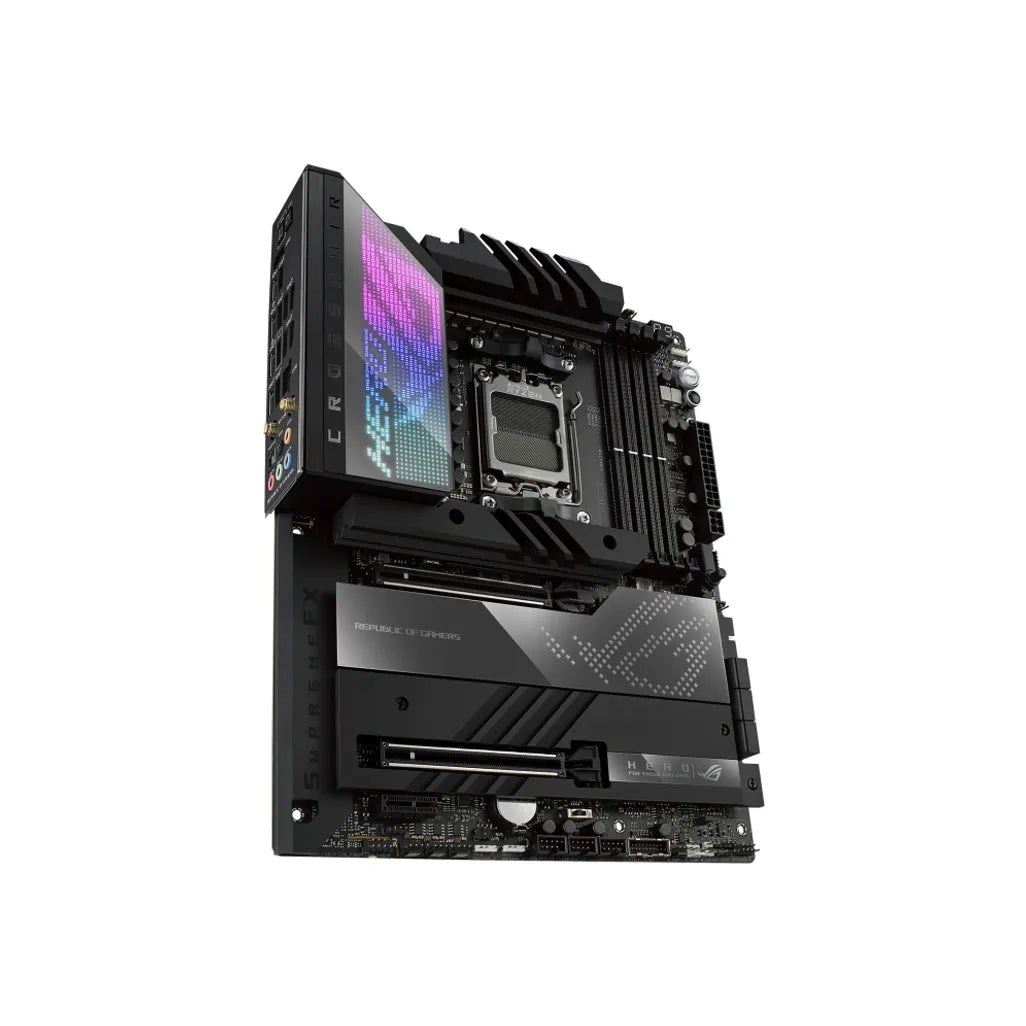

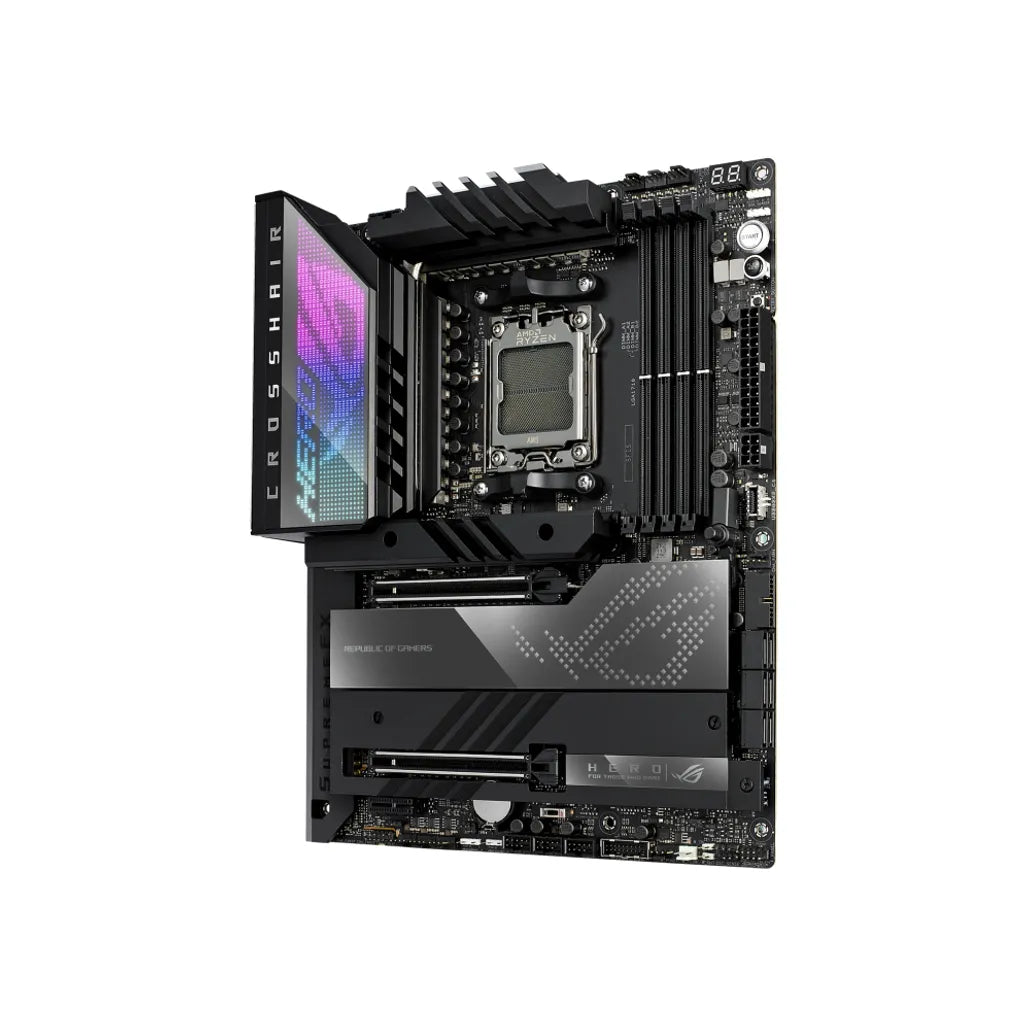

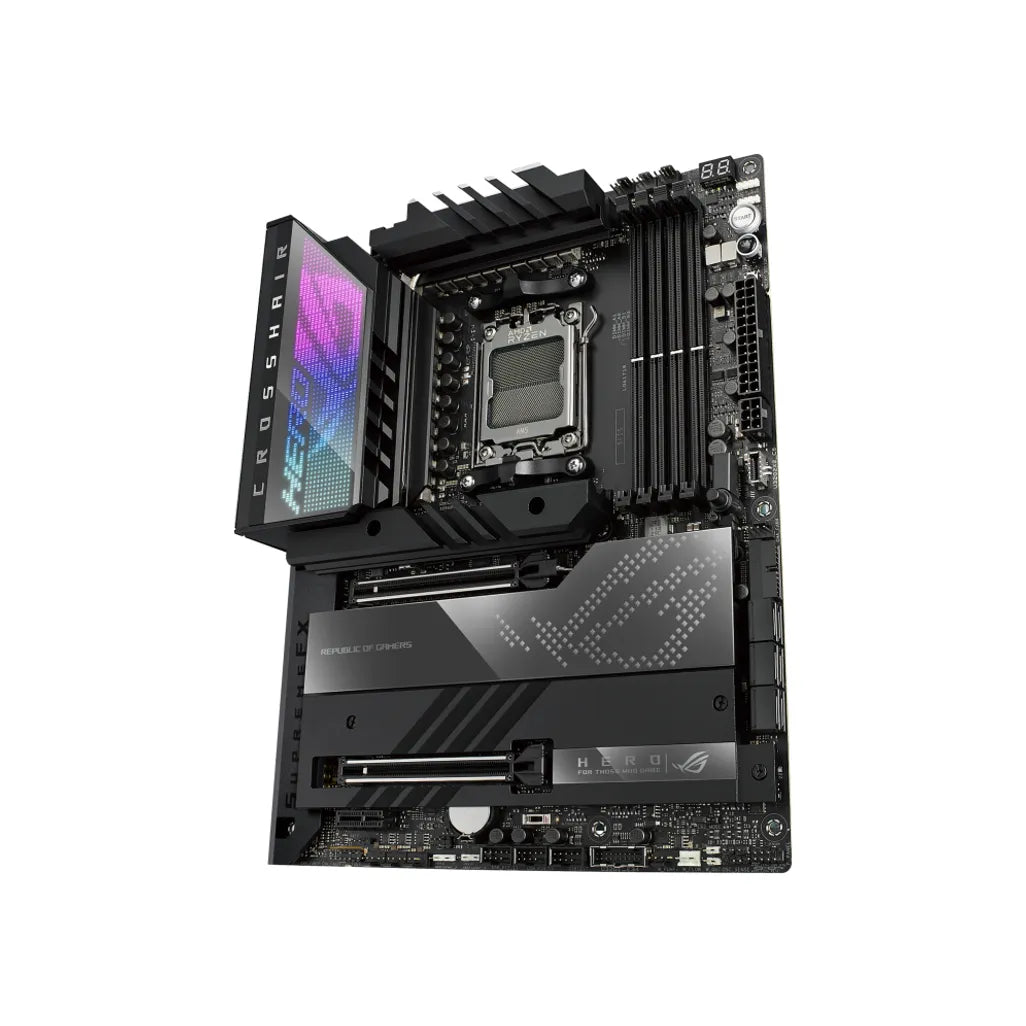

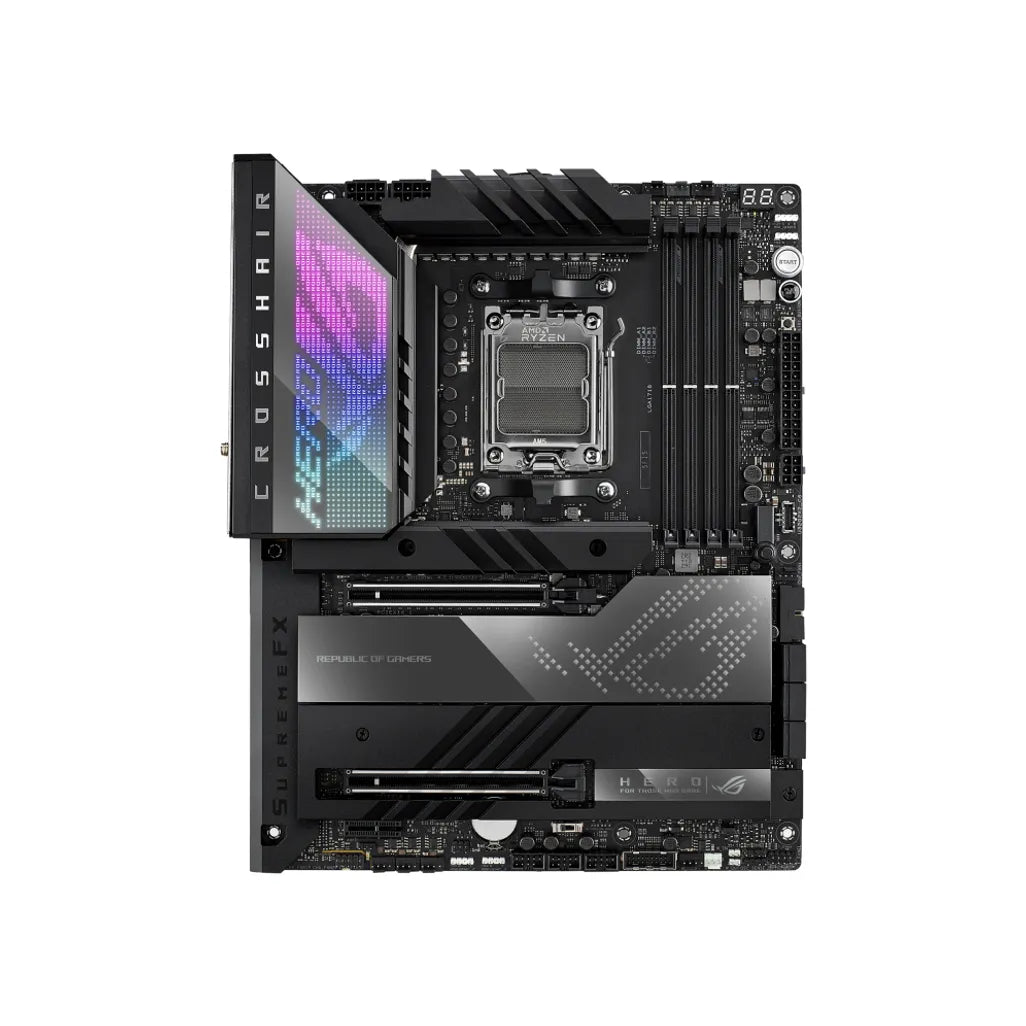

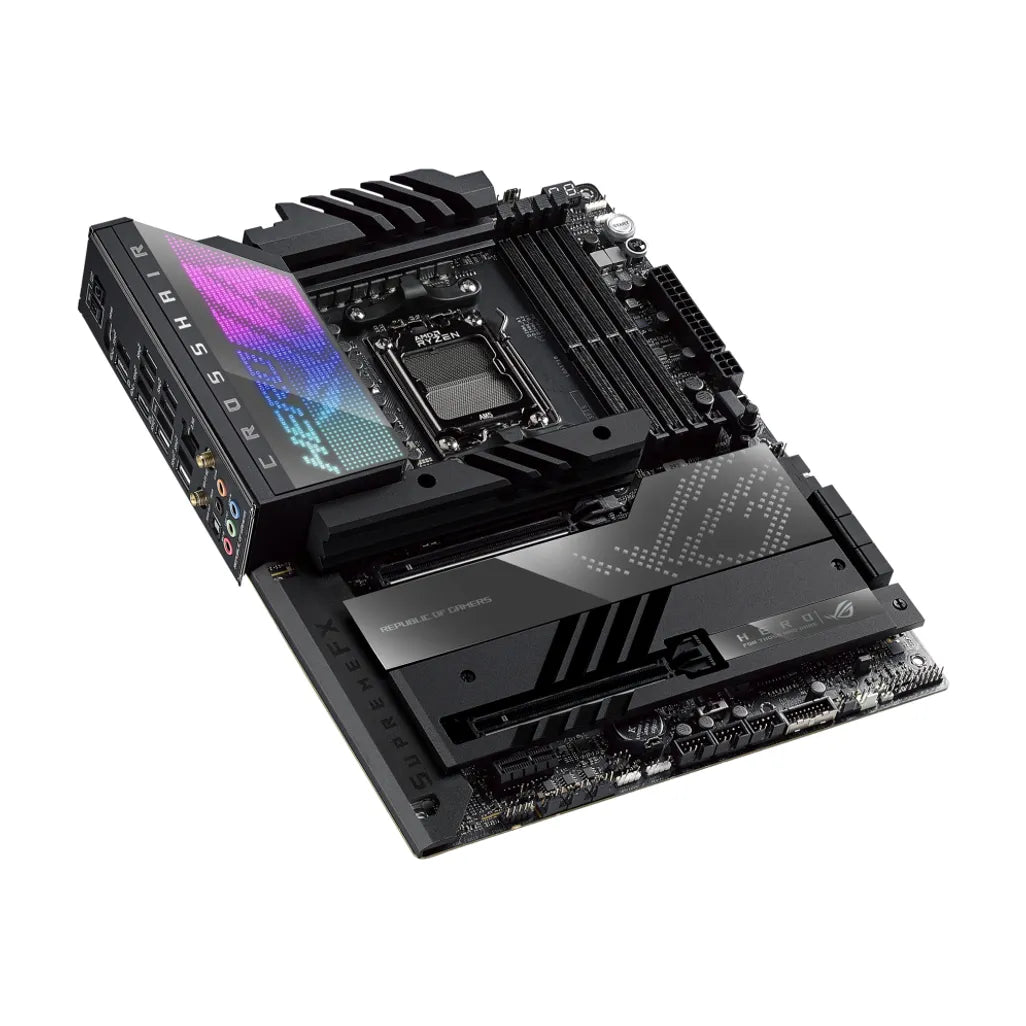

ASUS ROG CROSSHAIR X670E HERO AMD X670E Ryzen Socket AM5 ATX Desktop Motherboard
ASUS ROG CROSSHAIR X670E HERO AMD X670E Ryzen Socket AM5 ATX Desktop Motherboard
Regular price
R 16,500.00
Regular price
Sale price
R 16,500.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | ROG CROSSHAIR |
| Model | ROG CROSSHAIR X670E HERO (90MB1BC0-M0EAY0) |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X670 / X670E |
| Memory Support | |
| AMD Ryzen 7000 Series | 4x DDR5 DIMM, Max. 128GB, 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports AMD EXTended Profiles for Overclocking (EXPO) | |
| OptiMem II | |
| * Supported memory types, data rate (Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | |
| Video | |
| HDMI | 1x HDMI 2.1, maximum resolution of 4K 60Hz * |
| USB Type-C | 2x USB 4.0 Type-C with DisplayPort Alt Mode, Supports DisplayPort 1.4 * |
| **Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Expansion Slots | |
| CPU Direct | 2x PCIe 5.0 x16 Physical, x16 Electrical Slots * |
| * Dual PCIe 5.0 Slot support x16/x0 or x8/x8 Configurations | |
| AMD X670 Chipset | 1x PCIe 4.0 x1 Physical Slot |
| Storage | |
| CPU Direct | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) | |
| PCIe 5.0 M.2 slot (Key M) via PCIe 5.0 M.2 card, type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode) | |
| AMD X670 Chipset | M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 ) |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 ) | |
| 6 x SATA 6Gb/s ports | |
| AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
| Networking | |
| LAN | 1x Intel I225-V 2.5 Gigabit Ethernet RJ-45 LAN |
| WiFi | AMD WiFi 6E 2x2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.2 |
| Audio | |
| Audio Codec | ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4082 |
| Codec Features | Impedance sense for front and rear headphone outputs |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
| Supports up to 32-Bit/384 kHz playback | |
| SupremeFX Shielding Technology | |
| DAC | ESS SABRE 9218PQ DAC/AMP Integrated |
| DAC Features | Gold-plated audio jacks |
| Rear optical S/PDIF out port | |
| Premium audio capacitors | |
| Audio cover | |
| Connectivity | |
| Ports | 2x USB4 ports with Intel JHL8540 USB4 controller (2x USB Type-C) |
| 1x USB 3.2 Gen 2x2 port (1 x USB Type-C) | |
| 9x USB 3.2 Gen 2 ports (8 x Type-A 1 x Type-C) | |
| 1x HDMI port | |
| 2x SMA Connectors for WiFi Antennas | |
| 1x Intel I225-V 2.5Gb Ethernet port | |
| 5x Gold-plated audio jacks | |
| 1x Optical S/PDIF out port | |
| Buttons | 1x BIOS FlashBack button |
| 1x Clear CMOS button | |
| General | |
| Internal Connectors | Fan and Cooling related |
| 1x 4-pin CPU Fan header(s) | |
| 1x 4-pin CPU OPT Fan header(s) | |
| 1x 4-pin AIO Pump header(s) | |
| 4x 4-pin Chassis Fan header(s) | |
| 1x W_PUMP header(s) | |
| 1x 2-pin Water In header | |
| 1x 2-pin Water Out header | |
| 1x 3-pin Water Flow header | |
| Power related | |
| 1x 24-pin Main Power connector | |
| 2x 8-pin 12V Power connector | |
| 1x 6-pin PCIe Power connector | |
| Storage related | |
| 4x M.2 slots (Key M) | |
| 6x SATA 6Gb/s ports | |
| USB | |
| 1x USB 3.2 Gen 2x2 connector (support(s) USB Type-C) | |
| 2x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports | |
| 3x USB 2.0 header(s) support(s) additional 6 USB 2.0 ports | |
| Miscellaneous | |
| 3x Addressable Gen 2 header(s) | |
| 1x Alteration Mode Switch | |
| 1x Aura RGB header(s) | |
| 1x FlexKey button | |
| 1x Front Panel Audio header (AAFP) | |
| 1x ReTry button | |
| 1x Start button | |
| 1x 10-1 pin System Panel header | |
| 1x Thermal Sensor header | |
| LED Displays | ASUS Q-LED Diagnostic Array |
| BIOS | 256MB UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Form Factor | ATX Form Factor, 304.8 x 243.84 mm (H x W) |
| Operating System Support | Windows 11 64-bit |

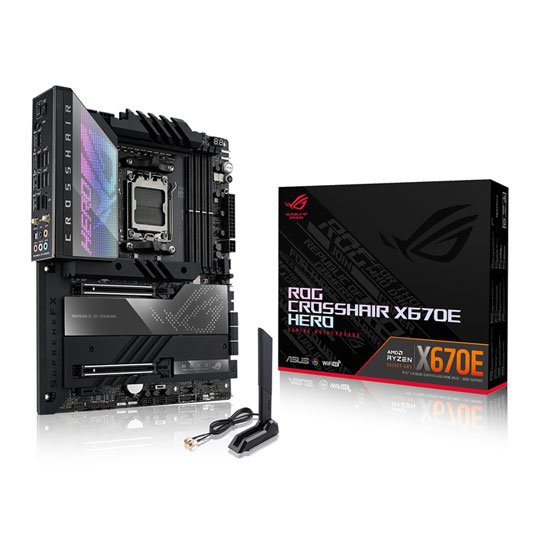

| Box Contents | ASUS ROG CROSSHAIR X670E HERO Motherboard |
| 1x ARGB RGB extension cable | |
| 1x RGB extension cable | |
| 4x SATA 6Gb/s cables | |
| 1x PCIe 5.0 M.2 Card with heatsink | |
| 1x M.2 screw package for PCIe 5.0 M.2 Card | |
| 1x Thermal pad for M.2 | |
| 1x ASUS Wi-Fi moving antennas | |
| 3x Rubber Packages for M.2 backplate | |
| 1x Q-connector | |
| 1x M.2 Q-Latch package | |
| 3x M.2 Q-Latch packages for M.2 backplate | |
| 1x ROG Graphics card holder | |
| 1x ROG key chain | |
| 1x ROG stickers | |
| 1x ROG thank you card | |
| 1x USB drive with utilities and drivers | |
| 1x User guide | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
