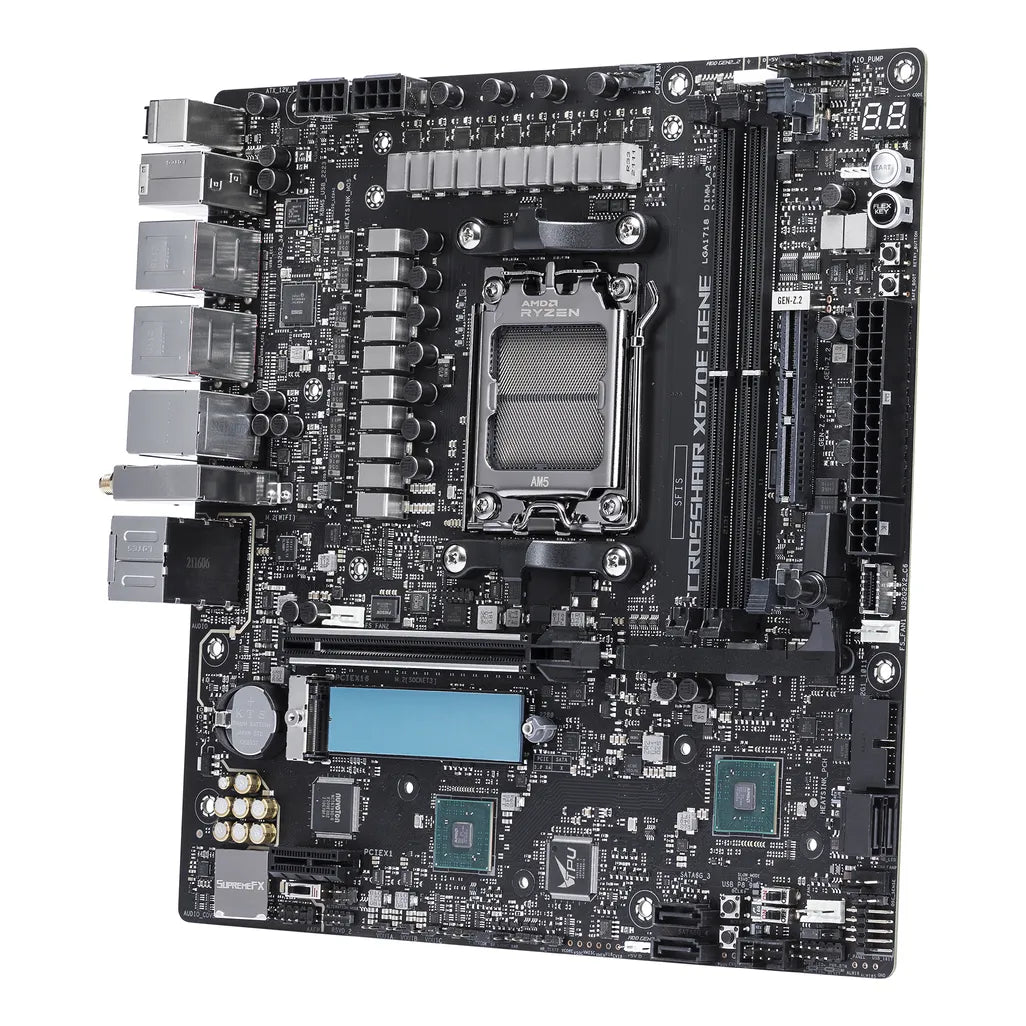

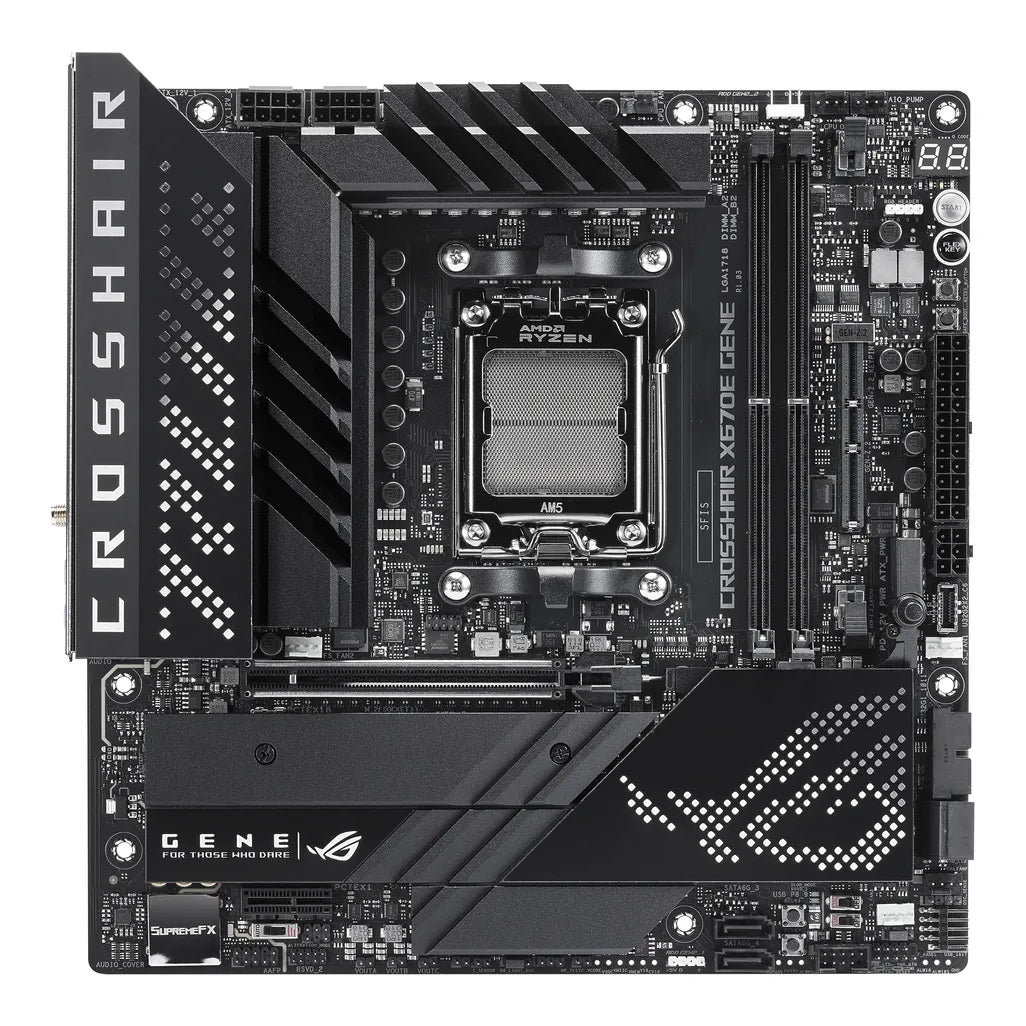

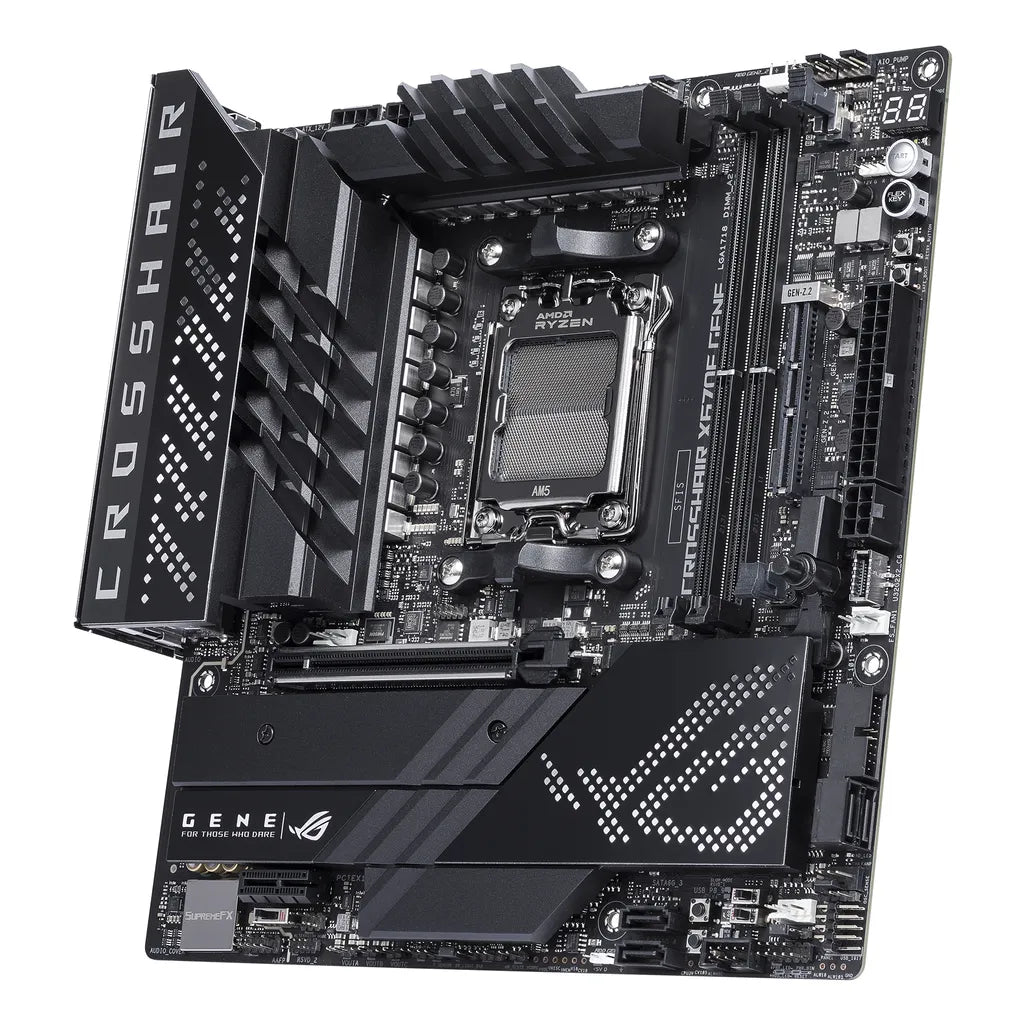

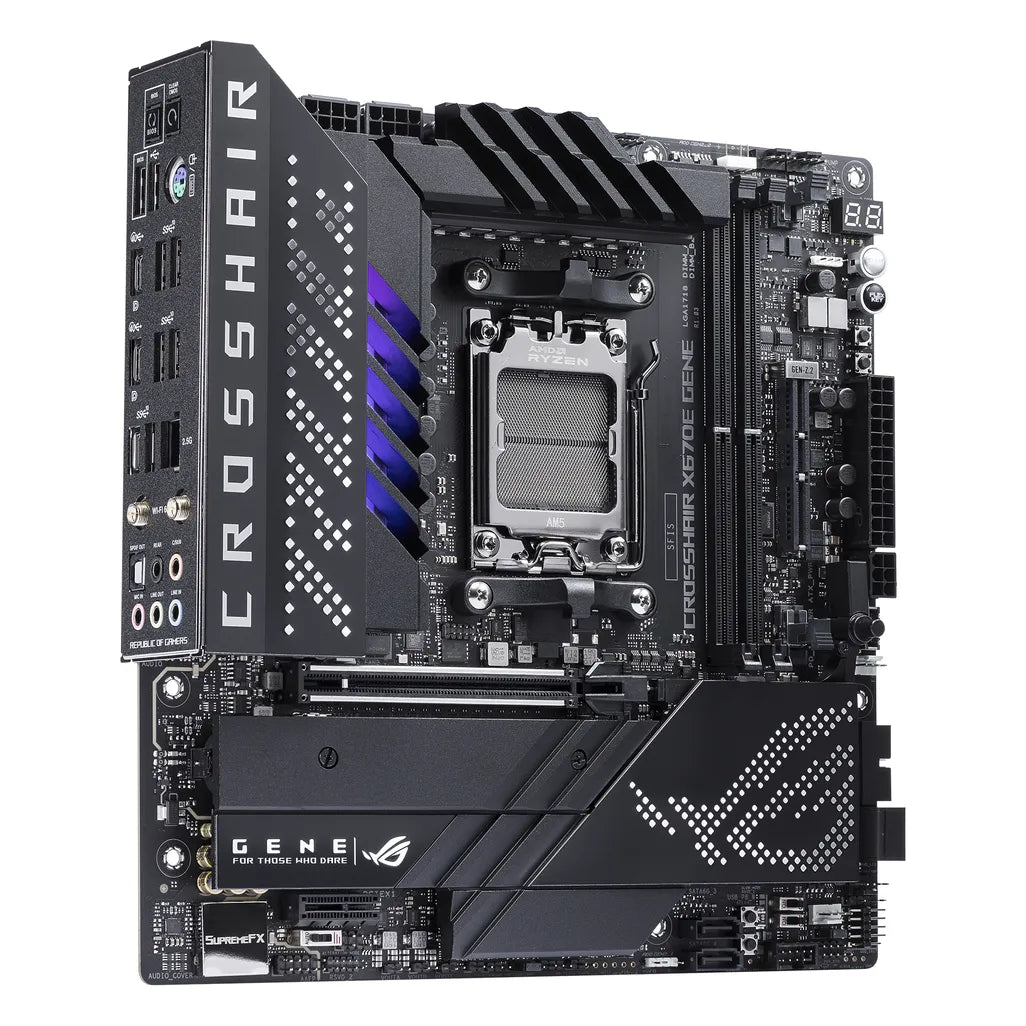

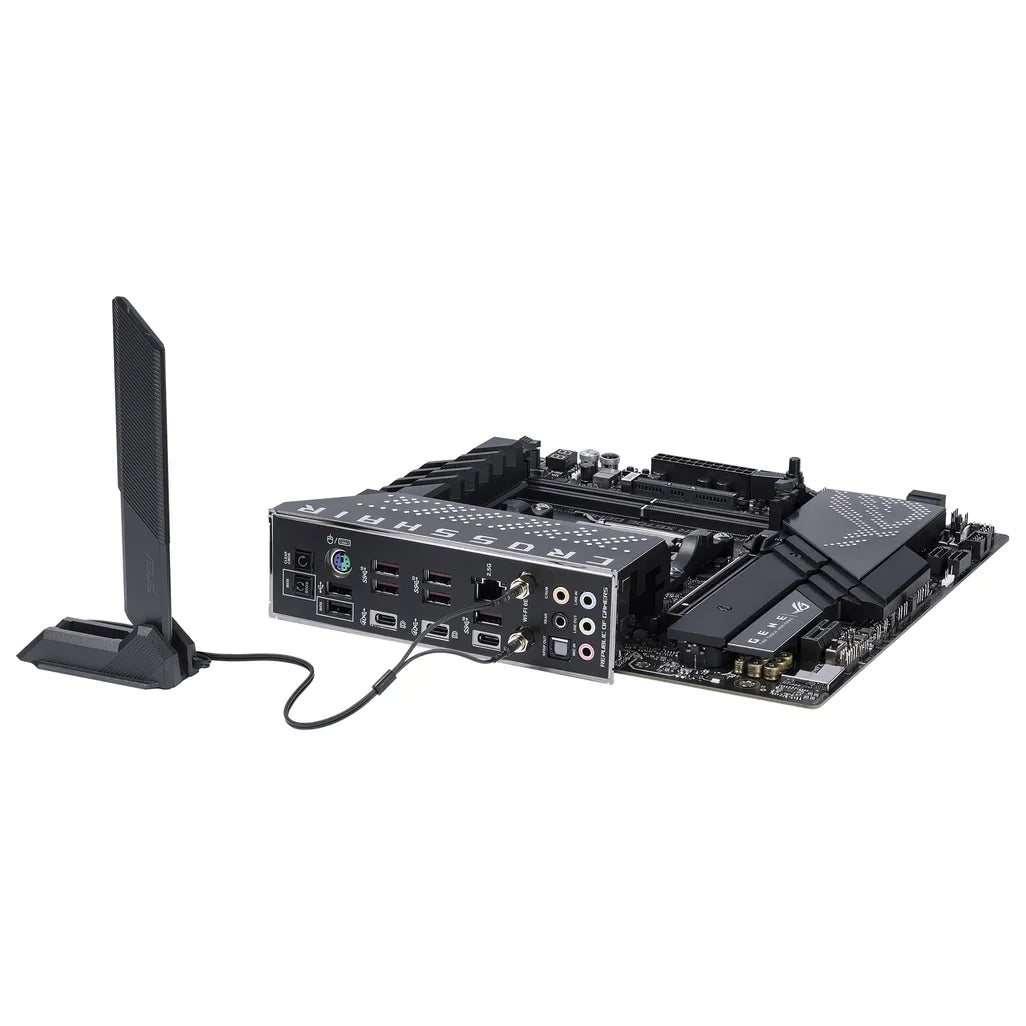

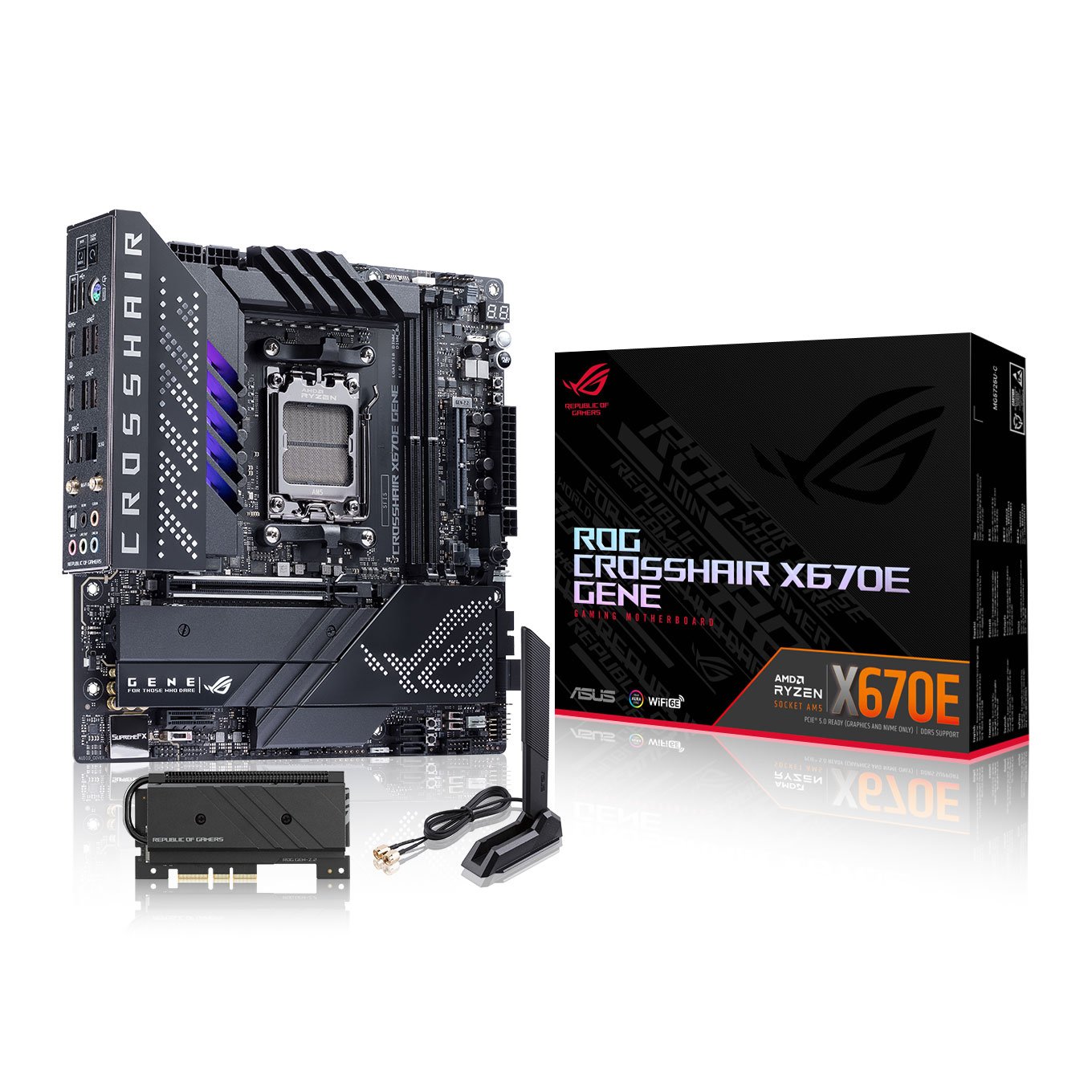

ASUS ROG CROSSHAIR X670E GENE AMD X670E Ryzen Socket AM5 Micro-ATX Desktop Motherboard
ASUS ROG CROSSHAIR X670E GENE AMD X670E Ryzen Socket AM5 Micro-ATX Desktop Motherboard
Regular price
R 11,499.00
Regular price
Sale price
R 11,499.00
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | ROG Crosshair Gene |
| Model | ASUS ROG CROSSHAIR X670E GENE |
| CPU | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors* |
| * Refer to www.asus.com for CPU support list. | |
| Chipset | AMD X670 |
| Memory | 2 x DIMM, Max. 64GB, DDR5 6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports AMD Extended Profiles for Overclocking (EXPO) | |
| OptiMem II | |
| * Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | |
| Graphics | 2 x USB4 ports support USB Type-C display |
| outputs* | |
| * VGA resolution support depends on processors' or graphic cards' resolution. | |
| Expansion Slots | AMD Ryzen 7000 Series Desktop Processors* |
| 1 x PCIe 5.0 x16 slot | |
| AMD X670 Chipset | |
| 1 x PCIe 4.0 x1 slot | |
| * Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/) | |
| Storage | Total supports 3 x M.2 slots and 4 x SATA |
| 6Gb/s ports* | |
| AMD Ryzen 7000 Series Desktop Processors | |
| M.2 slot (Key M), type 2242/2260/2280(supports PCIe 5.0 x4 mode) | |
| GEN-Z.2_1 slot (Key M) via GEN-Z.2, type | |
| 2242/2260/2280/22110 (supports PCIe 5.0 x4)** | |
| AMD X670 Chipset | |
| GEN-Z.2_2 slot (Key M) via GEN-Z.2, type | |
| 2242/2260/2280/22110 (supports PCIe 4.0 x4) | |
| 4 x SATA 6Gb/s ports | |
| *AMD RAIDXpert2 Technology supports both | |
| NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
| **Performance may vary depending on the | |
| SSD's firmware version and the system hardware & system configuration, for more information refer to www.asus.com for device support site | |
| Ethernet | 1 x Intel 2.5Gb Ethernet |
| Asus LANGuard | |
| Wireless And Bluetooth | Wi-Fi 6E |
| 2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax) | |
| Supports 2.4/5/6GHz frequency band* | |
| Bluetooth v5.3** | |
| * WiFi 6E 6GHz regulatory may vary between countries, and function will be ready in Windows 11 or later. | |
| ** The Bluetooth version may vary, please | |
| refer to the Wi-Fi module manufacturer's website for the latest specifications | |
| USB | Rear USB (Total 10 ports) |
| 2 x USB4 ports with Intel JHL8540 USB4 | |
| controller (2 x USB Type-C) | |
| 6 x USB 3.2 Gen 2 ports (5 x Type-A 1 x USB Type-C) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| Front USB (Total 7 ports) | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C with up to 60W PD/QC4 )* | |
| 1 x USB 3.2 Gen 1 headers supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| *To support 60W, please install the power cable to the 6-pin PCIe Graphics Card connector or else only 27W can be supported | |
| Audio | ROG SupremeFX 7.1 Surround Sound High |
| Definition Audio CODEC ALC4080 | |
| - Impedance sense for front and rear headphone outputs | |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - High quality 120 dB SNR stereo playback output and 113 dB SNR recording input | |
| - Supports up to 32-Bit/384 kHz playback | |
| Audio Features | |
| - SupremeFX Shielding Technology | |
| - Savitech SV3H712 AMP | |
| - Gold-plated audio jacks | |
| - Rear optical S/PDIF out port | |
| - Premium audio capacitors | |
| - Audio cover | |

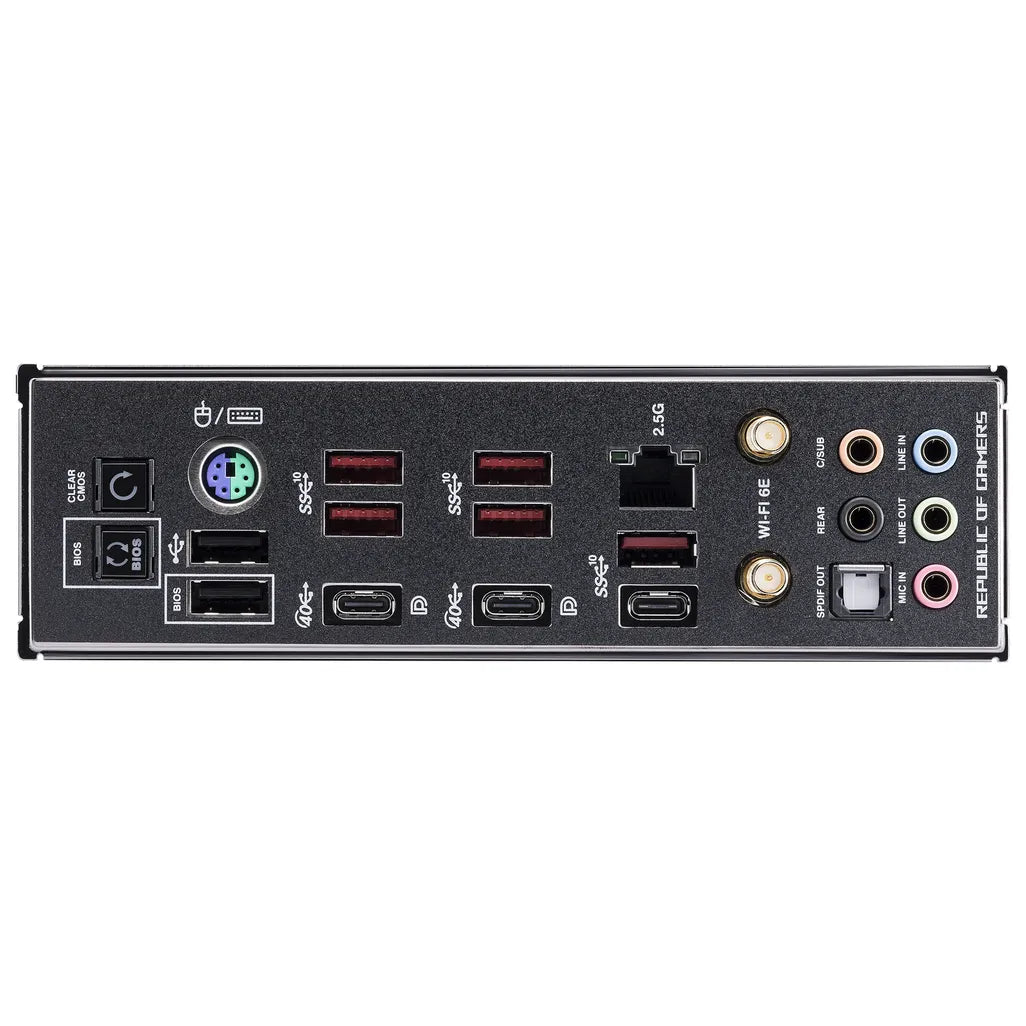

| Back Panel I/O Ports | 2 x USB4 ports with Intel JHL8540 USB4 controller (2 x USB Type-C) |
| 6 x USB 3.2 Gen 2 ports (5 x Type-A 1 x USB Type-C) | |
| 2 x USB 2.0 ports (2 x Type-A) | |
| 1 x Wi-Fi Module | |
| 1 x Intel 2.5Gb Ethernet | |
| 5 x Gold-plated audio jacks* | |
| 1 x Optical S/PDIF out port | |
| 1 x BIOS FlashBack button | |
| 1 x Clear CMOS button | |
| 1 x PS/2 Keyboard/Mouse combo port | |
| *The rear panel Lime (Line out) port does not support spatial audio. If you wish to use spatial audio make sure to connect your audio output device to the audio jack on the front panel of your chassis. | |
| Internal I/O Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 1 x 4-pin Chassis Fan header | |
| 3 x 4-pin Full Speed Fan headers | |
| Power related | |
| 1 x 24-pin Main Power connector | |
| 2 x 8-pin 12V Power connector | |
| 1 x 6-pin PCIe Graphics Card connector | |
| Storage related | |
| 1 x M.2 slots (Key M) | |
| 1 x Gen-Z.2 slot supports 2 x M.2 slots (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 2x2 connector (supports USB Type-C) | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 2 x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 1 x 80 Light Bar jumper | |
| 2 x Addressable Gen 2 headers | |
| 1 x Alteration Mode Switch | |
| 1 x Aura RGB header | |
| 2 x BCLK button | |
| 1 x FlexKey button | |
| 1 x 10-1 pin Front Panel Audio header (AAFP) | |
| 1 x LN2 Mode jumper | |
| 1 x Osc sence header | |
| 12 x ProbeIt Measurement Points | |
| 1 x ReTry button | |
| 1 x RSVD switch | |
| 1 x RSVD header | |
| 1 x Safe Boot button | |
| 1 x Slow Mode switch | |
| 1 x Start button | |
| 1 x 10-1 pin System Panel header | |
| 1 x Thermal Sensor header | |
| Special Features | Extreme OC Kit |
| - FlexKey button | |
| - LN2 Mode | |
| - ProbeIt | |
| - ReTry button | |
| - Safe boot button | |
| - Start button | |
| - Slow Mode | |
| Extreme Engine Digi | |
| - 10K Black Metallic Capacitors | |
| - MicroFine Alloy Choke | |
| ASUS Q-Design | |
| - M.2 Q-Latch | |
| - PCIe Slot Q-Release | |
| - Q-Code | |
| - Q-Connector | |
| - Q-DIMM | |
| - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - M.2 heatsink backplate | |
| - M.2 heatsink | |
| - VRM heatsink design | |
| ASUS EZ DIY | |
| - BIOS FlashBack button | |
| - Clear CMOS button | |
| - ProCool II | |
| - Pre-mounted I/O shield | |
| - SafeSlot | |
| - SafeDIMM | |
| Aura Sync | |
| - Aura RGB header | |
| - Addressable Gen 2 headers | |
| Front Panel USB 3.2 Gen 2x2 with Quick | |
| Charge 4 Support | |
| - Support: up to 60W charging* | |
| - Output: 5/9/15/20V max. 3A, PPS:3.3–21V max. 3A | |
| - Compatible with QC 4.0/3.0/2.0, PD3.0 and PPS | |
| *To support 60W, please install the power cable to 6-pin PCIe Graphics Card connector or can only support 27W | |
| Software Features | ROG Exclusive Software |
| - GameFirst VI | |
| - ROG CPU-Z | |
| - ROG True Voltician | |
| - Sonic Studio III Sonic Studio Virtual Mixer Sonic Suite Companion | |
| - Sonic Radar III | |
| - DTS Sound Unbound | |
| - BullGuard Internet Security (1-year full version) | |
| ASUS Exclusive Software | |
| Armoury Crate | |
| - AIDA64 Extreme (1 year full version) | |
| - Aura Creator | |
| - Aura Sync | |
| - Fan Xpert 4 with AI Cooling II | |
| - Power Saving | |
| - Two-Way AI Noise Cancellation | |
| AI Suite 3 | |
| - TPU | |
| - DIGI Power Control | |
| - Turbo app | |
| - PC Cleaner | |
| MyAsus | |
| WinRAR | |
| UEFI BIOS | |
| ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Accessories | Cables |
| 1 x RGB extension cable | |
| 2 x SATA 6Gb/s cables | |
| ROG GEN-Z.2 with Heatsink | |
| 1 x ROG GEN-Z.2 with heatsink | |
| 1 x M.2 pad for ROG GEN-Z.2 | |
| 2 x M.2 screw package for ROG GEN-Z.2 | |
| ROG True Voltician | |
| 1 x ROG True Voltician | |
| 4 x cables for ROG True Voltician | |
| Additional Cooling Kit | |
| 1 x Thermal pad for M.2 | |
| Miscellaneous | |
| 1 x ASUS Wi-Fi moving antennas | |
| 1 x Q-connector | |
| 1 x M.2 Q-Latch package for M.2 backplate | |
| 1 x ROG Graphics card holder | |
| 1 x ROG key chain | |
| 1 x ROG stickers | |
| 1 x ROG thank you card | |
| 1 x Rubber Package for M.2 backplate | |
| Installation Media | |
| 1 x USB drive with utilities and drivers | |
| Documentation | |
| 1 x User guide | |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | micro-ATX Form Factor |
| 24.4 cm x 24.4 cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
