| SPECIFICATIONS |
| Brand |
ASUS |
| Series |
DUAL Series |
| Model |

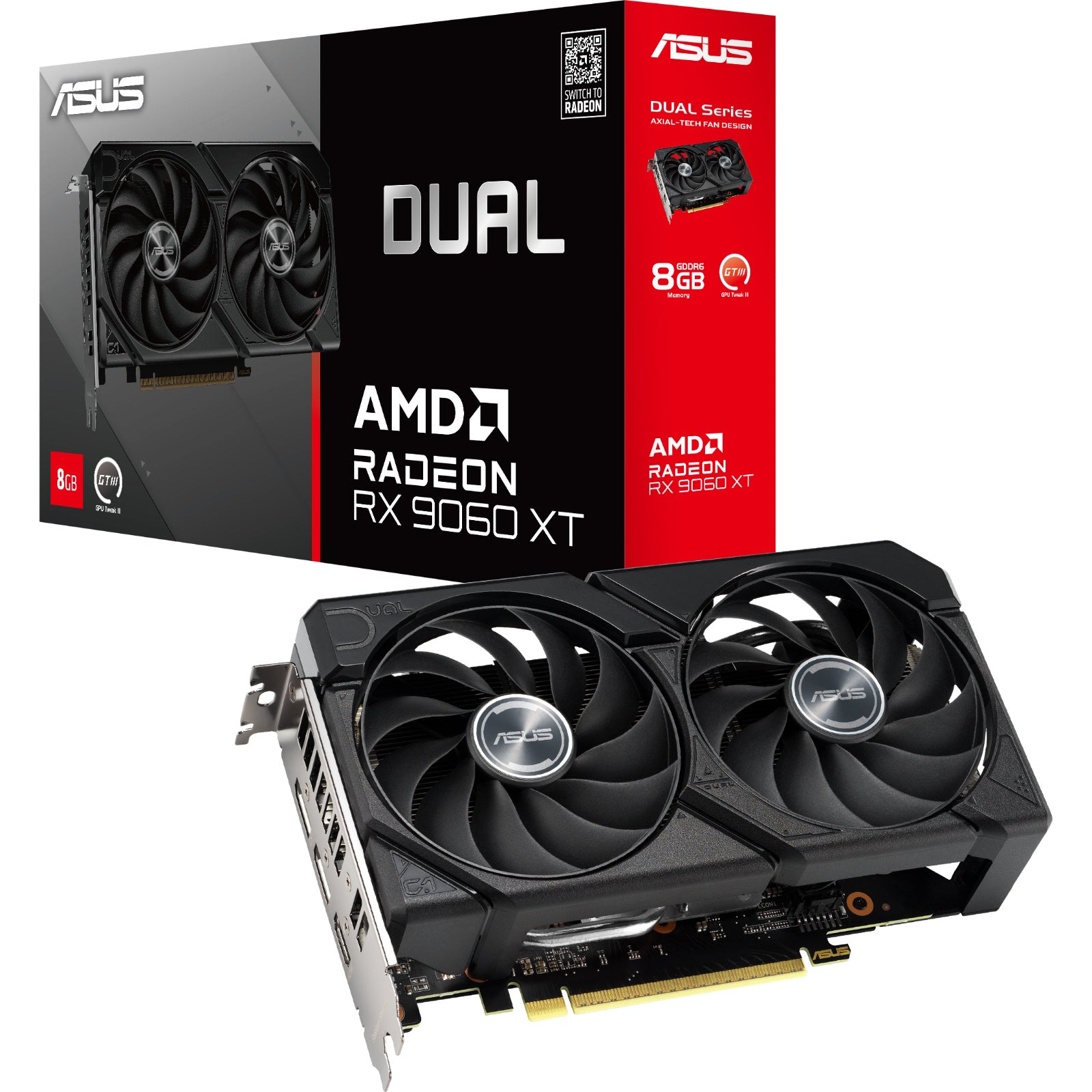

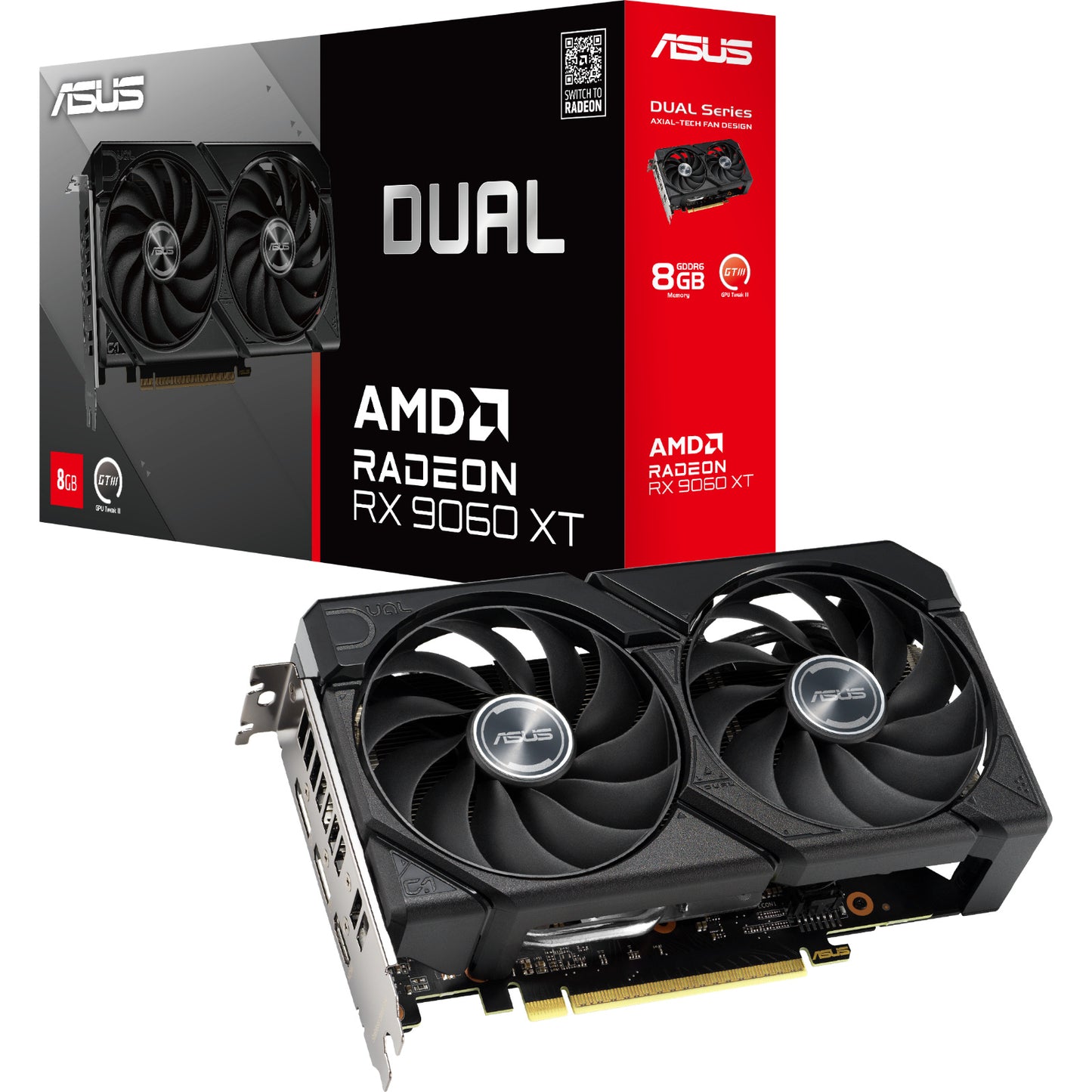

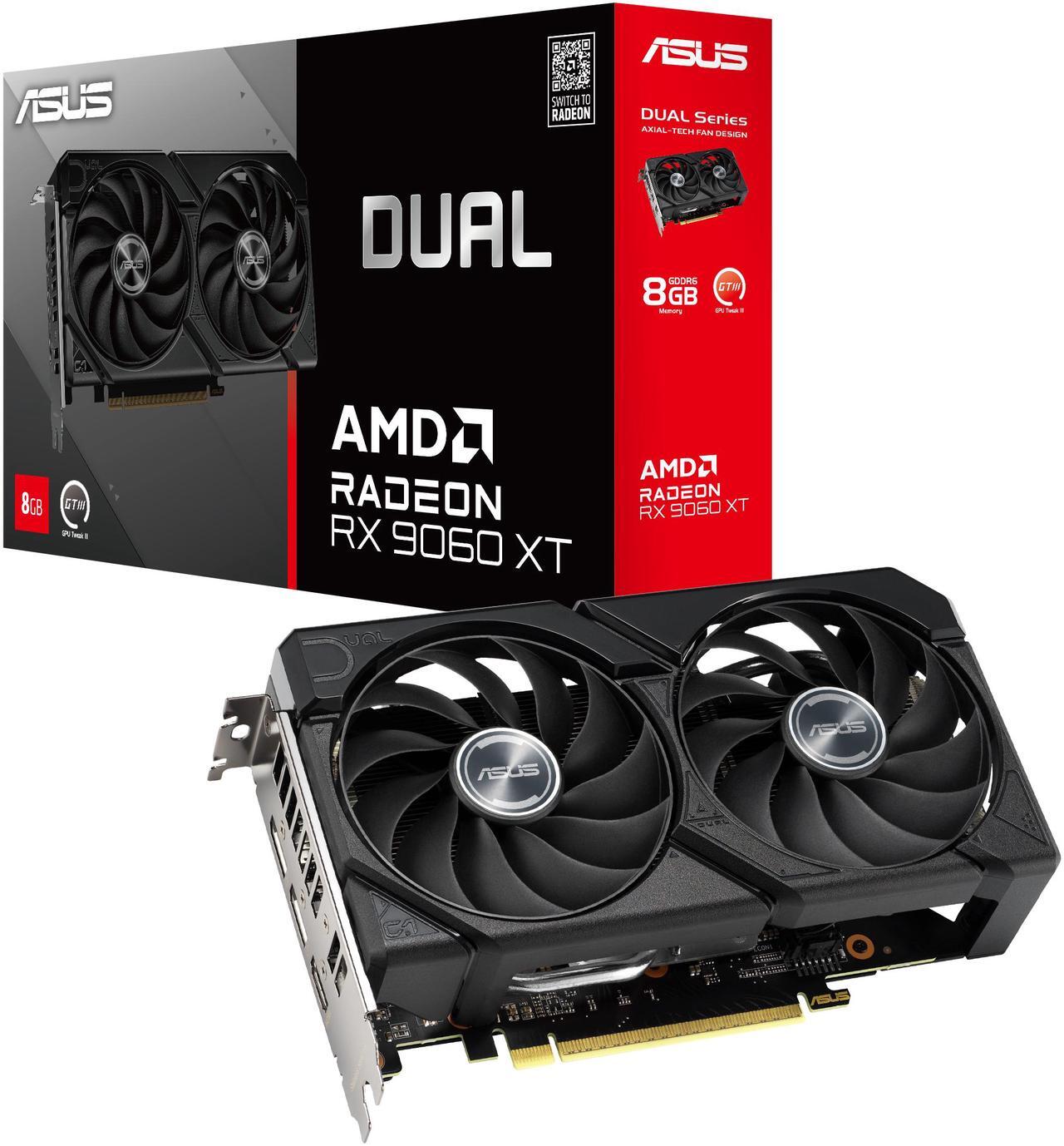

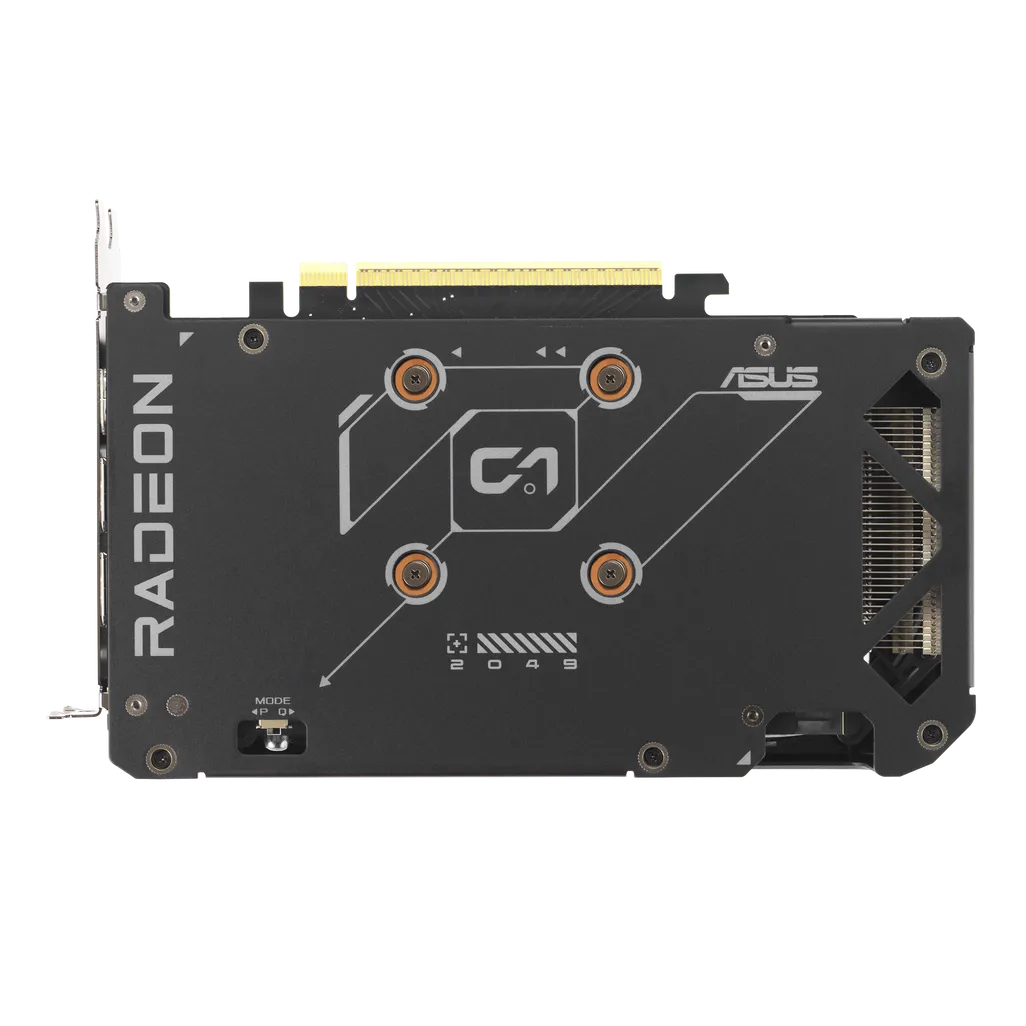

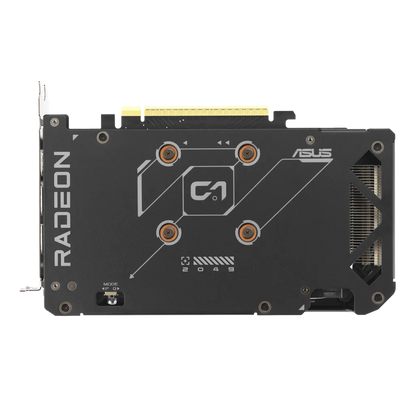

Radeon RX 9060 XT 8GB DUAL (DUAL-RX9060XT-8G) |
| Chipset |
| GPU |
Radeon RX 9060 XT |
| Chipset Manufacturer |
AMD |
| Interface |
PCIe 5.0 x16 |
| Compute Units |
32 Compute Units |
| Ray Accelerators |
32 units, gen 3 |
| Stream Processors |
2048 Unified |
| Game Clock |
Up to TBD MHz |
| Boost Clock |
Up to TBD MHz |
| GPU Architecture |
AMD RDNA 4 Architecture |
| GPU Design |
TSMC 4nm Monolithic Die |
| Memory |
| Infinity Cache |
32MB |
| Effective Memory Clock |
20Gbps |
| Memory Size |
8GB |
| Memory Interface |
128-bit |
| Memory Type |
GDDR6 |
| 3D API Support |
| DirectX |
Direct3D 12_2 Ultimate |
| OpenGL |
OpenGL 4.6 |
| OpenCL |
OpenCL 2.2 |
| Vulkan |
Vulkan 1.3 |
| Shader Model |
Shader Model 6.7 |
| Connectivity |

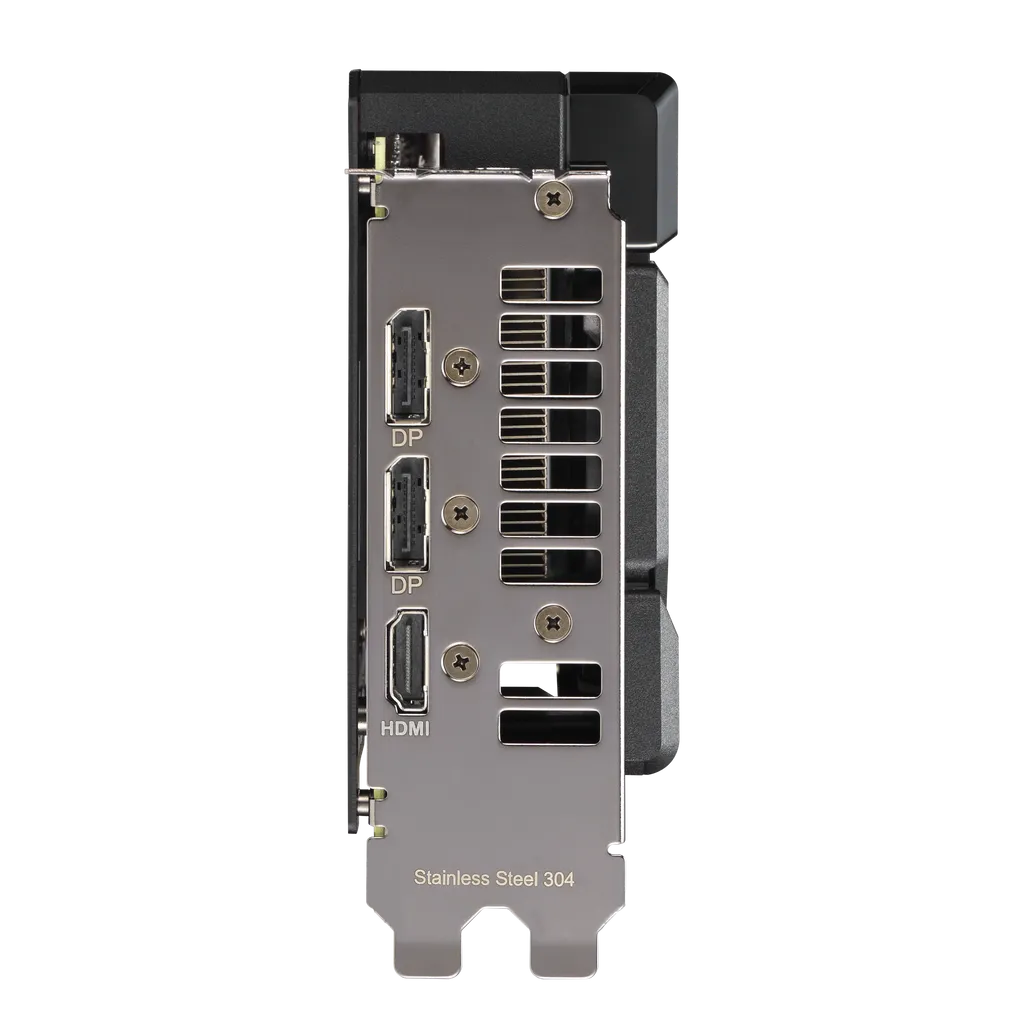

| Ports |

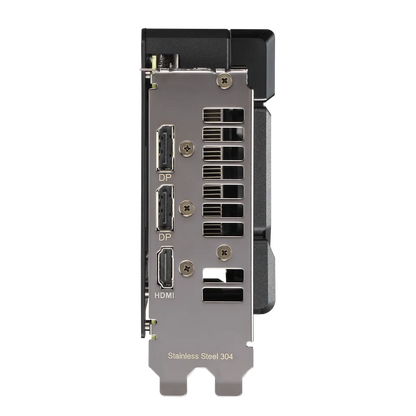

2x DisplayPort 2.1a |
| 1x HDMI 2.1b |
| HDMI 4K Support |
Yes, Up to UltraHD 4K 120Hz |
| VR Ready |
Yes, Radeon VR Ready Premium |
| General |
| Features |

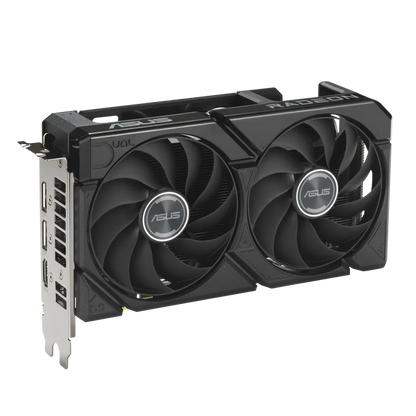

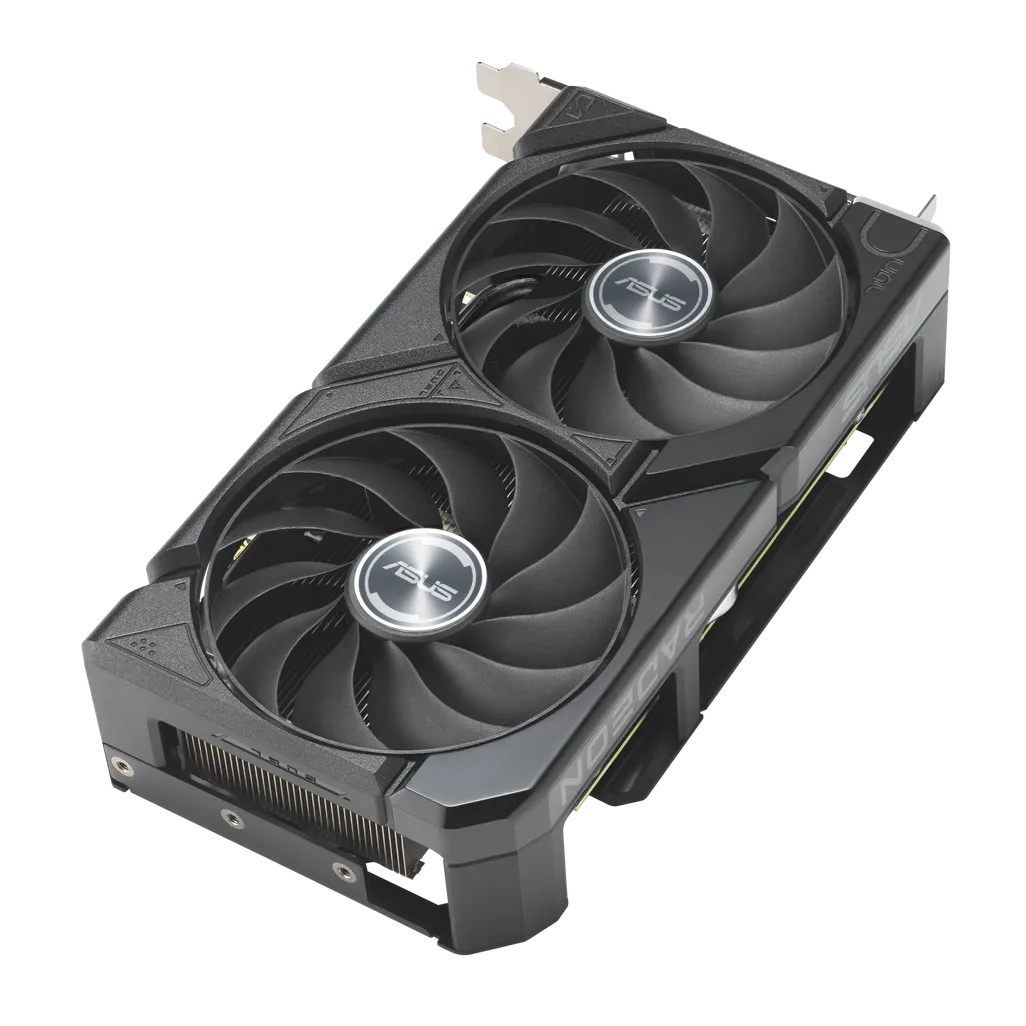

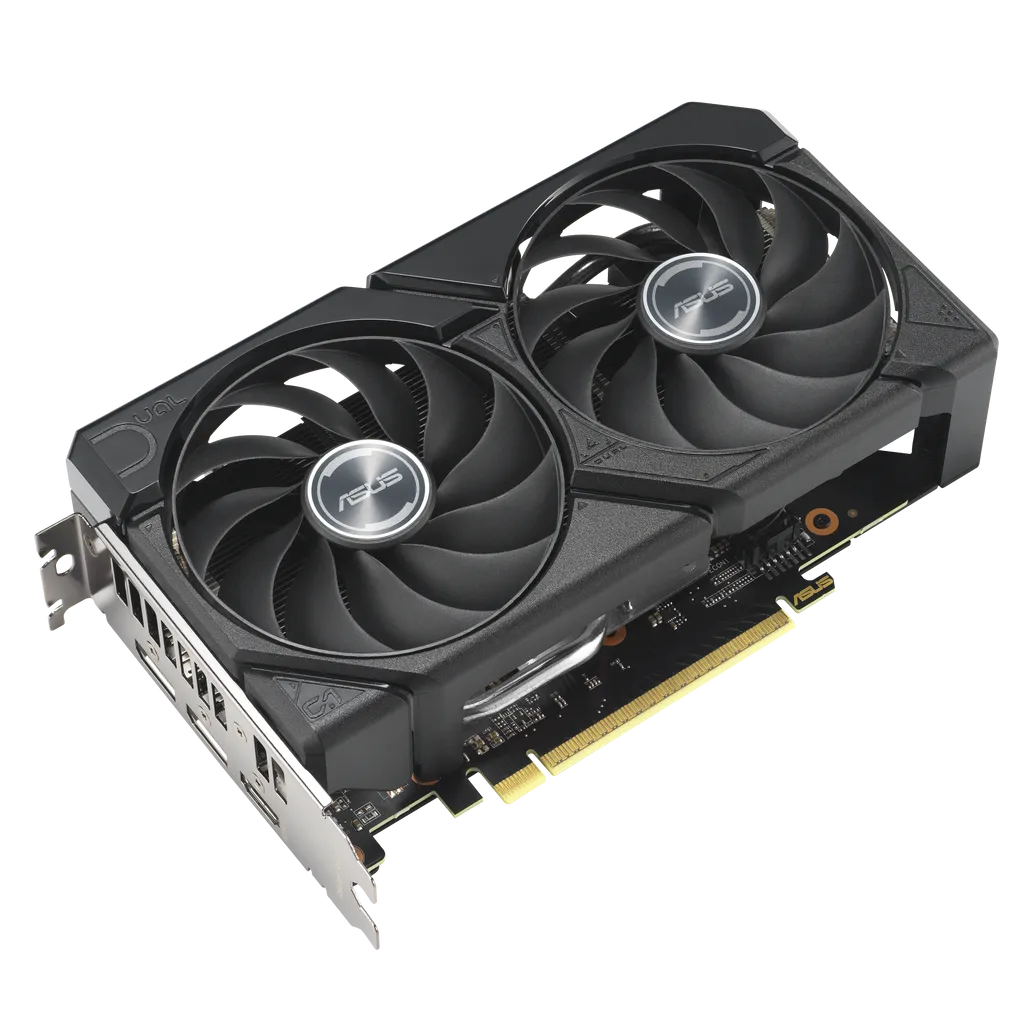

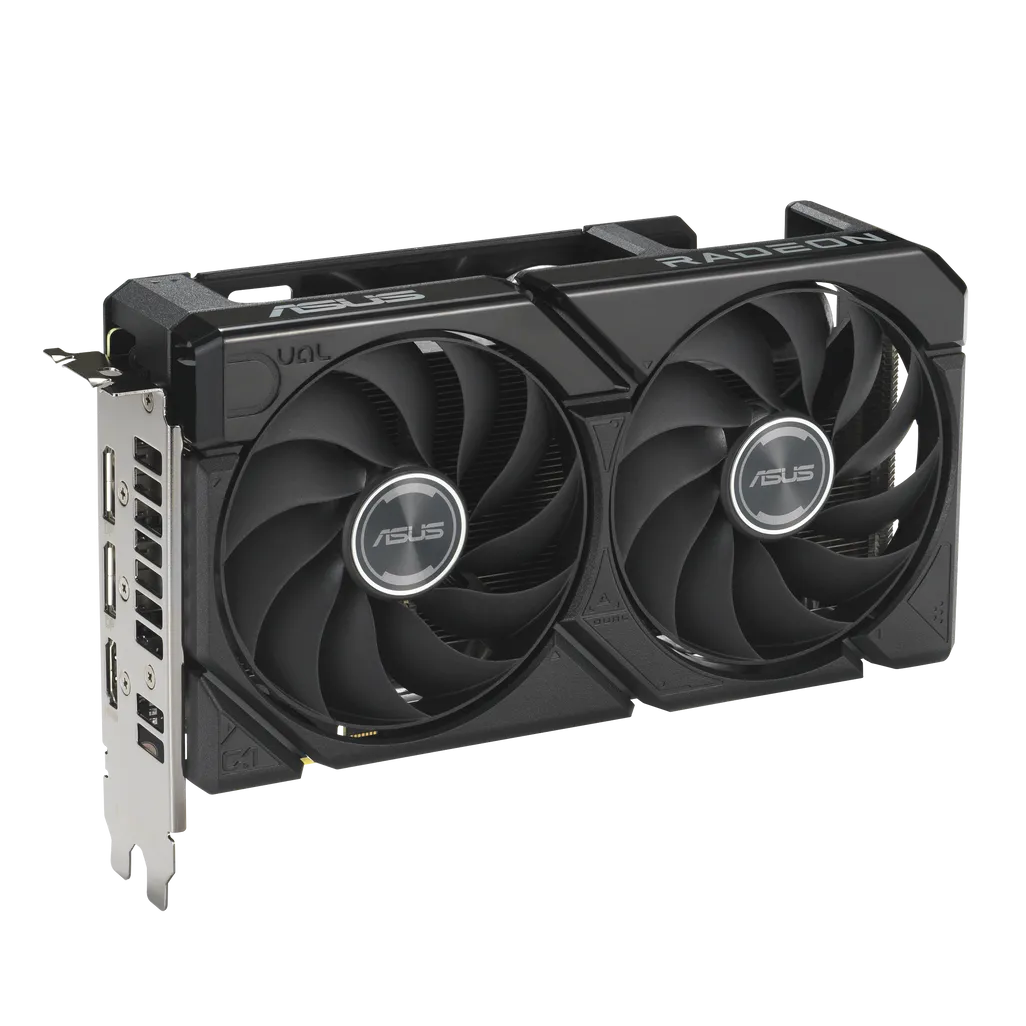

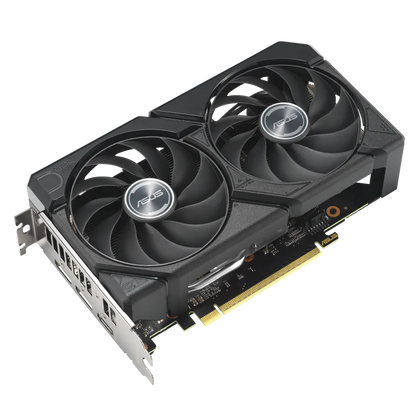

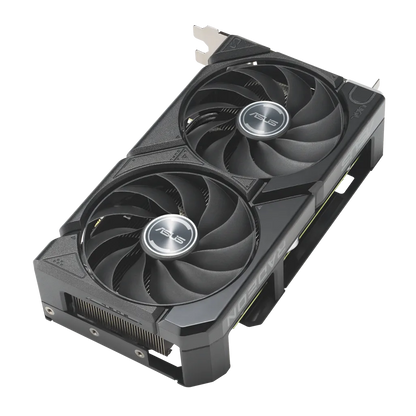

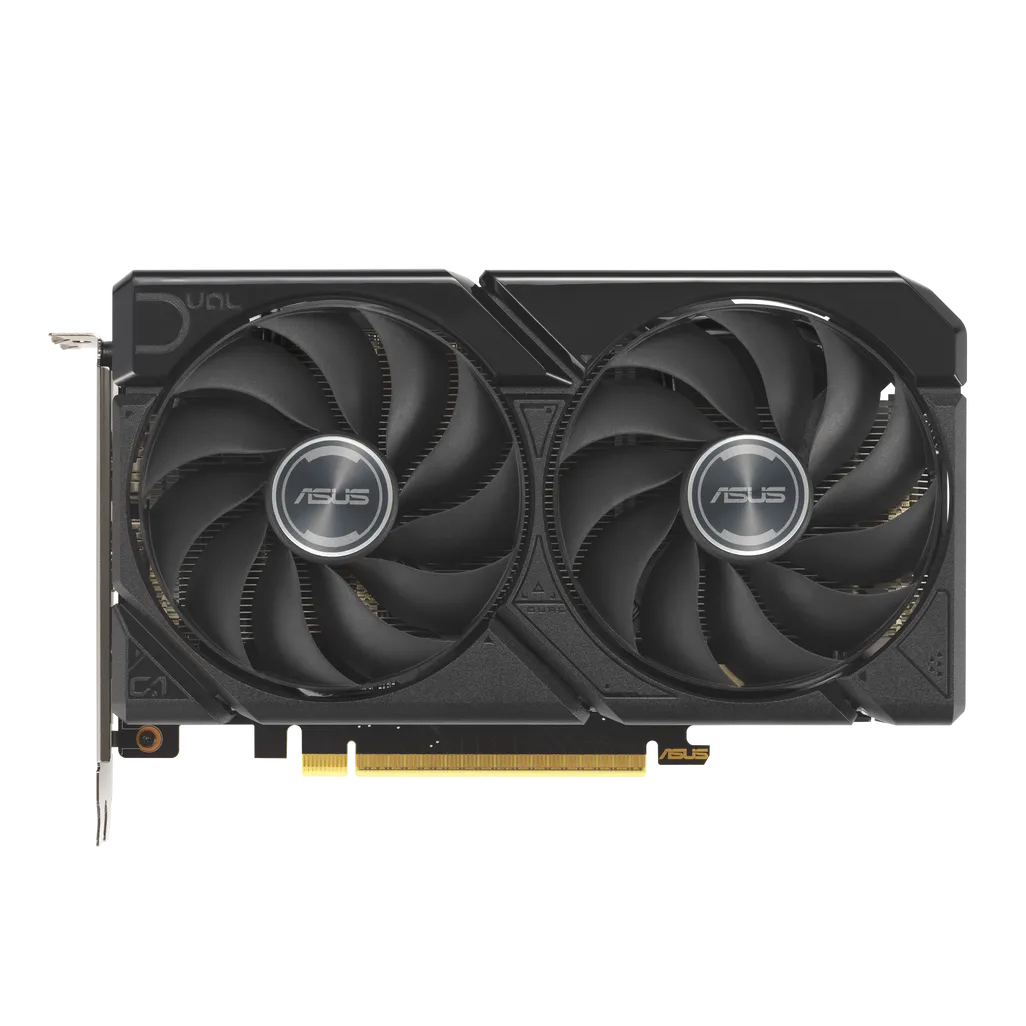

DUAL Cooling System Design with Axial-Tech Fans |
| Dual BIOS |
| ASUS Armoury Crate Utility |
| ASUS GPU Tweak III Utility |
| PCI Express 5.0 Support |
| AMD FreeSync Technology |
| DisplayPort 2.1 |
| HDMI 2.1 VRR |
| HDMI 4K Support |
| DisplayPort 2.1 8K Support |
| Simultaneous AV1 & HEVC Encode and Decode. |
| 8K60 AV1 / H265 / HEVC Decode |
| 8K60 AV1 / H265 / HEVC Encode |
| Video Streaming up to 8K |
| AMD HYPR-RX Game Optimisation |
| AMD Radeon FreeSync Premium |
| AMD Radeon Pro Drivers |
| AMD Radeon VR Ready Premium |
| AMD FidelityFX Super Resolution |
| AMD Radeon Image Sharpening |
| AMD Radeon Anti-Lag |
| AMD Radeon Chill |
| AMD Radeon Software |
| Hardware-Accelerated Ray Tracing |
| Power Requirements |
| Minimum Recommended Power Supply |
550W |

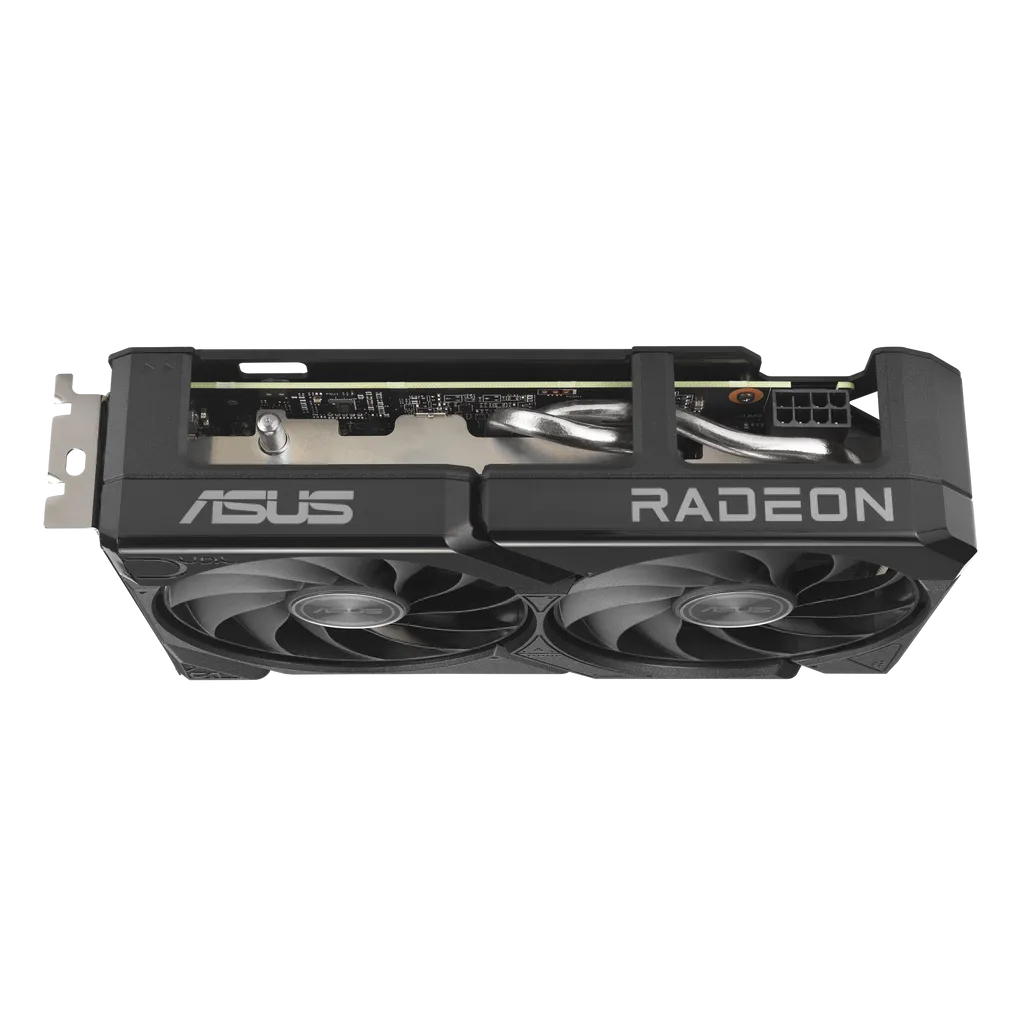

| Power Connector |

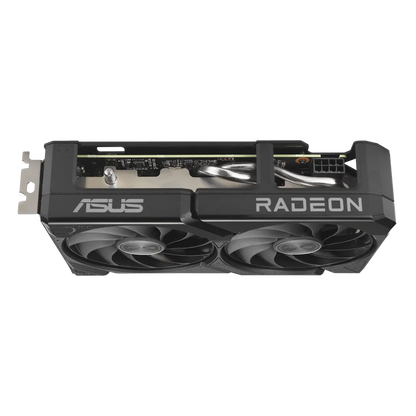

1x 8-Pin PCI PEG connector |
| General |
| Form Factor |
ATX |
| Slot Width |
2.5 Slot |
| Dimensions |
202 x 120 x 49mm (L x H x W) |
| Operating System Support |
Windows 11 64-bit |
| Linux x86_64 |
| Boxed Accessories |
1x Thank you card |
| 1x Speedsetup Manual |
| Warranty Information |
| Warranty |
3 Year Warranty |
