| SPECIFICATIONS |
| Brand |
ASUS |
| Series |
DUAL Series |
| Model |

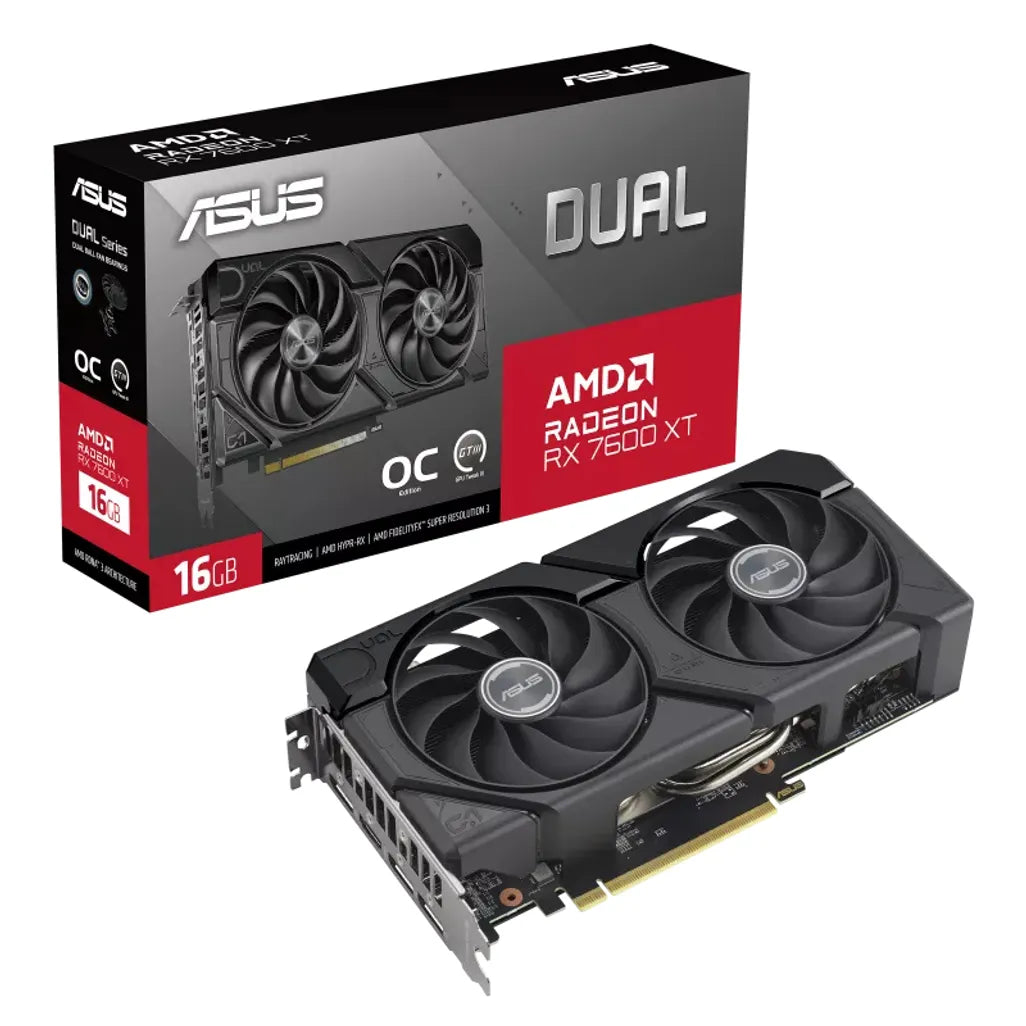

Radeon RX 7600 XT DUAL OC Edition (DUAL-RX7600XT-O16G) |
| Chipset |
| GPU |
Radeon RX 7600 XT |
| Chipset Manufacturer |
AMD |
| Interface |
PCIe 4.0 x8 |
| Compute Units |
32 Compute Units |
| Ray Accelerators |
32 |
| Stream Processors |
2048 Unified |
| Base Clock |
2029 MHz |
| Game Clock |
Up to 2493 MHz |
| Boost Clock |
Up to 2781 MHz |
| OC Mode Game Clock |
Up to 2513 MHz |
| OC Mode Boost Clock |
Up to 2801 MHz |
| GPU Architecture |
AMD RDNA 3 Architecture |
| GPU Design |
TSMC 6nm Monolithic Die |
| Memory |
| Infinity Cache |
32MB |
| Effective Memory Clock |
18Gbps |
| Memory Size |
16GB |
| Memory Interface |
128-bit |
| Memory Type |
GDDR6 |
| 3D API Support |
| DirectX |
Direct3D 12_2 Ultimate |
| OpenGL |
OpenGL 4.6 |
| OpenCL |
OpenCL 2.2 |
| Vulkan |
Vulkan 1.3 |
| Shader Model |
Shader Model 6.7 |
| Connectivity |
| Ports |

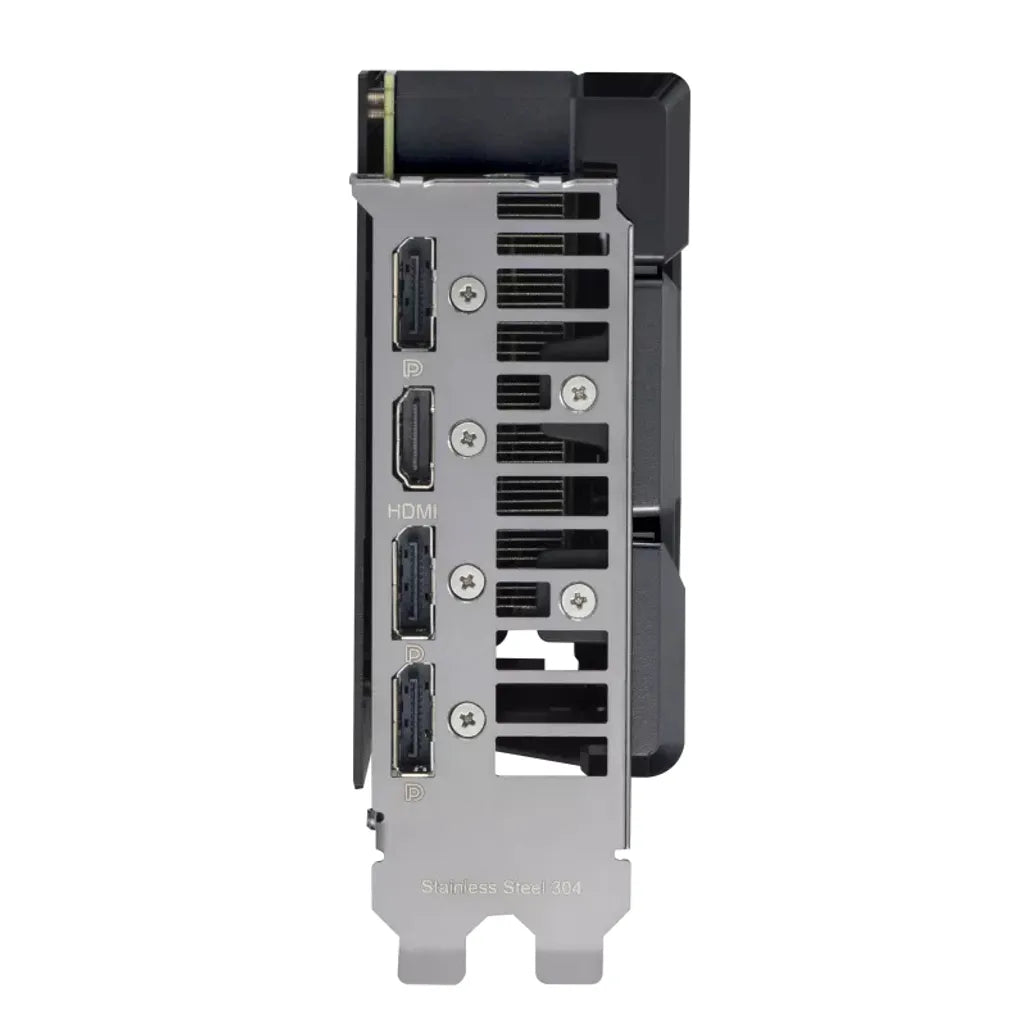

3x DisplayPort 2.1 with HDCP 2.3 |
| 1x HDMI 2.1 with HDCP 2.3 |
| HDMI 4K Support |
Yes, Up to UltraHD 4K 120Hz |
| VR Ready |
Yes, Radeon VR Ready Premium |
| General |
| Features |

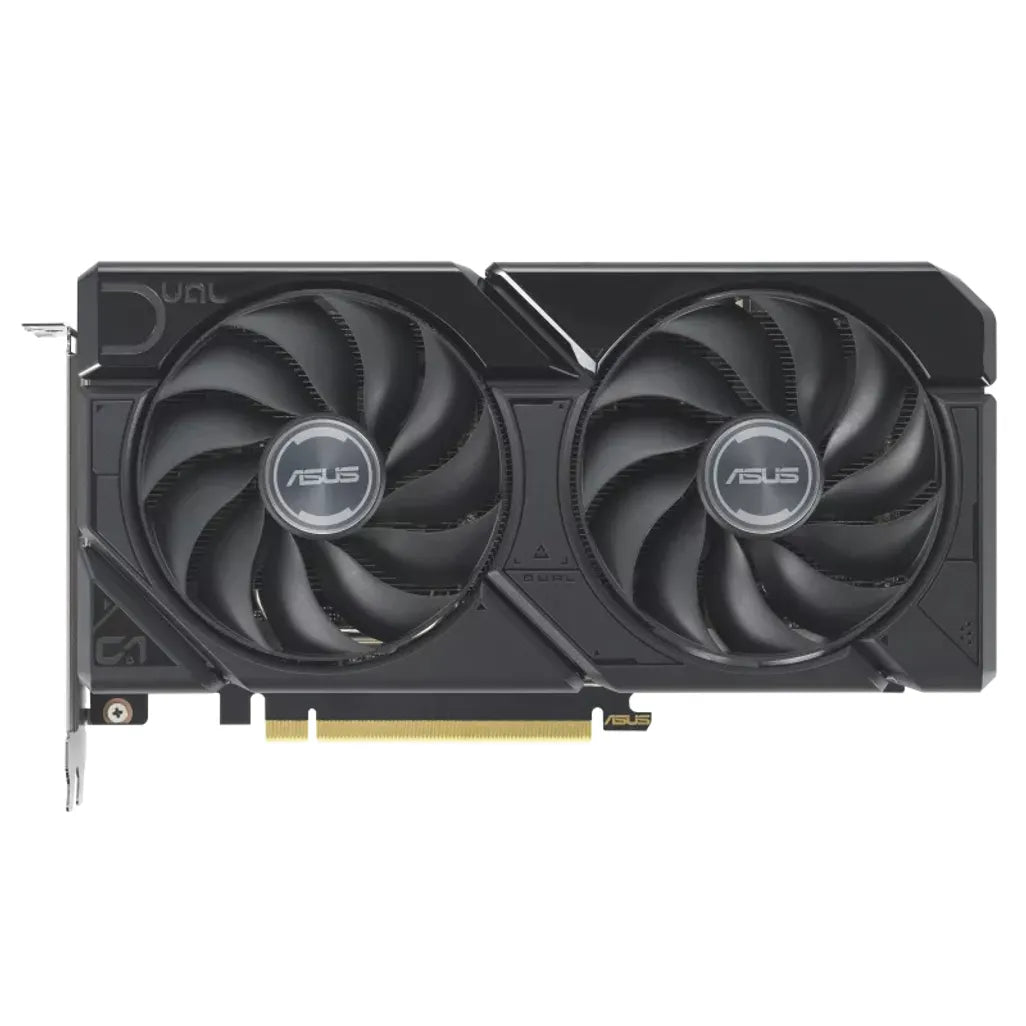

ASUS DUAL Cooling System with Axial-Tech Fan Design |

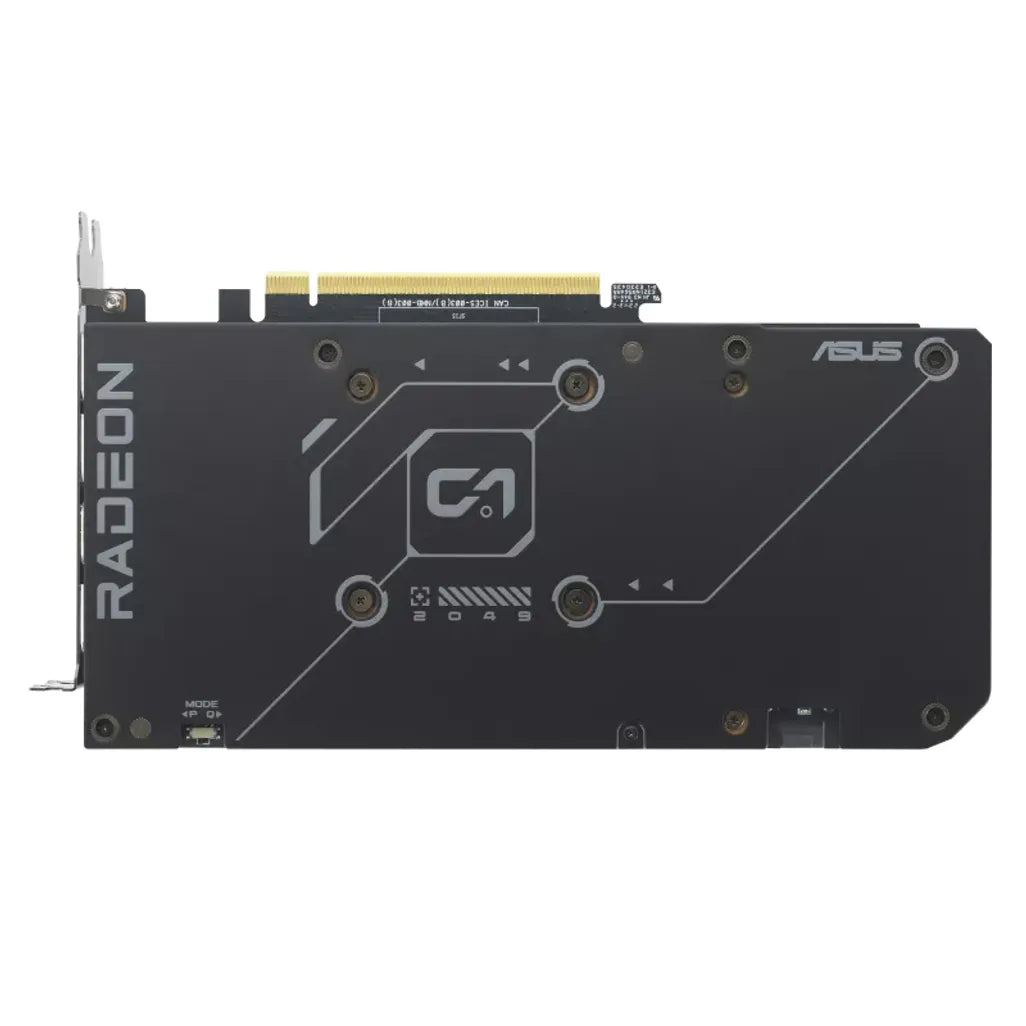

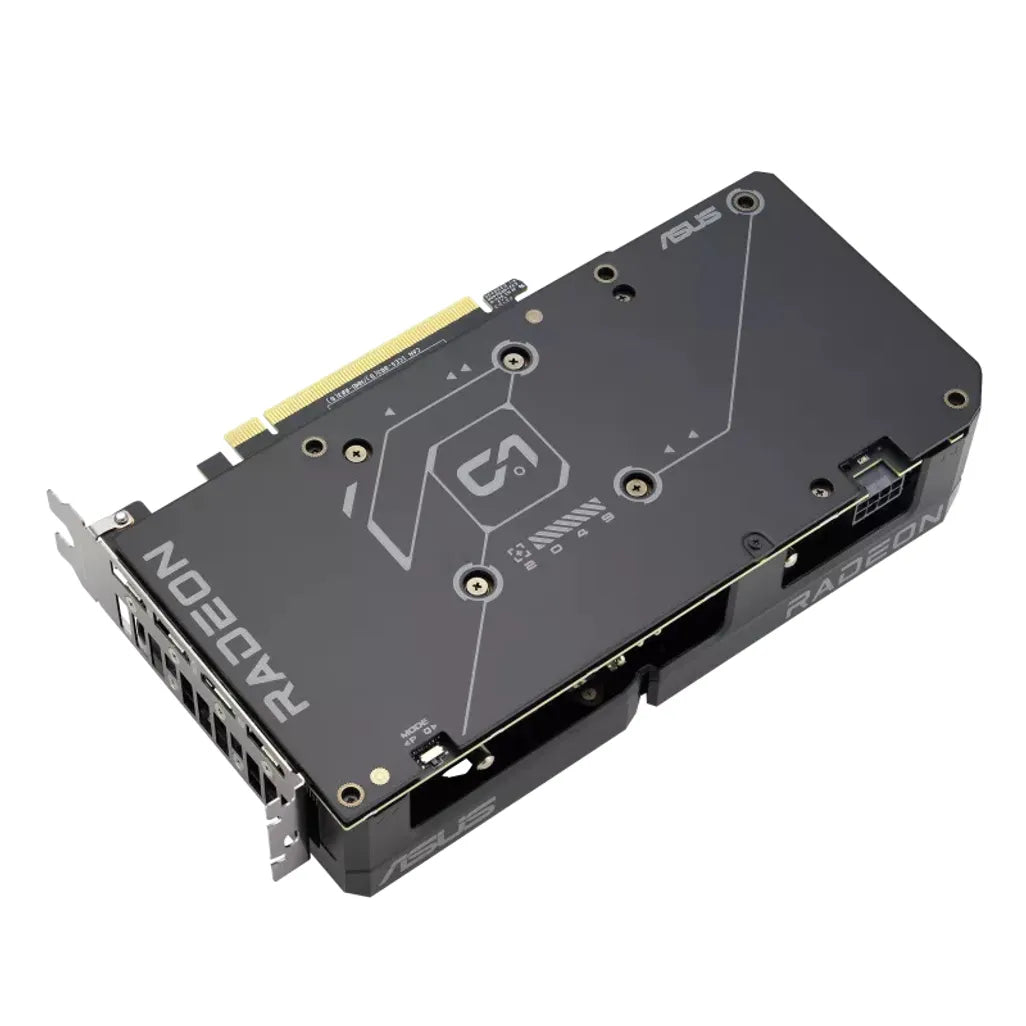

| Ventilated Metal Back Plate |
| ASUS GPU Tweak III Utility |
| PCI Express 4.0 Support |
| AMD FreeSync Technology |
| DisplayPort 2.1 |
| HDMI 2.1 VRR |
| HDMI 4K Support |
| DisplayPort 2.1 8K Support |
| Simultaneous AV1 & HEVC Encode and Decode. |
| 8K60 AV1 / H265 / HEVC Decode |
| 8K60 AV1 / H265 / HEVC Encode |
| Video Streaming up to 8K |
| AMD HYPR-RX Game Optimisation |
| AMD Radeon FreeSync Premium |
| AMD Radeon Pro Drivers |
| AMD Radeon VR Ready Premium |
| AMD FidelityFX Super Resolution |
| AMD Radeon Image Sharpening |
| AMD Radeon Anti-Lag |
| AMD Radeon Chill |
| AMD Radeon Software |
| Hardware-Accelerated Ray Tracing |
| Power Requirements |
| Total Graphics Power (TGP) |
190W |
| Minimum Recommended Power Supply |
600W |
| Power Connector |
2x 8-Pin PCI PEG connectors |
| General |
| Form Factor |
ATX |
| Slot Width |
2.2 Slot |
| Dimensions |
227.2 x 123.24 x 49.6mm (L x H x W) |
| Operating System Support |
Windows 10 64-bit |
| Windows 11 64-bit |
| Ubuntu x86 64-Bit |
| Linux x86_64 |
| Accessories |
1x Thank you card |
| 1x Speedsetup Manual |
| Warranty Information |
| Warranty |
3 Year Warranty |
