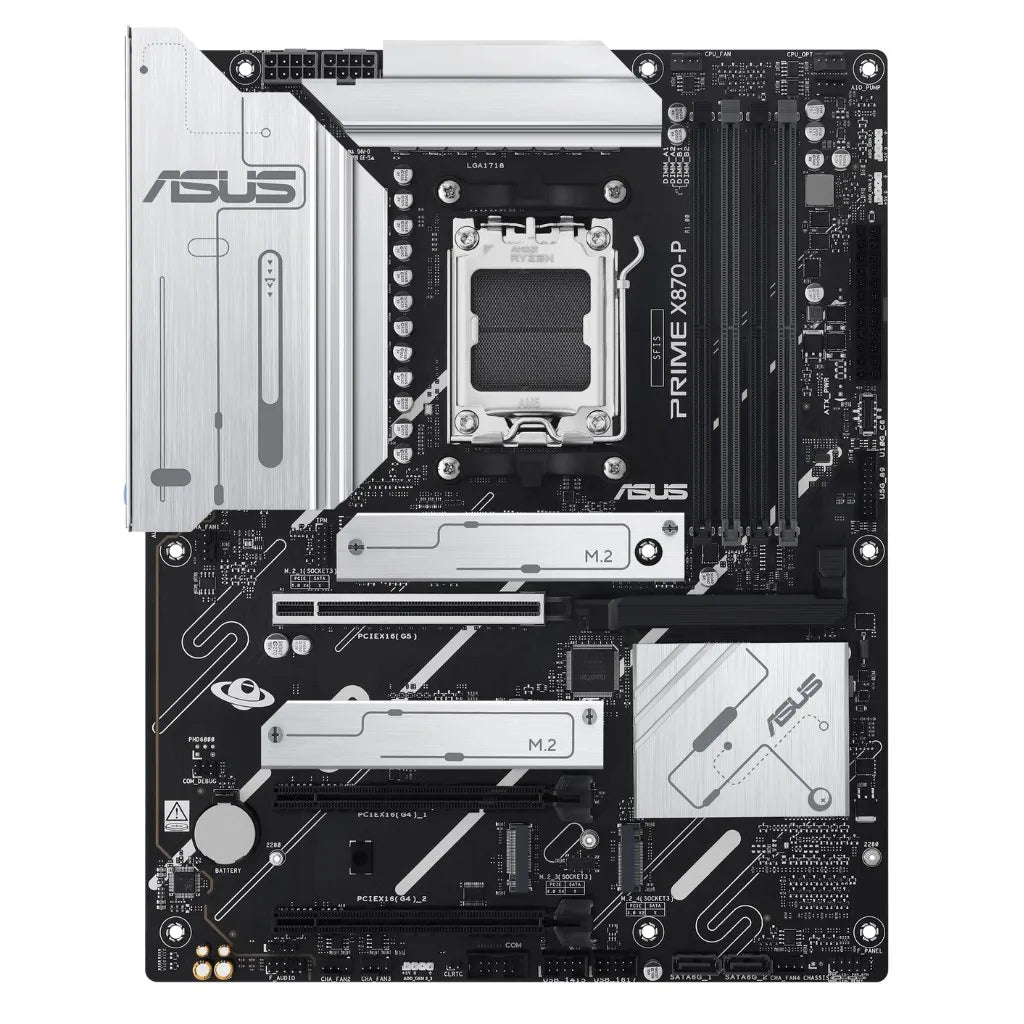

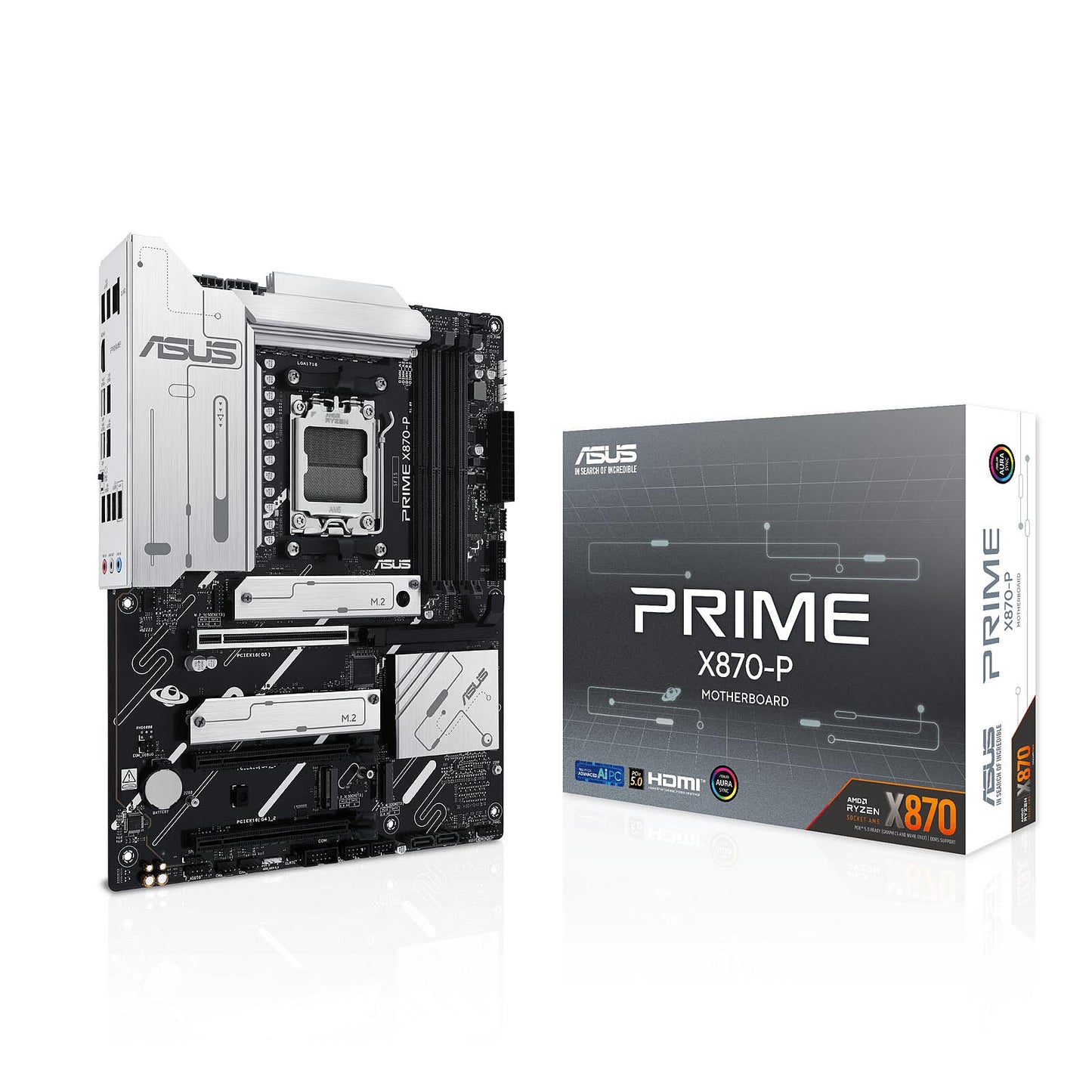

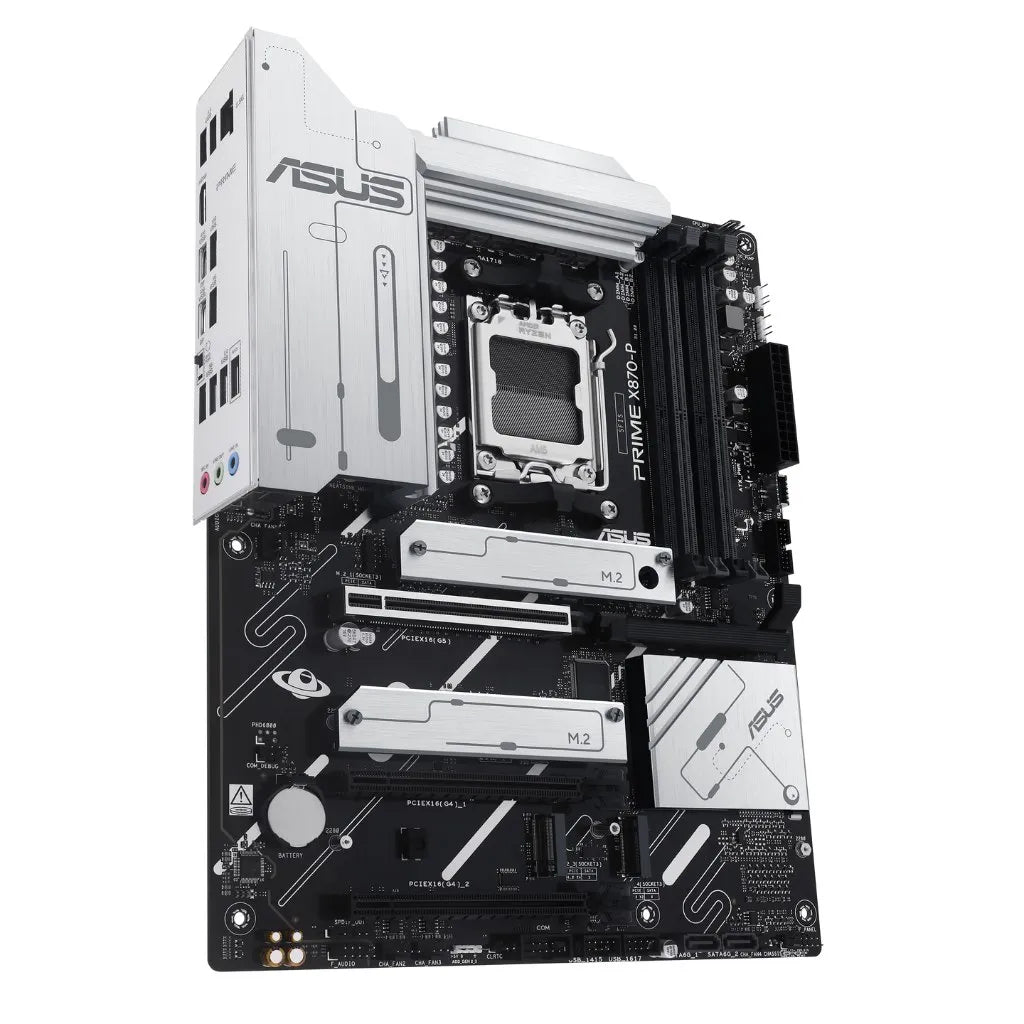

ASUS PRIME X870-P, AMD X870 Chipset, Socket AM5, ATX Desktop Motherboard

ASUS PRIME X870-P, AMD X870 Chipset, Socket AM5, ATX Desktop Motherboard

R 6,149.00
R 6,149.00
% OFF Sold out
Shipping calculated at checkout.

ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 9000 series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME X870-P motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications. Comprehensive memory tuning options are the cornerstone of PRIME motherboards. The PRIME X870-P maximizes the potential of your DDR5 modules, from entry-level to extreme-speed kits. For those looking to surpass stock DDR5 speeds, the PRIME X870-P offers extensive AMD Extended Profiles for Overclocking (EXPO) support and a wide array of UEFI settings for further performance tweaks. PRIME X870-P offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128 Gbps via PCIe 5.0, two that support 64 Gbps via PCIe 4.0, and one that supports PCIe 3.0. This enables quicker boot-up and app load times with OS or application drives.



CPU
  • AMD Socket AM5 for AMD Ryzen 7000 / 8000 / 9000 Series Desktop Processors
(Refer to www.asus.com for CPU support list.)
Chipset
  • AMD X870
Memory



  • 4 x DIMM slots, max. 192GB, DDR5
  • Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors
  • ECC and Non-ECC Un-buffered DIMM
  • Dual Channel Memory Architecture
  • Supports AMD EXTended Profiles for Overclocking (EXPO)
  • ASUS Enhanced Memory Profile (AEMP)
Onboard Graphics

Integrated Graphics Processor:

  • 1 x HDMI port
    • Supports 4K@60Hz as specified in HDMI 2.1.
  • 2 x USB4 (40Gbps) ports support USB Type-C display outputs
    • Supports max. 4K@60Hz as specified in DisplayPort 1.4a.
Audio





Realtek 7.1 Surround Sound High Definition Audio CODEC

  • Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
  • Supports up to 24-Bit/192 kHz playback
  • A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
  • Audio Features
    • Audio Shielding
    • Premium audio capacitors
    • Dedicated audio PCB layers
LAN

1 x Realtek 2.5Gb Ethernet

ASUS LANGuard
Wireless Communication Module









None
Expansion Slots

AMD Ryzen 9000 & 7000 Series Desktop Processors

  • 1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors

  • 1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD X870 Chipset

  • 2 x PCIe 4.0 x16 slots (support x1 mode)
    • PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.
Storage Interface

Total uppports 4 x M.2 slots and 2 x SATA 6Gb/s ports

AMD Ryzen 9000 & 7000 Series Desktop Processors

  • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors

  • M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

AMD X870 Chipset

  • M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    • PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when M.2_3 runs.
  • M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)
    • M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.
  • 2 x SATA 6Gb/s ports
    • M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.

AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10 and SATA RAID 0/1. RAID 5 Function is only supportted by AMD Ryzen 9000 series CPU.
USB

Rear USB (Total 10 ports)

  • 2 x USB4 (40Gbps) ports (2 x USB Type-C)
  • 1 x USB 10Gbps port (1 x Type-A)
  • 3 x USB 5Gbps ports (3 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 7 ports)

  • 1 x USB 10Gbps connector (supports USB Type-C)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports
Internal I/O Connectors

Fan and Cooling Related

  • 1 x 4-pin CPU Fan header
  • 1 x 4-pin CPU OPT Fan header
  • 1 x 4-pin AIO Pump header
  • 4 x 4-pin Chassis Fan headers

Power Related

  • 1 x 24-pin Main Power connector
  • 2 x 8-pin +12V CPU Power connectors

Storage Related

  • 4 x M.2 slots (Key M)
  • 2 x SATA 6Gb/s ports

USB

  • 1 x USB 10Gbps connector (supports USB Type-C)
  • 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
  • 2 x USB 2.0 headers support 4 additional USB 2.0 ports

Miscellaneous

  • 3 x Addressable Gen 2 headers
  • 1 x Clear CMOS header
  • 1 x COM Port header
  • 1 x Front Panel Audio header (F_AUDIO)
  • 1 x S/PDIF Out header
  • 1 x SPI TPM header (14-1 pin)
  • 1 x 10-1 pin System Panel header

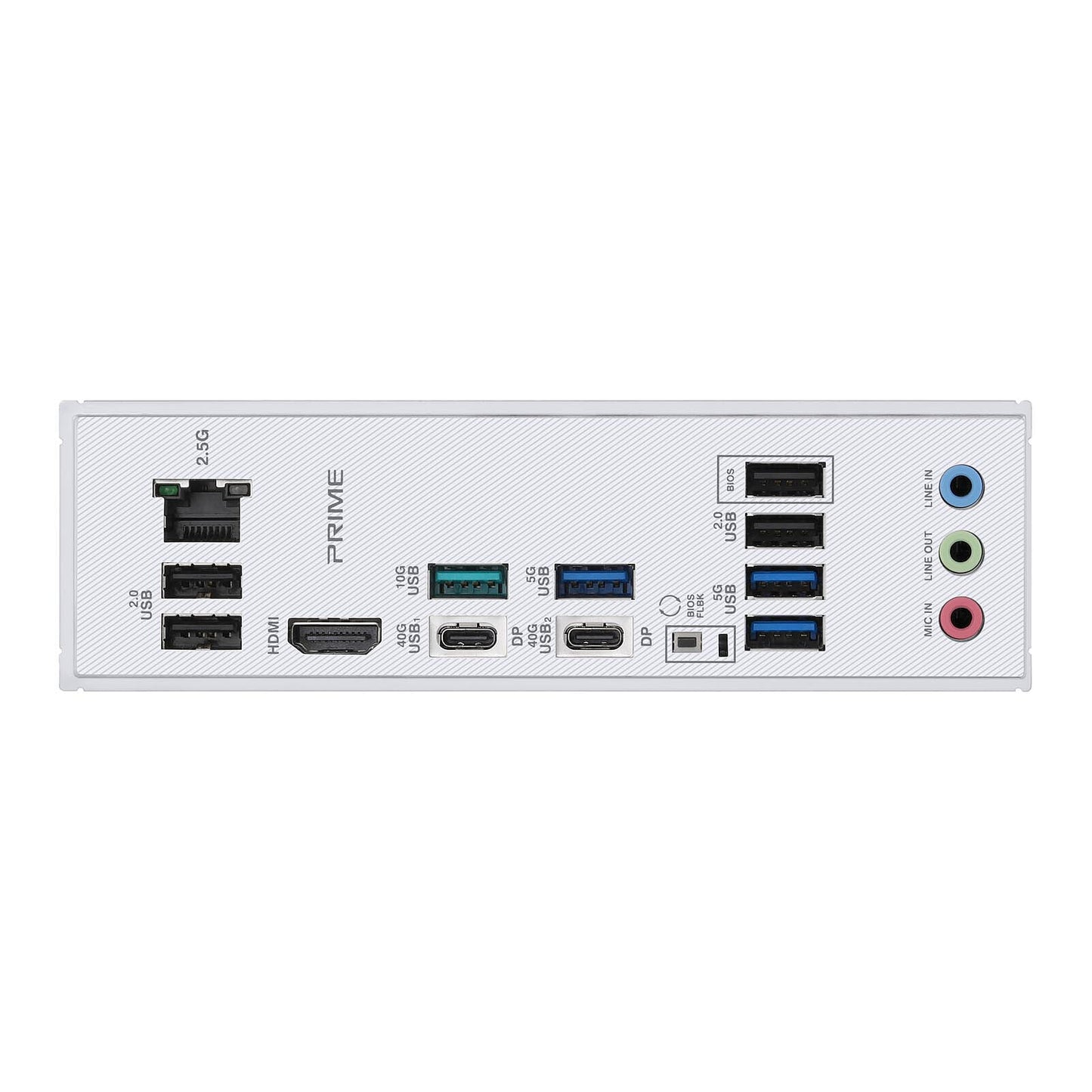

Back Panel Connectors
  • 2 x USB4 (40Gbps) ports (2 x USB Type-C)
  • 1 x USB 10Gbps port (1 x Type-A)
  • 3 x USB 5Gbps ports (3 x Type-A)
  • 4 x USB 2.0 ports (4 x Type-A)
  • 1 x HDMI port
  • 1 x Realtek 2.5Gb Ethernet port
  • 3 x Audio jacks
  • 1 x BIOS FlashBack button
I/O Controller
  • Not Specified
H/W Monitoring
  • Voltage detection
  • Temperature detection
  • Fan speed detection
  • Water cooling flow rate detection
  • Fan fail warning
  • Fan speed control
    * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
BIOS
  • 256 Mb Flash ROM, UEFI AMI BIOS
Unique Features

ASUS 5X PROTECTION III

  • DIGI+ VRM (- Digital power design with DrMOS)
  • LANGuard
  • Overvoltage protection
  • SafeSlot
  • Stainless-steel back I/O

ASUS Q-Design

  • M.2 Q-Latch
  • PCIe Slot Q-Release
  • Q-Dashboard
  • Q-DIMM
  • Q-LED Core
  • Q-Slot

ASUS Thermal Solution

  • Flexible M.2 heatsink
  • VRM heatsink design

ASUS EZ DIY

  • BIOS FlashBack button
  • BIOS FlashBack LED
  • ProCool
  • Pre-mounted I/O shield
  • SafeSlot

Aura Sync

  • Addressable Gen 2 headers
Bundled Software

Armoury Crate

  • Aura Creator
  • Aura Sync
  • Fan Xpert 4 (with AI Cooling II)
  • Power Saving

ASUS DriverHub

ASUS GlideX

TurboV Core

ASUS CPU-Z

Norton 360 for Deluxe (60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

  • ASUS CrashFree BIOS 3
  • ASUS EZ Flash 3
  • ASUS UEFI BIOS EZ Mode
  • ASUS MyHotkey
Operating System
  • Support for Windows 10 64-bit / Windows 11 64-bit
Form Factor
  • ATX Form Factor, 30.5cm x 24.4cm
