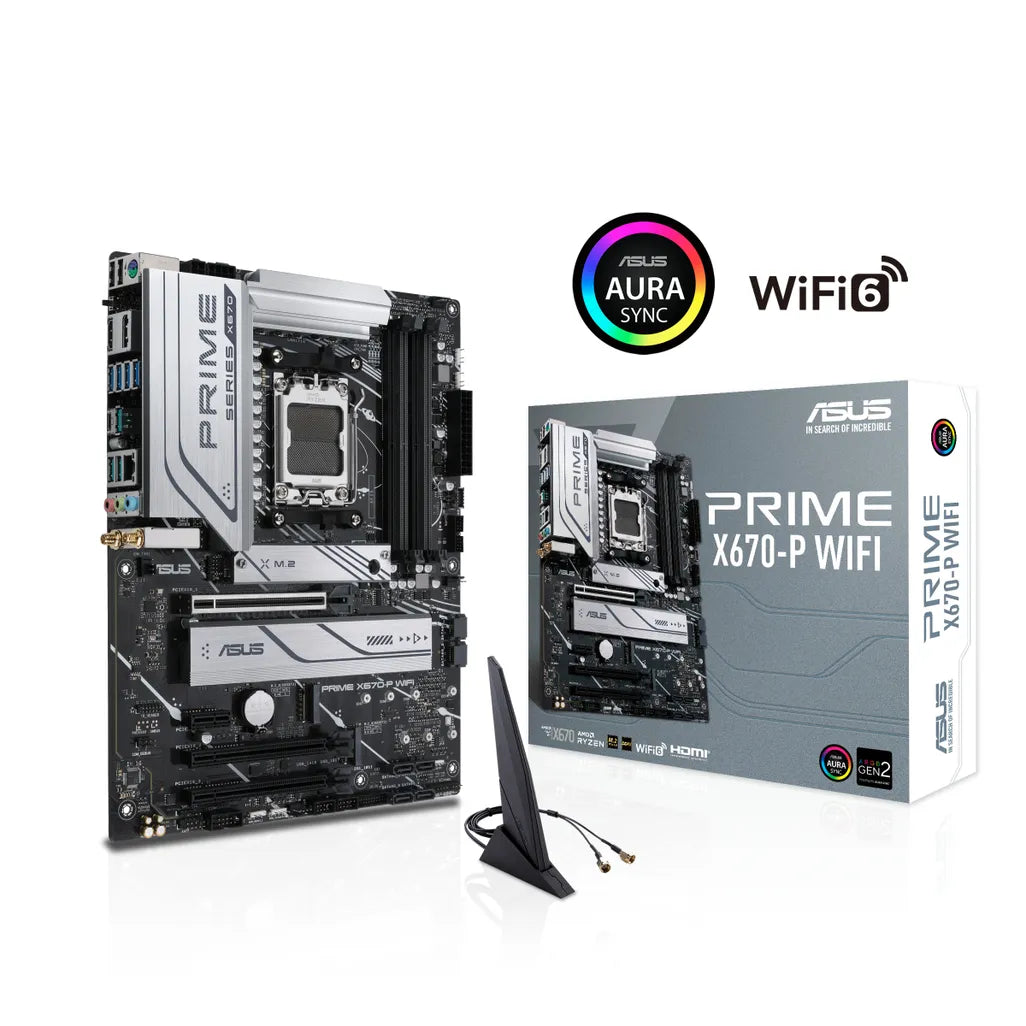

ASUS PRIME X670-P WIFI AMD X670 Ryzen Socket AM5 ATX Desktop Motherboard
ASUS PRIME X670-P WIFI AMD X670 Ryzen Socket AM5 ATX Desktop Motherboard
Regular price
R 6,699.00
Regular price
Sale price
R 6,699.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | PRIME |
| Model | PRIME X670-P WIFI (90MB1BV0-M0EAY0) |
| CPU Support | AMD Socket AM5 for AMD Ryzen 7000 Series Desktop Processors |
| Chipset | AMD X670 |
| Memory Support | |
| AMD Ryzen 7000 Series | 4 x DIMM, Max. 128GB, 6400 (OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600/ 5400/ 5200/ 5000/ 4800MHz, Un-buffered Memory |
| Dual Channel Memory Architecture | |
| Supports AMD EXTended Profiles for Overclocking (EXPO) | |
| OptiMem II | |
| * Supported memory types, data rate (Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list. | |
| * Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function | |
| Video | |
| HDMI | 1x HDMI 2.1, maximum resolution of 4K 60Hz * |
| DisplayPort | 1x DisplayPort 1.4, maximum resolution of 8K 60Hz * |
| **Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| AMD X670 Chipset | 2x PCIe 4.0 x16 Physical, x4 Electrical Slot |
| 1x PCIe 3.0 x1 Physical Slot | |
| Storage | |
| CPU Direct | M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode) |
| M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode) | |
| AMD X670 Chipset | M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 ) | |
| 6 x SATA 6Gb/s ports ** | |
| AMD RAID Xpert2 Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10. | |
| ** The PCIe 3.0 x1 slot shares bandwidth with the SATA6G_3/4 ports. When a device is installed on the PCIe 3.0 x1 slot, the SATA6G_3/4 ports cannot be used. | |
| Networking | |
| LAN | 1x Realtek 2.5 Gigabit Ethernet RJ-45 LAN |
| WiFi | AMD WiFi 6E 2x2 MIMO Tri-Band Adapter |
| Bluetooth | Bluetooth 5.2 |
| Audio | |
| Audio Codec | Realtek 7.1 Surround Sound High Definition Audio CODEC |
| Codec Features | Impedance sense for front and rear headphone outputs |
| Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Supports up to 24-Bit/192 kHz playback | |
| Audio Shielding | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| Connectivity | |
| Ports | 1x USB 3.2 Gen 2x2 port (1 x USB Type-C) |
| 3x USB 3.2 Gen 2 ports (3 x Type-A) | |
| 4x USB 3.2 Gen 1 ports (4 x Type-A) | |
| 2x USB 2.0 ports (2 x Type-A) | |
| 1x DisplayPort | |
| 1x HDMI port | |
| 1x Wi-Fi Module | |
| 1x Realtek 2.5Gb Ethernet port | |
| 3x Audio jacks | |
| 1x BIOS FlashBack button | |
| 1x PS/2 Keyboard/Mouse combo port | |
| Buttons | 1x BIOS FlashBack button |
| General | |
| Internal Connectors | Fan and Cooling related |
| 1 x 4-pin CPU Fan header | |
| 1 x 4-pin CPU OPT Fan header | |
| 1 x 4-pin AIO Pump header | |
| 3x 4-pin Chassis Fan headers | |
| Power related | |
| 1x 24-pin Main Power connector | |
| 1x 8-pin 12V Power connector | |
| 1x 4-pin 12V Power connector | |
| Storage related | |
| 3x M.2 slots (Key M) | |
| 6x SATA 6Gb/s ports | |
| USB | |
| 1x USB 3.2 Gen 1 connector (supports USB Type-C) | |
| 2x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports | |
| 2x USB 2.0 headers support additional 4 USB 2.0 ports | |
| Miscellaneous | |
| 3x Addressable Gen 2 headers | |
| 2x Aura RGB headers | |
| 1x Clear CMOS header | |
| 1x COM Port header | |
| 1x Front Panel Audio header (AAFP) | |
| 1x S/PDIF Out header | |
| 1x SPI TPM header (14-1pin) | |
| 1x 20-5 pin System Panel header | |
| 1x Thunderbolt header | |
| LED Displays | N/A |
| BIOS | 256MB UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |
| Form Factor | ATX Form Factor, 304.8 x 243.84 mm (H x W) |
| Operating System Support | Windows 11 64-bit |
| Box Contents | ASUS PRIME X670-P WIFI Motherboard |
| 2x SATA 6Gb/s cables | |
| 1x ASUS Wi-Fi moving antennas | |
| 1x I/O Shield | |
| 1x Rubber Package for M.2 | |
| 2x Screw Packages for M.2 SSD | |
| 1x User guide | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
