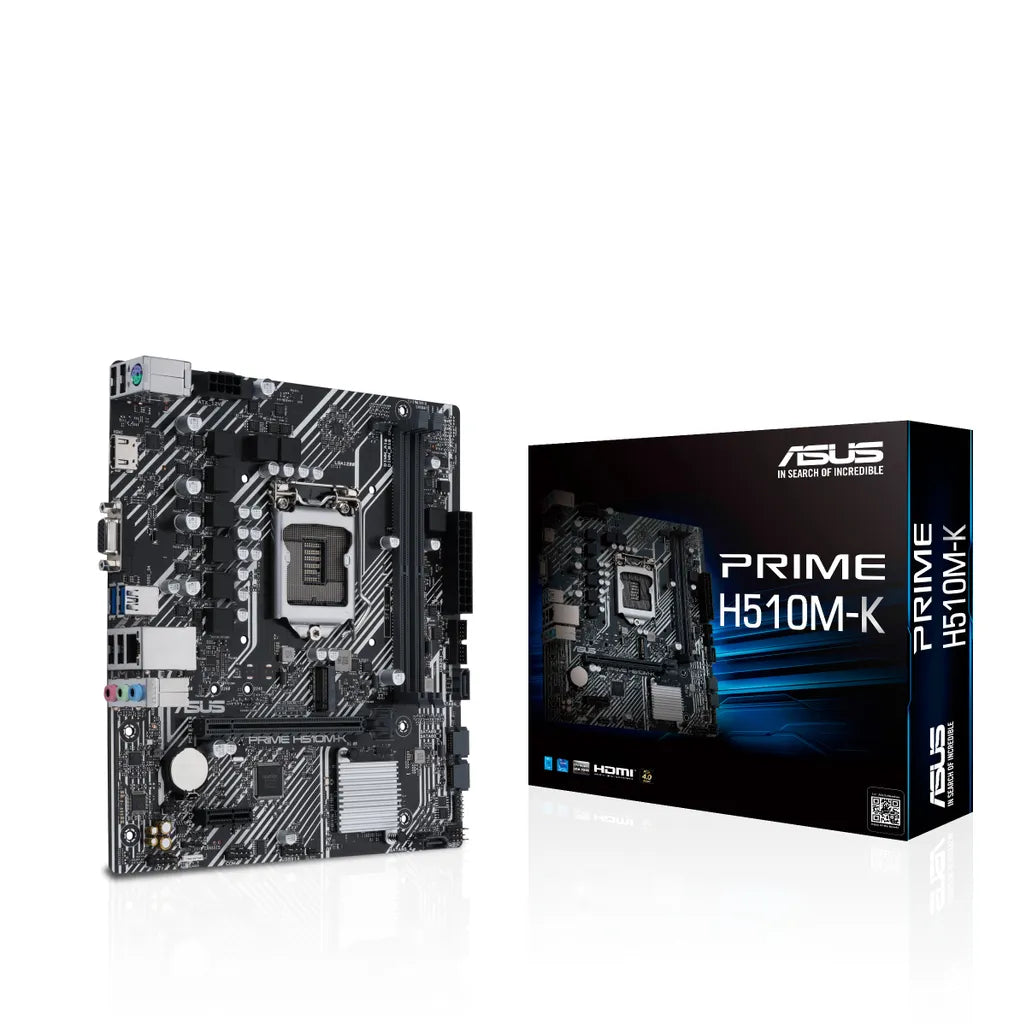

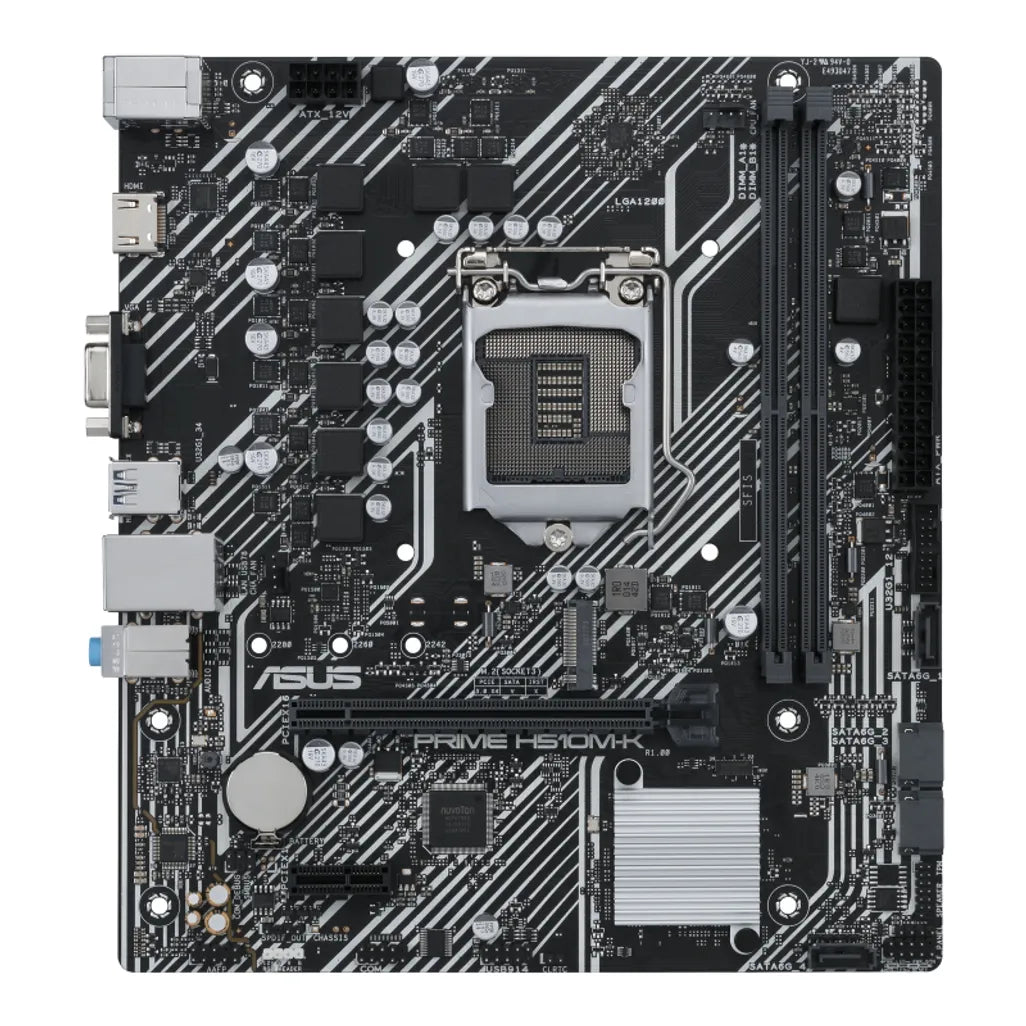

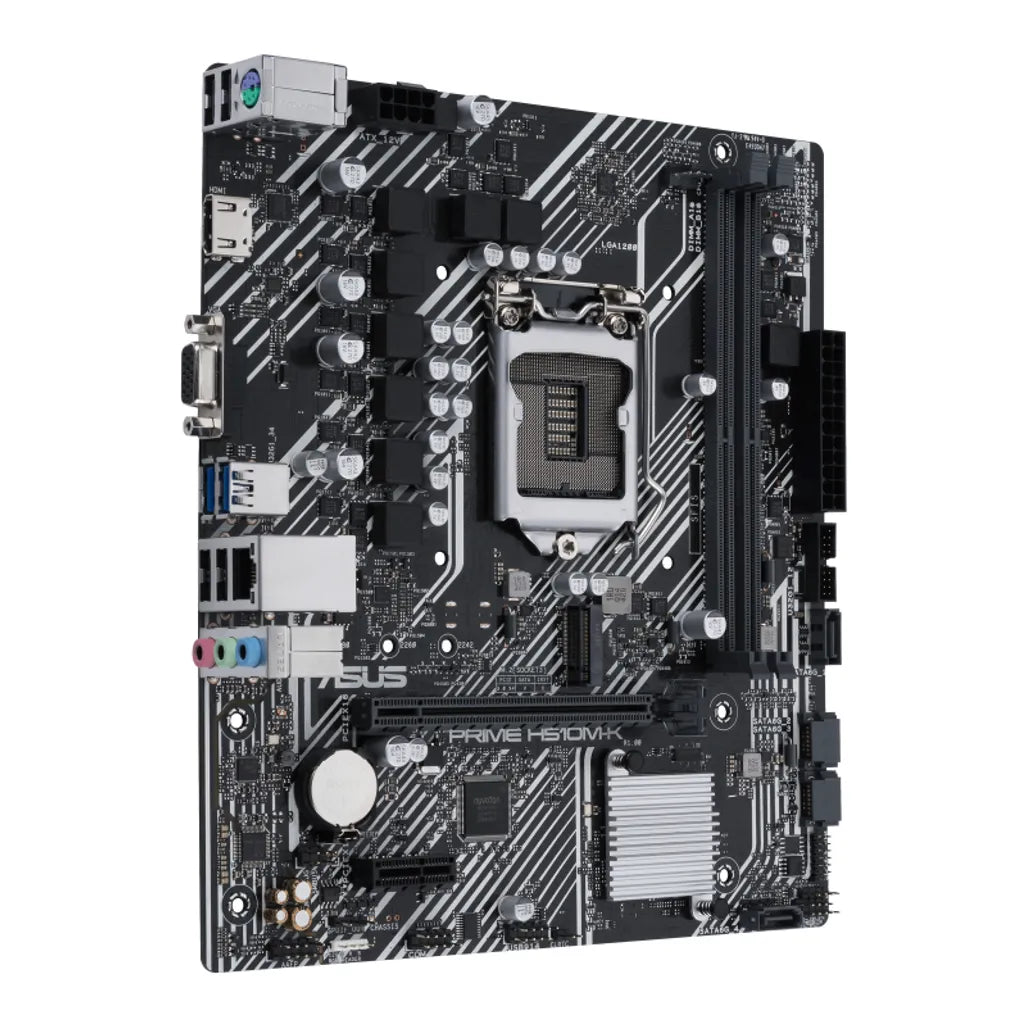

ASUS Prime H510M-K Intel H510 Rocket Lake LGA1200 Micro-ATX Desktop Motherboard
ASUS Prime H510M-K Intel H510 Rocket Lake LGA1200 Micro-ATX Desktop Motherboard
Regular price
R 1,499.00
Regular price
Sale price
R 1,499.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | Prime H510M-K |
| Model | 90MB17N0-M0EAY0 |
| CPU | Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors |
| Supports Intel 14 nm CPU | |
| Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0 | |
| Chipset | Intel H510 |
| Memory | DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory* |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) | |
| * 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz. | |
| * 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively. | |
| Graphics | * Graphics specifications may vary between CPU types. |
| ** Only Intel 11th Gen processors support HDMI 2.0 with max. resolution of 4K@60Hz, others will only support HDMI 1.4 with max. resolution of 4K@30Hz. | |
| Expansion Slots | Intel 11th & 10th Gen Processors |
| 1 x PCIe 4.0/3.0 x16 slot | |
| - Intel 11th Gen processors support PCIe 4.0 x16 | |
| - Intel 10th Gen processors support PCIe 3.0 x16 | |
| Intel H510 Chipset | |
| - 1 x PCIe 3.0 x1 slot | |
| Storage | Intel H510 Chipset |
| - M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) | |
| - 4 x SATA 6Gb/s ports | |
| - * The M.2 slot Shares Bandwidth with the SATA6G_2 port. When a Device in SATA Mode is Installed on the M.2 Slot, the SATA6G_2 Port Cannot be Used. | |
| USB | 2 x USB 3.2 Gen 1 Type-A Ports |
| 4 x USB 2.0 Type-A Ports | |
| 1 x USB 3.2 Gen 1 Header Supports Additional 2 USB 3.2 Gen 1 Ports | |
| 1 x USB 2.0 Header Supports Additional 2 USB 2.0 Ports | |
| Audio | Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC* |
| - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| - Supports up to 24-Bit/192 kHz playback" | |
| Audio Features | |
| - Audio Shielding | |
| - Dedicated audio PCB layers | |

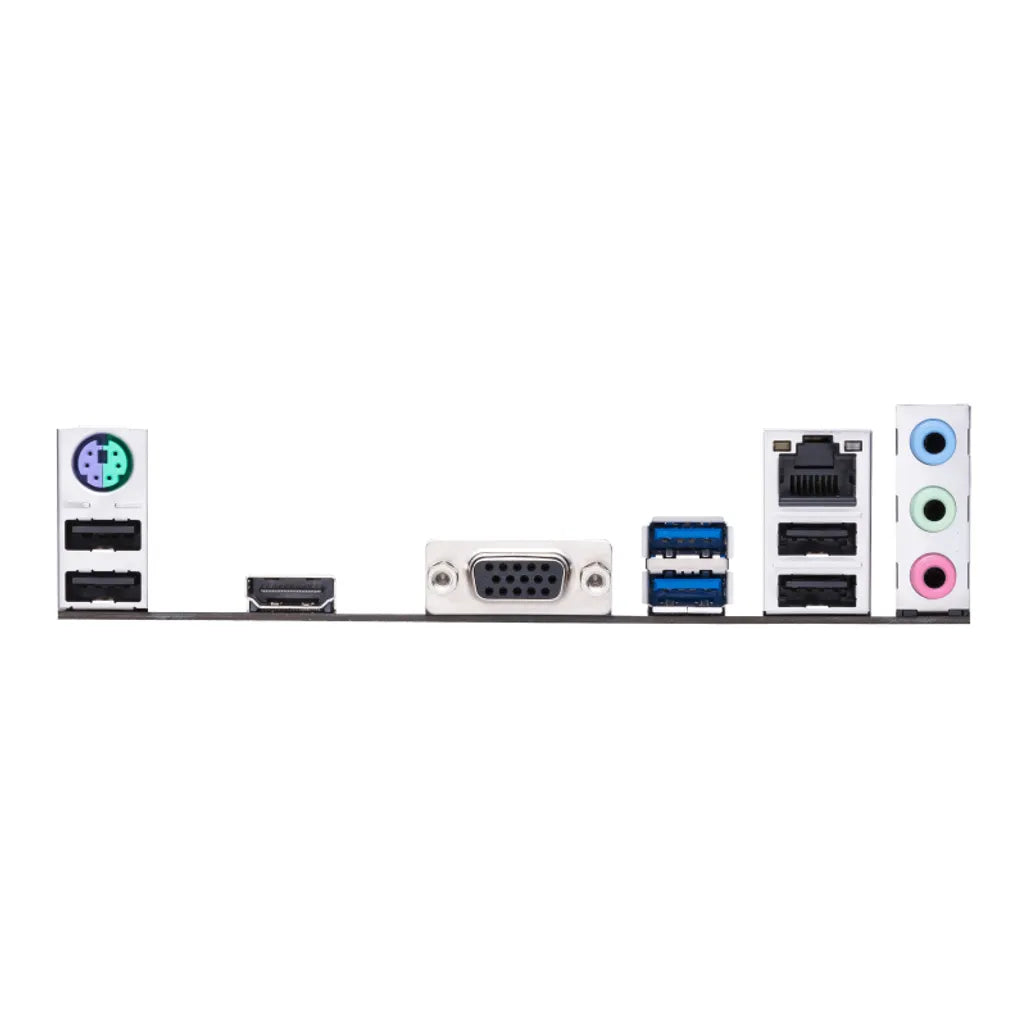

| Back Panel I/O Ports | 2 x USB 3.2 Gen 1 Type-A Ports |
| 4 x USB 2.0 Type-A Ports | |
| 1 x D-Sub Port | |
| 1 x HDMI Port | |
| 1 x Intel I219-V 1Gb Ethernet Port | |
| 3 x Audio Jacks | |
| 1 x PS/2 Keyboard/Mouse Combo Port | |
| Internal I/O Connectors | Fan & Cooling Related |
| 1 x 4-pin CPU Fan Header | |
| 1 x 4-pin Chassis Fan Header | |
| Power Related | |
| 1 x 24-pin Main Power connector | |
| 1 x 8-pin 12V Power connector | |
| Storage related | |
| 1 x M.2 slot (Key M) | |
| 4 x SATA 6Gb/s ports | |
| USB | |
| 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports | |
| 1 x USB 2.0 header supports additional 2 USB 2.0 ports | |
| Miscellaneous | |
| 1 x RGB header | |
| 1 x Clear CMOS header | |
| 1 x COM Port header | |
| 1 x Front Panel Audio header (AAFP) | |
| 1 x S/PDIF Out header | |
| 1 x Speaker header | |
| 1 x SPI TPM header (14-1pin) | |
| 1 x 10-1 pin System Panel Header | |
| Special Features | ASUS 5X PROTECTION III |
| - DIGI VRM | |
| - LANGuard | |
| - Overvoltage Protection | |
| - SafeSlot Core | |
| - Stainless-Steel Back I/O | |
| ASUS Q-Design | |
| - Q-DIMM | |
| - Q-Slot | |
| ASUS Thermal Solution | |
| - Aluminium heatsink design | |
| ASUS Lighting Control | |
| - RGB header | |
| Software Features | ASUS Exclusive Software |
| Armoury Crate | |
| AI Suite 3 | |
| - Performance And Power Saving Utility | |
| - TurboV EVO | |
| - EPU | |
| - DIGI VRM | |
| - Fan Xpert | |
| - EZ update | |
| ASUS CPU-Z | |
| AI Charger | |
| DAEMON Tools | |
| Norton Anti-virus software (Free Trial version) | |
| WinRAR | |
| UEFI BIOS | |
| - ASUS EZ DIY | |
| - ASUS CrashFree BIOS 3 | |
| - ASUS EZ Flash 3 | |
| - ASUS UEFI BIOS EZ Mode | |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Manageability | WOL by PME, PXE |

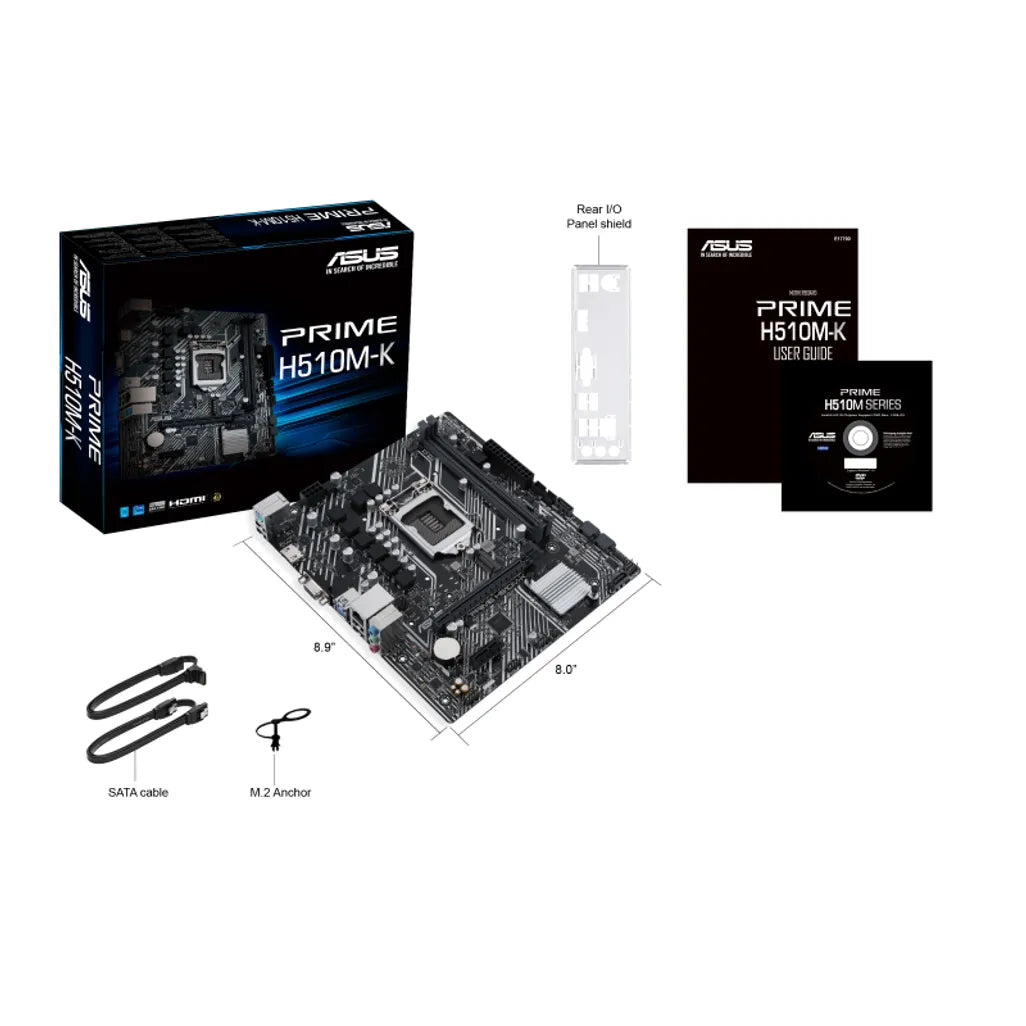

| Accessories | 2 x SATA 6Gb/s cables |
| 1 x I/O Shield | |
| 1 x M.2 ANCHOR | |
| 1 x Support DVD | |
| 1 x User manual | |
| Operating System | Windows 10 |
| Form Factor | Micro ATX |
| 22.6cm x 20.3cm | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
