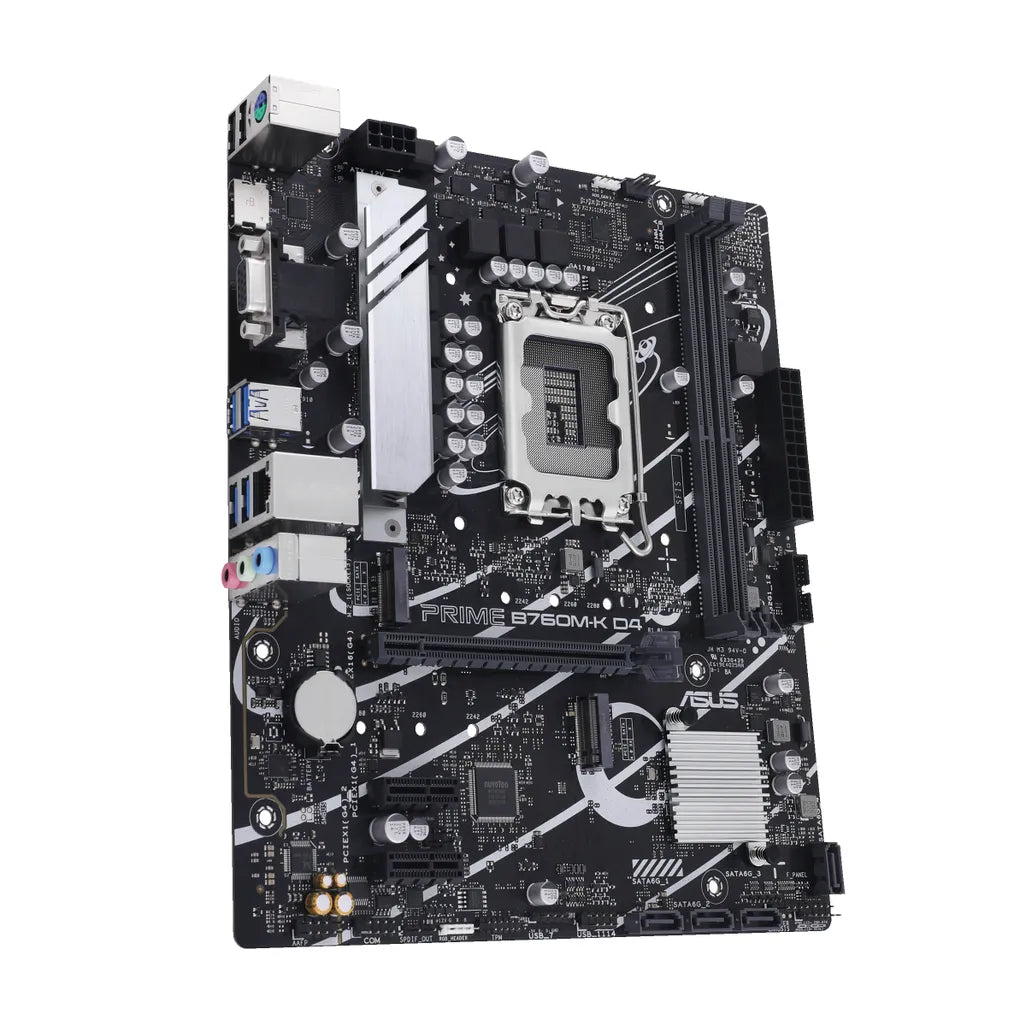

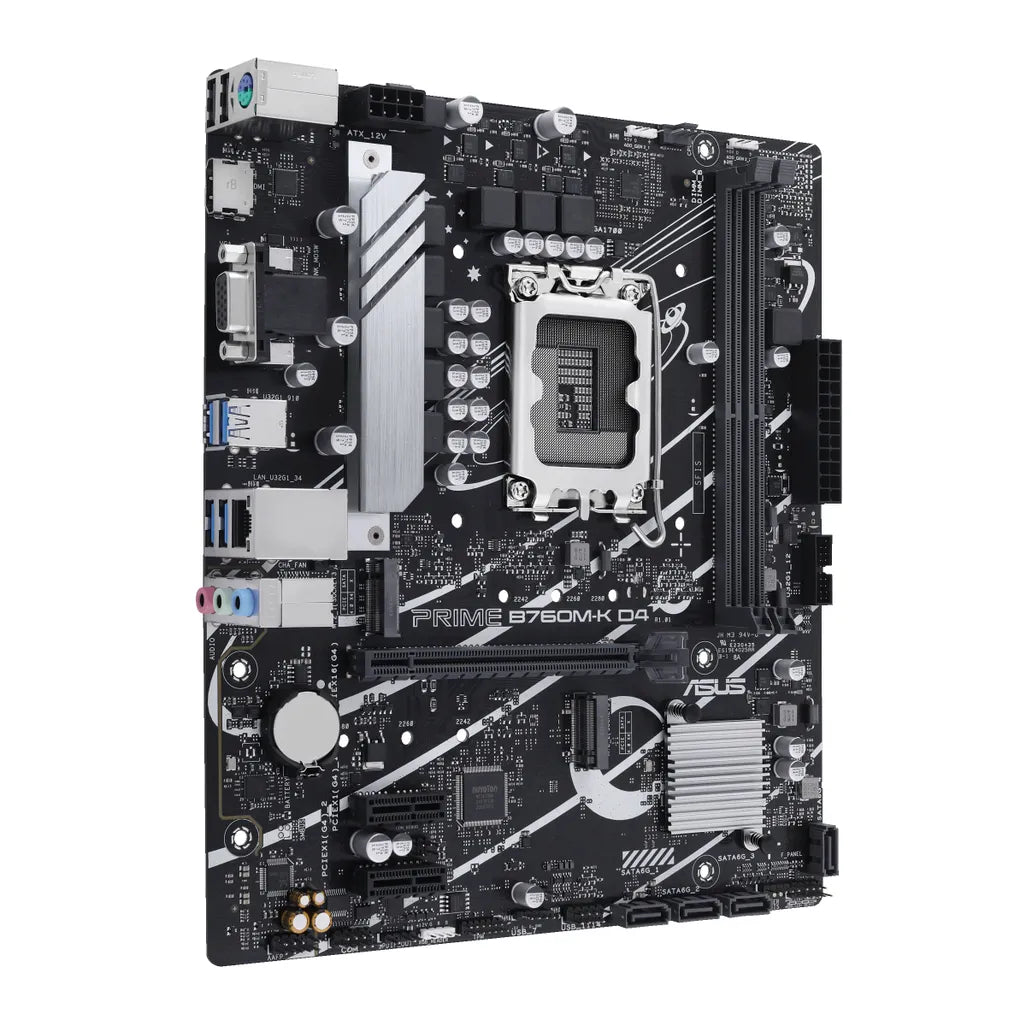

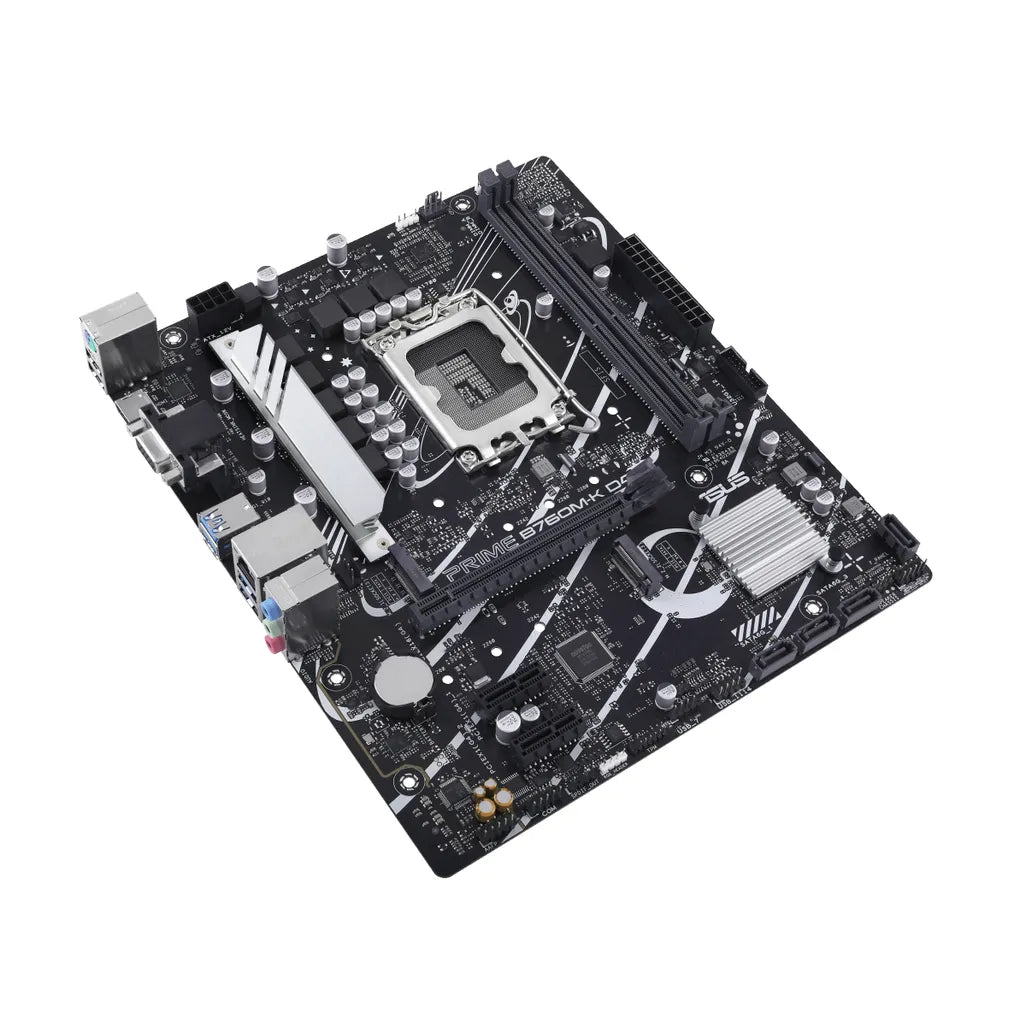

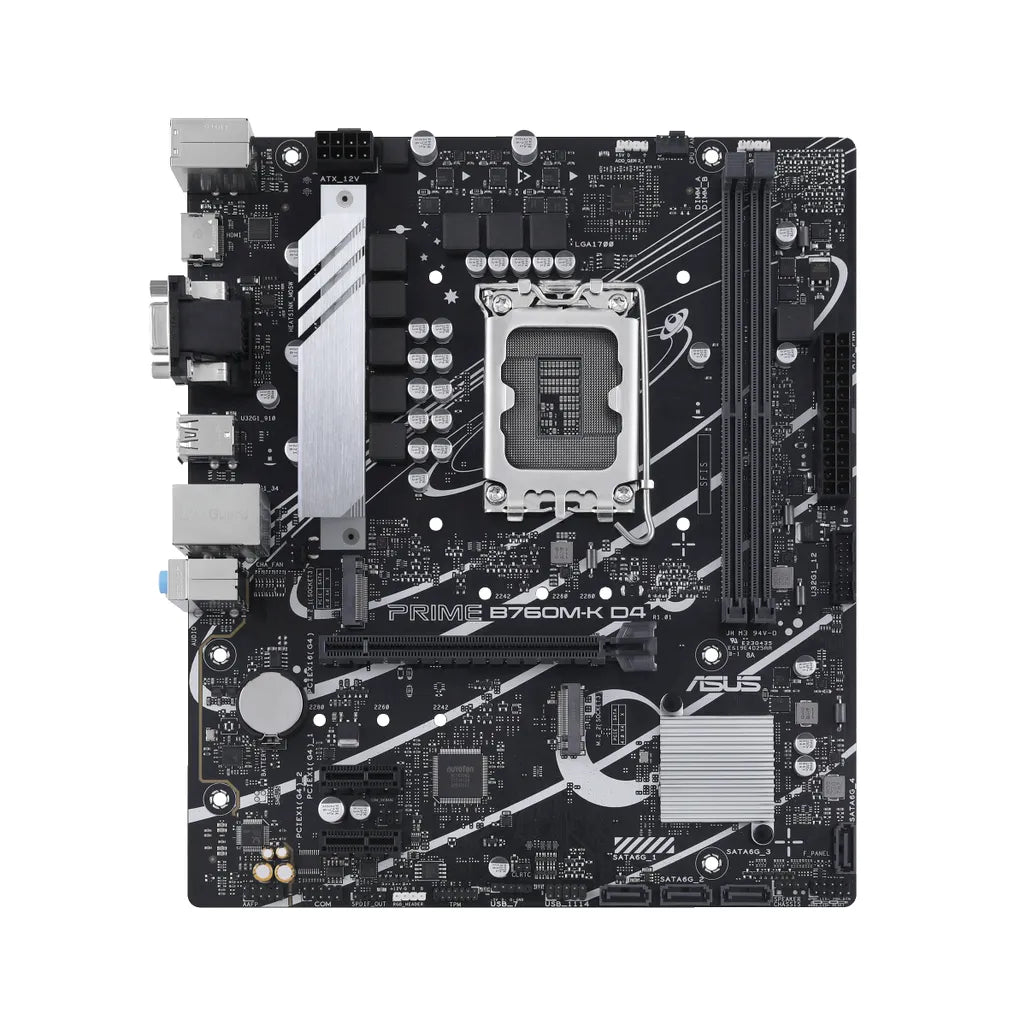

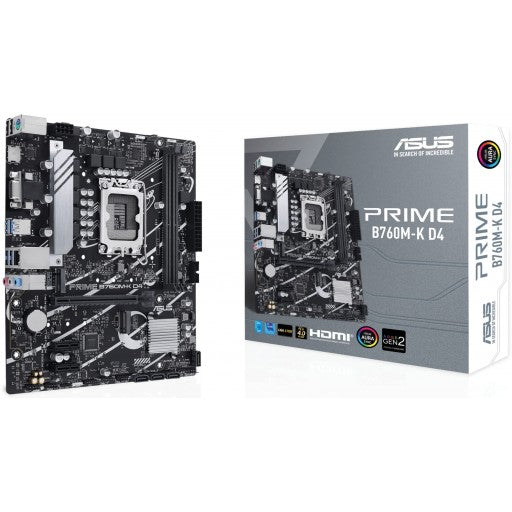

ASUS PRIME B760M-K D4 Intel B760 Raptor Lake Socket LGA 1700 Micro-ATX Desktop Motherboard
ASUS PRIME B760M-K D4 Intel B760 Raptor Lake Socket LGA 1700 Micro-ATX Desktop Motherboard
Regular price
R 2,509.00
Regular price
Sale price
R 2,509.00
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
| SPECIFICATIONS | |
| Brand | ASUS |
| Series | PRIME Series |
| Model | PRIME B760M-K D4 (90MB1DS0-M0EAY0) |
| CPU Support | Intel 12th & 13th Gen Processors |
| Chipset | Intel B760 |
| Memory Support | |
| Intel 12th & 13th Gen | 2 x DIMM, Max. 64GB, DDR4 |
| 5333(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory | |
| Dual Channel Memory Architecture | |
| Supports Intel Extreme Memory Profile (XMP) 2.0 | |
| Video | |
| HDMI | 1x HDMI 2.1 TMDS, supports HDCP 2.3 and max. resolution up to 4K 60Hz |
| VGA D-Sub | 1x VGA D-Sub Port, supports up to 2048×1536 resolution @ 60Hz |
| Integrated Intel graphics Required. Actual support may vary by CPU. | |
| Expansion Slots | |
| CPU Direct | 1x PCIe 4.0 x16 Physical, x16 Electrical Slot |
| Intel B760 Chipset | 2 x PCIe 4.0 x1 Physical Slots |
| Storage | |
| CPU Direct | 1x M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| Intel B760 Chipset | 1 x M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode) |
| 4 x SATA3 6.0 Gb/s Connectors | |
| Supports RAID 0 and RAID 1 for SATA storage devices | |
| Networking | |
| LAN | Realtek RTL8125BG 2.5 Gigabit LAN 10/100/1000/2500 Mb/s |
| WiFi | N/A |
| Bluetooth | N/A |
| Audio | |
| Codec | Realtek ALC897 High Definition 7.1 CH HD Audio |
| Supports Jack-detection, Multi-streaming, Front Panel Jack-retasking | |
| Supports up to 24-Bit/192 kHz playback | |
| Audio Shielding | |
| Premium audio capacitors | |
| Dedicated audio PCB layers | |
| Connectivity | |

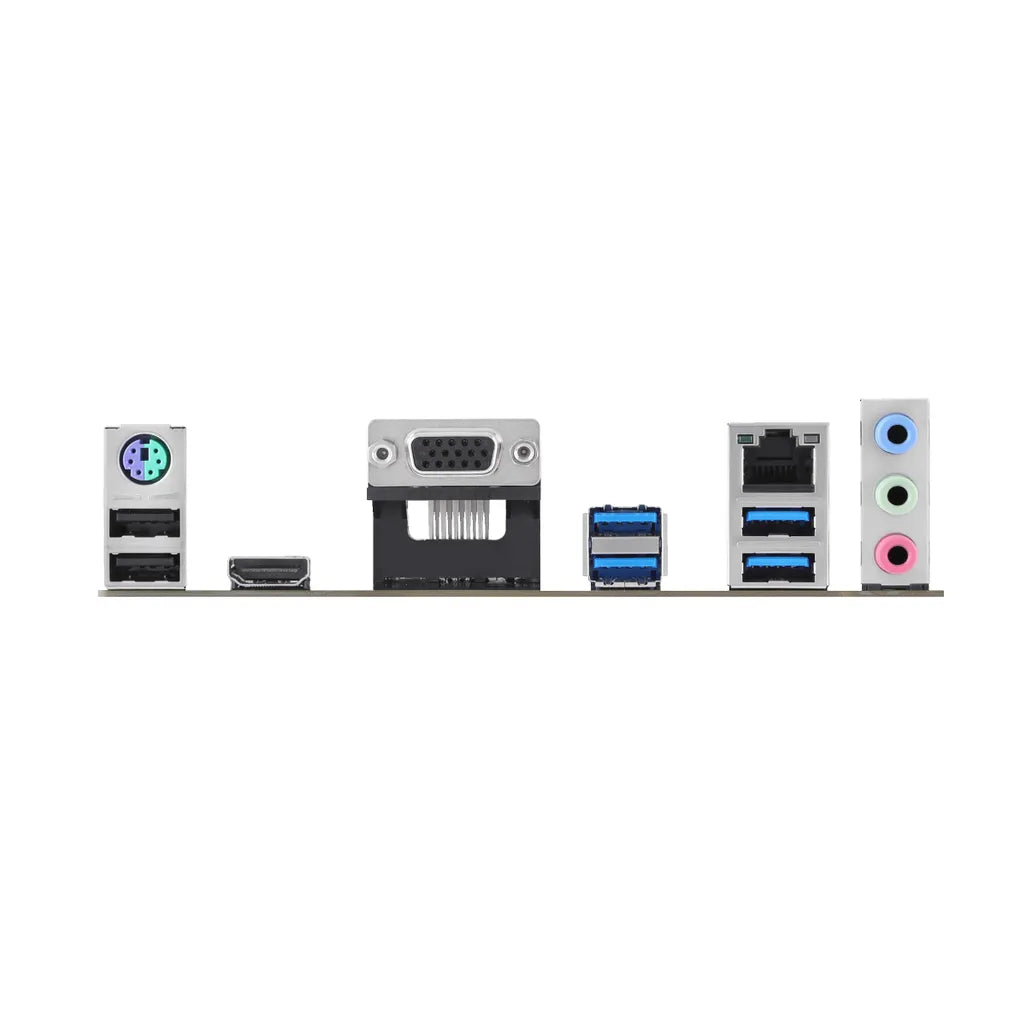

| Ports | 4x USB 3.2 Gen 1 ports (4 x Type-A) |
| 2x USB 2.0 ports (2 x Type-A) | |
| 1x VGA port | |
| 1x HDMI port | |
| 1x Realtek 2.5Gb Ethernet port | |
| 3x Audio jacks | |
| 1x PS/2 Keyboard/Mouse combo port | |
| Buttons | N/A |
| General | |
| Internal Connectors | 1x 4-pin CPU Fan header |
| 1x 4-pin Chassis Fan header | |
| 1x 24-pin Main Power connector | |
| 1x 8-pin 12V Power connector | |
| 2x M.2 slots (Key M) | |
| 4x SATA 6Gb/s ports | |
| 1x USB 3.2 Gen 1 header supports 2 additional USB 3.2 Gen 1 ports | |
| 2x USB 2.0 headers support 3 additional USB 2.0 ports | |
| 2x Addressable Gen 2 headers | |
| 1x Aura RGB header | |
| 1x Clear CMOS header | |
| 1x COM Port header | |
| 1x Front Panel Audio header (AAFP) | |
| 1x S/PDIF Out header | |
| 1x Speaker header | |
| 1x SPI TPM header (14-1pin) | |
| 1x 10-1 pin System Panel header | |
| LED Displays | N/A |
| BIOS | 128 Mb Flash ROM, UEFI AMI BIOS |
| Form Factor | Micro-ATX Form Factor, 244 x 211 mm (H x W) |
| Operating System Support | Windows 10 64-bit |
| Windows 11 64-bit | |
| Box Contents | 2x SATA 6Gb/s cables |
| 1x I/O Shield | |
| 2x M.2 anchors | |
| 1x User guide | |
| Warranty Information | |
| Warranty | 3 Year Warranty |
