| SPECIFICATIONS |
| Brand |
AOC |
| Series |
Gaming Series |
| Model |
24G4H |
| Display |
| Panel Size |
23.8" |
| Panel Type |
Fast IPS (In-Plane Switching) |
| Native Resolution |
Ful HD (1920x1080) |
| Display Surface |
Anti-Glare |
| Pixel Pitch |
0.2745 (H/V) |
| Brightness |
300 nits (typical) |
| Contrast Ratio |
1000:1 (typical) |
| Viewing Angles |
178°(H)/178°(V) |
| Response Time |
1ms Grey to Grey, 0.3ms MPRT |
| Display Colours |
16.7 Million colours |
| Colour Gamut |
NTSC 105% (CIE1976) / sRGB 126% (CIE1931) / DCI-P3 96% (CIE1976) |
| Performance |
| Supported Video Modes (HDMI) |
480p, 576p, 720p, 1080p (60Hz) |
| Refresh Rate |
Up to 200Hz (HDMI) |
| Up to 200Hz (DisplayPort) |
| Variable Refresh Technology |
Adaptive Sync Capable |
| AMD FreeSync & NVIDIA G-Sync Compatible |
| Variable Refresh Range |
48Hz to 200Hz (HDMI, FreeSync) |
| 48Hz to 200Hz (DisplayPort, G-Sync/FreeSync) |
| Console Support |
Yes, Full HD (1920x1080) 60Hz via HDMI |
| Xbox Series Consoles support FreeSync over HDMI |
| Certifications |
Low Blue Light & Flicker-Free solution |
| Physical |

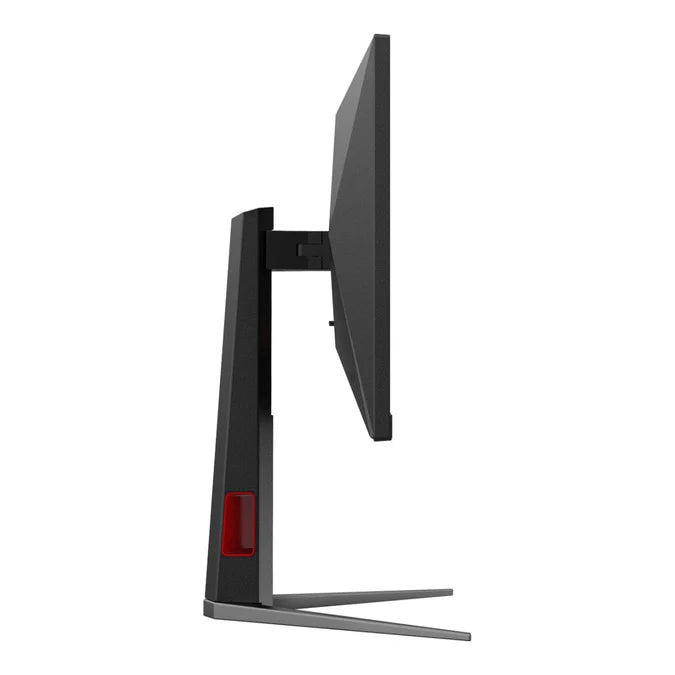

| Tilt |
-5° to 23° |
| Swivel |
-30° to 30° |

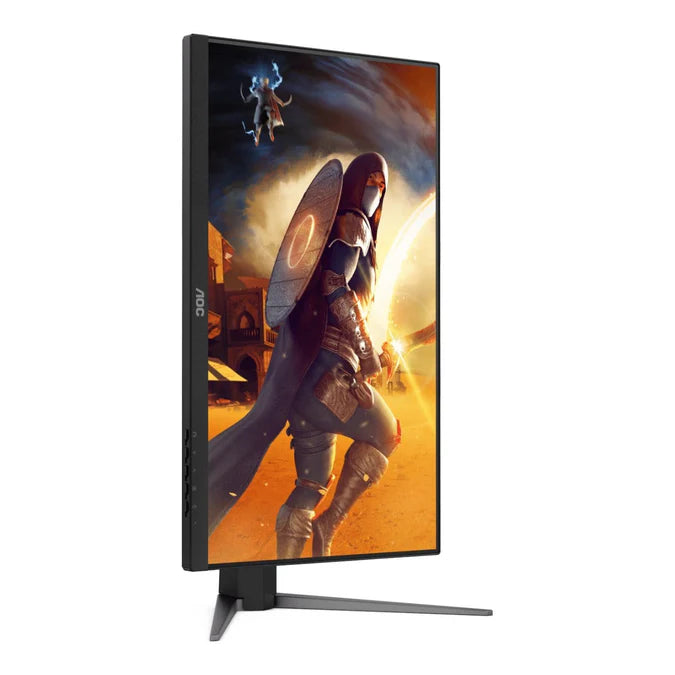

| Pivot |
90° to 90° |
| Height |
130mm range |
| Wall Mountable (VESA) |
100 x 100mm VESA Mount |
| Audio |
| Speakers |
N/A |
| Audio Output |
1x 3.5mm Line Out Audio Jack |
| Microphone Input |
N/A |

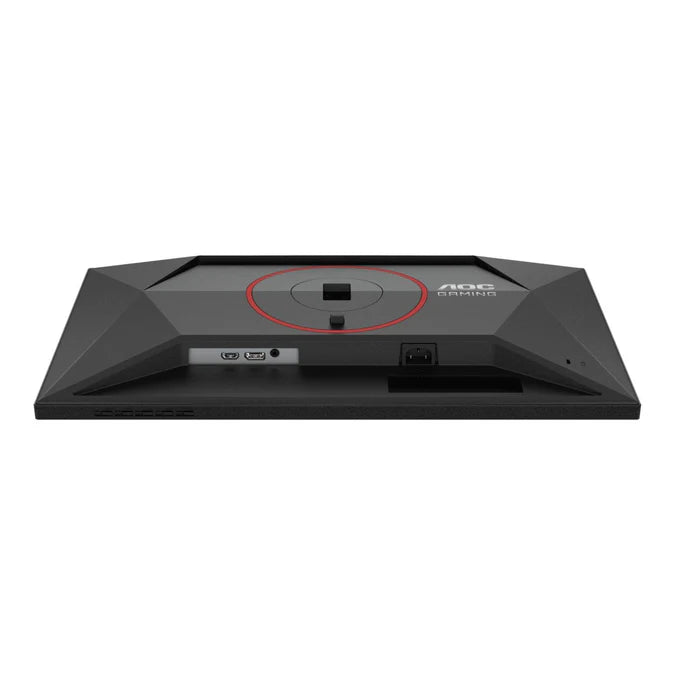

| Connectivity |
| Display Inputs |
1x HDMI 2.0b Port (HDCP 2.2, HDR, FreeSync) |
| 1x DisplayPort 1.4 Port (HDCP 2.2, HDR, FreeSync/G-Sync) |
| Power |
| Voltage Required |
100 to 240 VAC |
| Power Consumption |
22W (Power On, typical use) |
| < 0.3W (Standby) |
| General |
| Colour |
Black |
| Dimensions (with stand) |
540 x (382.1 - 495.1) x 240mm (W x H x D) |
| Dimensions (without stand) |
540 x 324.8 x 50.6mm (W x H x D) |
| Weight (with stand) |
3.93kg |
| Weight (without stand) |
2.49kg |
| Regulatory Approvals |
BSMI / KC / KCC / e-Standby / CE / CB / FCC / PSB / RoHS |
| Warranty Information |
| Warranty |
3 Year Warranty |
